XCKP2171N12 – Telemecanique
On order44,90 € excl. VAT
55,67 € incl. VAT

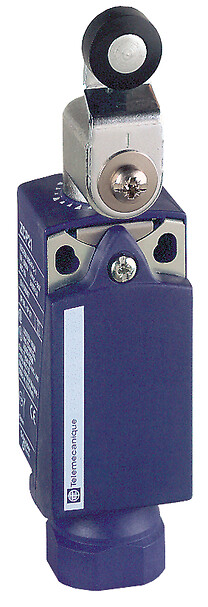

LIMIT SWITCH - PLASTIC WITH 1 NO AND 1 NC - Telemecanique
LIMIT SWITCH - PLASTIC WITH 1 NO AND 1 NC
SPECIFICATIONS
Main
Body type
Fixed
Device short name
XCKP
Series name
Standard format
Complementary
compatibility code
XCKP
Product certifications
CSACCCUL
Product or component type
Limit switch
cable entry
1 entry tapped for 1/2" NPT cable gland
Contacts insulation form
Zb
contact operation
Snap action
Contacts type and composition
1 NC + 1 NO
Electrical shock protection class
Class II conforming to IEC 61140, class II conforming to NF C 20-030
Fixing mode
By the body
body material
Plastic
Material
Plastic
Type of operator
Spring return roller lever thermoplastic
Ik degree of protection
IK04 conforming to IEC 62262
contact code designation
A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
head material
Zamak
repeat accuracy
0.1 mm on the tripping points with 1 million operating cycles
Positive opening
With
electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Switch actuation
By 30° cam
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Sensor design
Compact
Terminals description iso n°1
(21-22)NC(13-14)NO
Environment
ip degree of protection
IP66 conforming to IEC 60529, IP67 conforming to IEC 60529
Range of product
Telemecanique Limit switches XC Standard
standards
CSA C22.2 No 14UL 508IEC 60947-5-1IEC 60204-1
vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
protective treatment
TC
