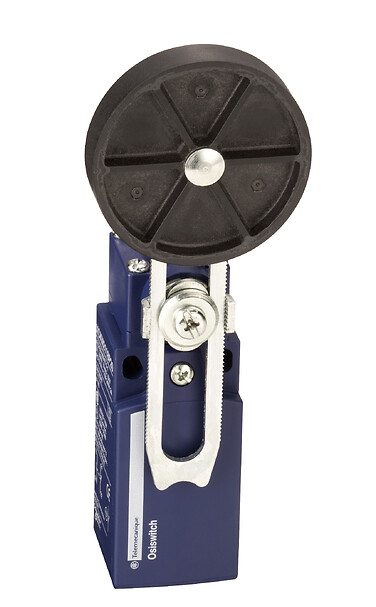

XCKN2149P20C - Limit switch, Limit switches XC Standard - Telemecanique - Limit switch, Limit switches XC Standard, XCKN, plastic roller lever Ø 50 var.length, 1NC+1 NO, snap, M20 - Telemecanique - 0
XCKN2149P20C - Limit switch, Limit switches XC Standard - Telemecanique - Limit switch, Limit switches XC Standard, XCKN, plastic roller lever Ø 50 var.length, 1NC+1 NO, snap, M20 - Telemecanique - 0

XCKN2149P20C – Telemecanique

On order
20,77 € excl. VAT
25,75 € incl. VAT
Limit switch, Limit switches XC Standard, XCKN, plastic roller lever Ø 50 var.length, 1NC+1 NO, snap, M20 - Telemecanique
 In cart
25,75 €
Limit switch, Limit switches XC Standard, XCKN, plastic roller lever Ø 50 var.length, 1NC+1 NO, snap, M20
SPECIFICATIONS
Main
Body type Fixed
Device short name XCKN
Series name Standard format
head type Rotary head
Complementary
Product certifications CCC
Product or component type Limit switch
cable entry 1 entry tapped for M20 x 1.5 cable gland, cable outer diameter: 7-13 mm
Contacts insulation form Zb
contact operation Snap action
Contacts type and composition 1 NC + 1 NO
Fixing mode By the body
body material Plastic
Material Plastic
Type of operator Spring return roller lever thermoplastic variable length, roller diameter 50 mm
Ik degree of protection IK04 conforming to IEC 62262
contact code designation A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A
head material Plastic
Positive opening With
electrical connection Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Movement of operating head Rotary
Switch actuation By 30° cam
Type of approach Lateral approach, 2 directions
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Sensor design Compact
Terminals description iso n°1 (21-22)NC(13-14)NO
Environment
ip degree of protection IP65 conforming to IEC 60529
Range of product Telemecanique Limit switches XC Standard
overvoltage category Class II conforming to IEC 61140, class II conforming to NF C 20-030
standards CSA C22.2 No 14UL 508IEC 60947-5-1IEC 60204-1
vibration resistance 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
protective treatment TC
