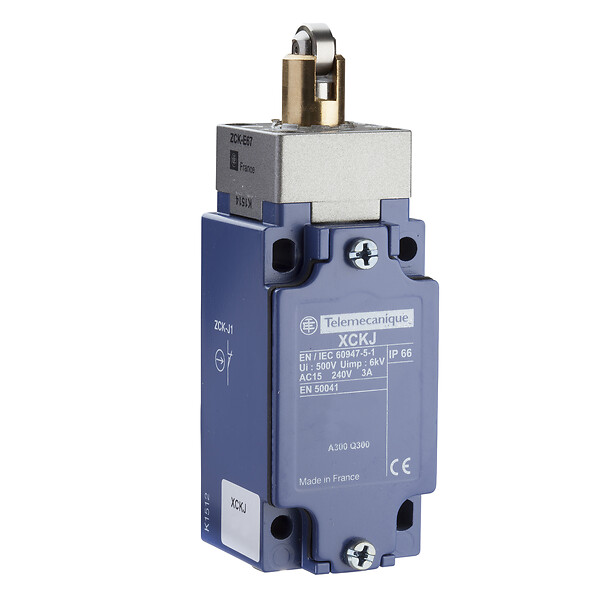

XCKJ40513H29 – Telemecanique
On order174,37 € excl. VAT
216,22 € incl. VAT
Limit switch, XC Standard, XCKJ, steel roller lever, 2 steps, 2xC/O snap M20 - Telemecanique
Limit switch, XC Standard, XCKJ, steel roller lever, 2 steps, 2xC/O snap M20
SPECIFICATIONS
Main
Device short name
XCKJ
Series name
Standard format
Complementary
Product or component type
Limit switch
cable entry
1 entry tapped for M20 x 1.5 cable gland, cable outer diameter: 7-13 mm
Contacts insulation form
Zb
contact operation
Snap action, simultaneous
Contacts type and composition
2 x 1 C/O
Material
Metal
Type of operator
Steel roller lever metal
Ik degree of protection
IK07 conforming to IEC 62262
Positive opening
Without
electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
Switch actuation
By 30° cam
Type of approach
Lateral approach, 1 or 2 programmable direction
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Terminals description iso n°1
(23-24)NO(21-22)NC(11-12)NC(13-14)NO
Environment
ip degree of protection
IP66 conforming to IEC 60529
Range of product
Telemecanique Limit switches XC Standard
overvoltage category
Class I conforming to IEC 61140, class I conforming to NF C 20-030
standards
CENELEC EN 50041IEC 60947-5-1IEC 60204-1
vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
protective treatment
TH
