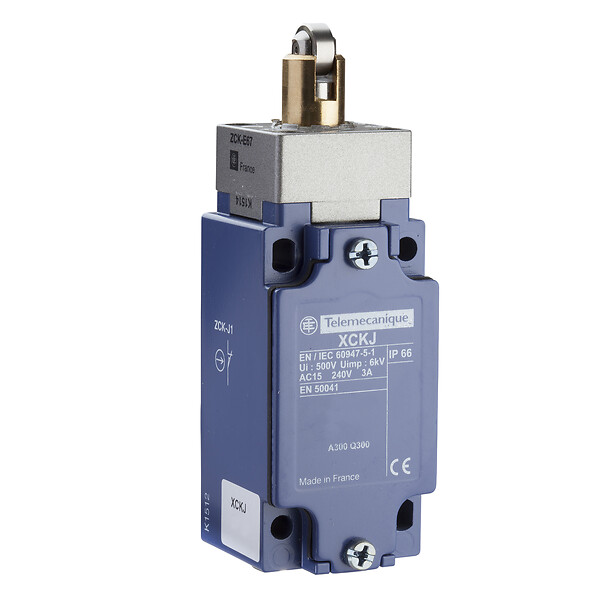

Limit switch XCKJ - steel roller plunger reinforced - 600 V AC - 10 A - Telemecanique
Limit switch XCKJ - steel roller plunger reinforced - 600 V AC - 10 A
SPECIFICATIONS
Main
Device short name
XCKJ
Series name
Standard format
Complementary
Product certifications
CSACCCUL
Product or component type
Limit switch
Contacts insulation form
Zb
contact operation
Snap action
Fixing mode
By the body
body material
Zamak
Material
Metal
Ik degree of protection
IK07 conforming to IEC 62262
head material
Zamak
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Terminals description iso n°1
(11-12)NC(13-14)NO
Environment
ip degree of protection
IP66 conforming to IEC 60529
Range of product
Telemecanique Limit switches XC Standard
overvoltage category
Class I conforming to IEC 61140, class I conforming to NF C 20-030
standards
CSA C22.2 No 14CENELEC EN 50041UL 508IEC 60947-5-1IEC 60204-1
vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
protective treatment
TH
