XCKJ105613H29TK – Telemecanique
On order89,49 € excl. VAT
110,97 € incl. VAT

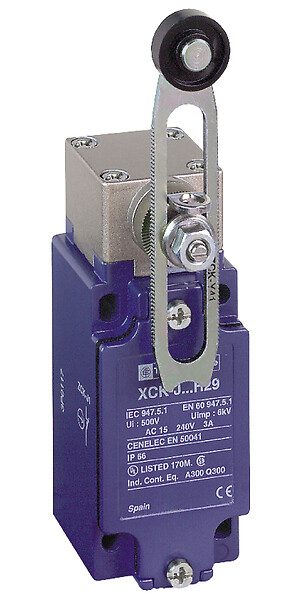

Limit switch, XC Standard, XCKJ, thermoplastic round rod lever 6 mm, 1NC+1 NO, snap, M20 - Telemecanique
Limit switch, XC Standard, XCKJ, thermoplastic round rod lever 6 mm, 1NC+1 NO, snap, M20
SPECIFICATIONS
Main
Body type
Fixed
Device short name
XCKJ
Series name
Standard format
head type
Rotary head
Complementary
Product certifications
CSACCCUL
Product or component type
Limit switch
cable entry
1 entry tapped for M20 x 1.5 cable gland, cable outer diameter: 7-13 mm
Contacts insulation form
Zb
contact operation
Snap action
Contacts type and composition
1 NC + 1 NO
Fixing mode
By the body
body material
Zamak
Material
Metal
Type of operator
Spring return round rod lever thermoplastic round rod 6 mm, L = 200 mm
Ik degree of protection
IK07 conforming to IEC 62262
head material
Zamak
Positive opening
Without
electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Movement of operating head
Rotary
Switch actuation
By any moving part
Type of approach
Lateral approach, 1 or 2 programmable direction
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Sensor design
Form D conforming to CENELEC EN 50041
Terminals description iso n°1
(21-22)NC(13-14)NO
Environment
ip degree of protection
IP66 conforming to IEC 60529
Range of product
Telemecanique Limit switches XC Standard
overvoltage category
Class I conforming to IEC 61140, class I conforming to NF C 20-030
standards
CSA C22.2 No 14CENELEC EN 50041UL 508IEC 60947-5-1IEC 60204-1
vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
protective treatment
TH
