XCKD3945G11 – Telemecanique
On order61,38 € excl. VAT
76,11 € incl. VAT

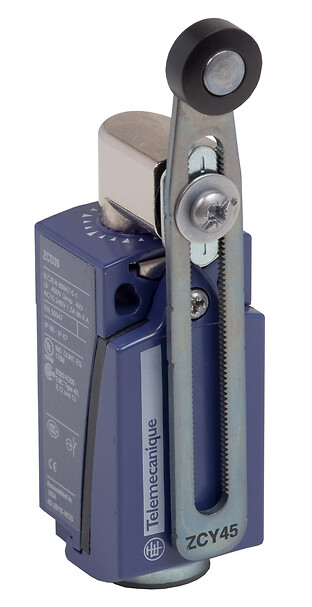

Limit switch, Inductive proximity sensors XS, XC, 240 VAC, 10 A, metal XCKD - Telemecanique
Limit switch, Inductive proximity sensors XS, XC, 240 VAC, 10 A, metal XCKD
SPECIFICATIONS
Main
head type
Rotary head
Complementary
Product certifications
CSACCCUL
Product or component type
Limit switch
contact operation
Snap action
Contacts type and composition
2 NC + 1 NO
Electrical shock protection class
Class I conforming to IEC 61140, class I conforming to NF C 20-030
Fixing mode
By the body
body material
Zamak
Material
Metal
head material
Zamak
Positive opening
With
electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 0.75 mm²
Switch actuation
By 30° cam
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Environment
Range of product
Telemecanique Limit switches XC Standard
standards
CSA C22.2 No 14UL 508IEC 60947-5-1IEC 60204-1
vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
protective treatment
TC
