XCKD2111P16 - Limit switch, Limit switches XC Standard - Telemecanique - Limit switch, Limit switches XC Standard, XCKD, metal end plunger with nitrile boot, 1NC+1 NO, snap, M16 - Telemecanique - 0
XCKD2111P16 - Limit switch, Limit switches XC Standard - Telemecanique - Limit switch, Limit switches XC Standard, XCKD, metal end plunger with nitrile boot, 1NC+1 NO, snap, M16 - Telemecanique - 0

XCKD2111P16 – Telemecanique

On order
22,96 € excl. VAT
28,47 € incl. VAT

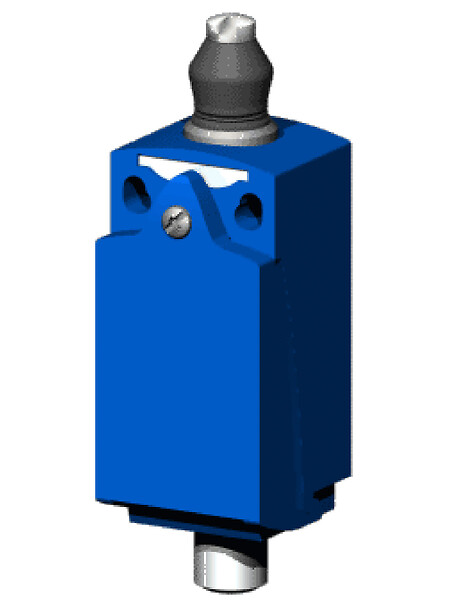

Limit switch, Limit switches XC Standard, XCKD, metal end plunger with nitrile boot, 1NC+1 NO, snap, M16 - Telemecanique
 In cart
28,47 €
Limit switch, Limit switches XC Standard, XCKD, metal end plunger with nitrile boot, 1NC+1 NO, snap, M16. This product is compatible with DE9RA1012
SPECIFICATIONS
Main
Body type Fixed
Device short name XCKD
Series name Standard format
head type Plunger head
Complementary
Product certifications CSACCCUL
Product or component type Limit switch
cable entry 1 entry tapped for M16 x 1.5 cable gland, cable outer diameter: 4-8 mm
Contacts insulation form Zb
contact operation Snap action
Contacts type and composition 1 NC + 1 NO
Electrical shock protection class Class I conforming to IEC 61140, class I conforming to NF C 20-030
Fixing mode By the body
body material Zamak
Material Metal
Type of operator Spring return roller plunger metal with nitrile boot
Ik degree of protection IK06 conforming to IEC 62262
contact code designation A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1, A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
head material Zamak
repeat accuracy 0.1 mm on the tripping points with 1 million operating cycles
Positive opening With
electrical connection Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Movement of operating head Linear
Switch actuation On end
Type of approach Vertical approach, 1 direction
Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27
Resistance across terminals 25 MOhm conforming to IEC 60255-7 category 3
Sensor design Compact
Terminals description iso n°1 (21-22)NC(13-14)NO
Environment
ip degree of protection IP66 conforming to IEC 60529, IP67 conforming to IEC 60529
Range of product Telemecanique Limit switches XC Standard
standards CSA C22.2 No 14UL 508IEC 60947-5-1IEC 60204-1
vibration resistance 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
protective treatment TC
