VM1VAQ – Telemecanique
On order208,24 € excl. VAT
258,22 € incl. VAT

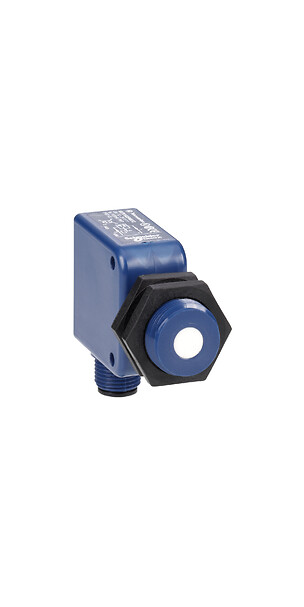

Hyde Park, ultrasonic sensor flat form + M18, Sn508mm, 0...10 V, M12 - Telemecanique
Hyde Park, ultrasonic sensor flat form + M18, Sn508mm, 0...10 V, M12
SPECIFICATIONS
Main
product specific application
Not applicable
Series name
Virtu VM1
Complementary
iso thread
M18 x 1
Product certifications
UL
[us] rated supply voltage
15...24 V DC with overload and short-circuit protection
Current consumption
40 mA
nema degree of protection
NEMA 4X (indoor use only)
marking
CE
Enclosure material
Valox
Material
Plastic
Front material
Glass epoxy
electrical connection
Male connector M12 4 pins
Minimum size of detected object
Cylinder diameter 2.5 mm - up to 200 mm sensing distance
Sensor type
Ultrasonic sensor
Shock resistance
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
Sensor design
Flat form + cylindrical M18
Status led
Off when object is within range: 1 LED (green)
Wiring technique
4-wire
Type of output signal
Analog
Type of sensing window
Adjustable
Environment
ip degree of protection
IP67
Range of product
Hyde Park
vibration resistance
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
