VM1VA1000 – Telemecanique
On order224,37 € excl. VAT
278,22 € incl. VAT

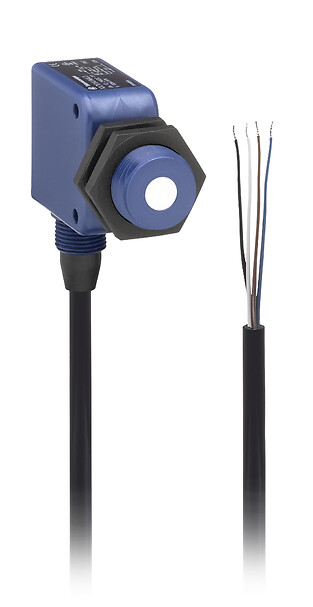

Hyde Park, Ultrasonic sensor, analog, voltage (V), 18 mm snout dual mount, 15 24 V DC - Telemecanique
Hyde Park, Ultrasonic sensor, analog, voltage (V), 18 mm snout dual mount, 15 24 V DC
SPECIFICATIONS
Main
Series name
Virtu VM1
Complementary
iso thread
M18 x 1
Product certifications
UL
[us] rated supply voltage
15...24 V DC with overload and short-circuit protection
Current consumption
40 mA
nema degree of protection
NEMA 4X (indoor use only)
marking
CE
Enclosure material
Valox
Material
Plastic
Front material
Glass epoxy
electrical connection
Cable, 3 m cable length
Minimum size of detected object
Cylinder diameter 2.5 mm - up to 200 mm sensing distance
Sensor type
Ultrasonic sensor
Shock resistance
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
Sensor design
Flat form + cylindrical M18
Wiring technique
4-wire
Type of output signal
Analog
Type of sensing window
Adjustable
Environment
ip degree of protection
IP67
Range of product
Hyde Park
vibration resistance
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
