VM18PNO58ADQ – Telemecanique
On order239,79 € excl. VAT
297,34 € incl. VAT

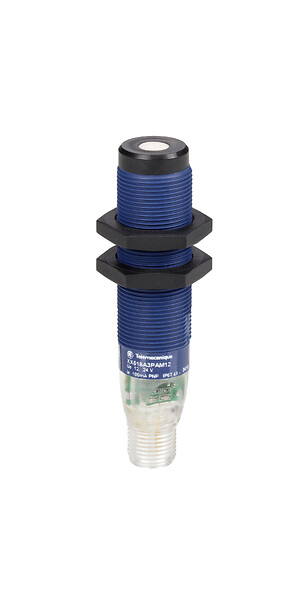

Hyde Park, Ultrasonic sensor, discrete, 18 mm barrel, 12 24 V DC - Telemecanique
Hyde Park, Ultrasonic sensor, discrete, 18 mm barrel, 12 24 V DC
SPECIFICATIONS
Main
product specific application
Not applicable
Series name
Virtu VM18
Complementary
iso thread
M18 x 1
Product certifications
UL
[us] rated supply voltage
12...24 V DC with overload and short-circuit protection
Current consumption
40 mA
nema degree of protection
NEMA 4X (indoor use only)
marking
CE
Discrete output function
1 NO
Enclosure material
PBT
Material
Plastic
Discrete output type
PNP
Front material
Glass epoxy
electrical connection
Male connector M12 4 pins
Minimum size of detected object
Cylinder diameter 2.5 mm - up to 200 mm sensing distance
Sensor type
Ultrasonic sensor
Shock resistance
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
Sensor design
Cylindrical M18
Wiring technique
4-wire
Type of output signal
Discrete
Type of sensing window
Fixed
Environment
ip degree of protection
IP67
Range of product
Hyde Park
vibration resistance
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
