SM956A700000STS – Telemecanique
On order2 073,62 € excl. VAT
2 571,28 € incl. VAT

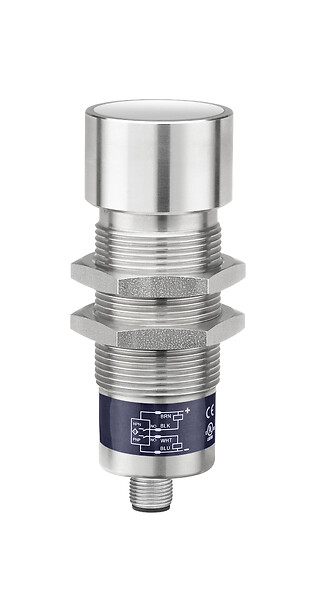

Hyde Park, Ultrasonic sensor, analog, voltage (V), 30 mm barrel, 15 24 V DC - Telemecanique
Hyde Park, Ultrasonic sensor, analog, voltage (V), 30 mm barrel, 15 24 V DC
SPECIFICATIONS
Main
product specific application
Analog output
Series name
Superprox 900
Complementary
iso thread
M30 x 1.5
Product certifications
UL
[us] rated supply voltage
15...24 V DC with overload and short-circuit protection
Current consumption
80 mA
nema degree of protection
NEMA 4X (indoor use only)
marking
CE
Enclosure material
Stainless steel 303
Material
Stainless steel
Front material
Stainless steel 304
electrical connection
Male connector M12 4 pins
Minimum size of detected object
Cylinder diameter 1.6 mm - up to 305 mm sensing distance
Sensor type
Ultrasonic sensor
Shock resistance
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
Sensor design
Cylindrical M30
Wiring technique
4-wire
Type of output signal
Analog
Type of sensing window
Adjustable
Environment
ip degree of protection
IP67
Range of product
Hyde Park
vibration resistance
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
