SM952A137004 – Telemecanique
On order1 629,98 € excl. VAT
2 021,18 € incl. VAT

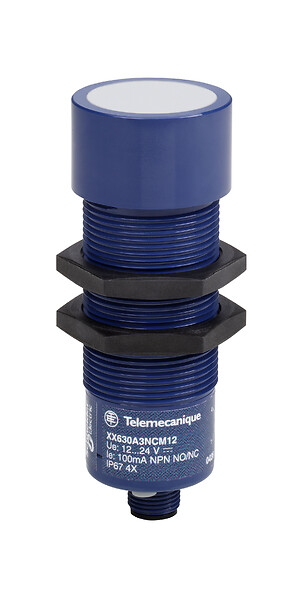

Hyde Park, Ultrasonic sensor, dual level, alarm, 30 mm barrel, 12 24 V DC - Telemecanique
Hyde Park, Ultrasonic sensor, dual level, alarm, 30 mm barrel, 12 24 V DC
SPECIFICATIONS
Main
product specific application
Dual-level - alarm
Series name
Superprox 900
Complementary
iso thread
M30 x 1.5
Product certifications
UL
[us] rated supply voltage
12...24 V DC with overload and short-circuit protection
Current consumption
100 mA
nema degree of protection
NEMA 4X (indoor use only)
marking
CE
Discrete output function
1 NO
Enclosure material
ULTEM
Material
Plastic
Discrete output type
PNP
Front material
Silicone rubber
electrical connection
Male connector M12 4 pins
Minimum size of detected object
Cylinder diameter 1.6 mm - up to 305 mm sensing distance
Sensor type
Ultrasonic sensor
Shock resistance
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
Sensor design
Cylindrical M30
Wiring technique
4-wire
Type of output signal
Discrete
Type of sensing window
Adjustable
Environment
ip degree of protection
IP67
Range of product
Hyde Park
vibration resistance
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
