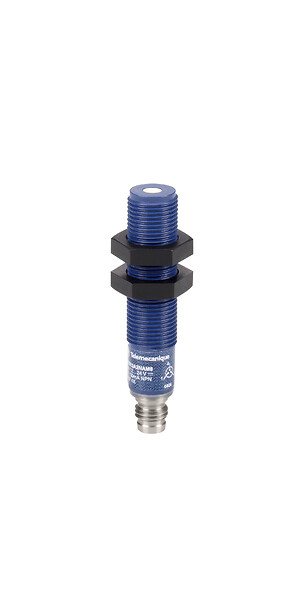

SM350AH20A1 – Telemecanique
On order348,98 € excl. VAT
432,73 € incl. VAT
Hyde Park, Ultrasonic sensor, discrete, 12 mm barrel, 12 24 V DC - Telemecanique
Hyde Park, Ultrasonic sensor, discrete, 12 mm barrel, 12 24 V DC
SPECIFICATIONS
Main
product specific application
Discrete proximity
Series name
Superprox 300
Complementary
iso thread
M12 x 1
Product certifications
UL
[us] rated supply voltage
12...24 V DC with overload and short-circuit protection
Current consumption
25 mA
nema degree of protection
NEMA 4X (indoor use only)
marking
CE
Enclosure material
ULTEM
Material
Plastic
Front material
Glass epoxy
electrical connection
Male connector M8 4 pins
Minimum size of detected object
Cylinder diameter 2.5 mm - up to 1 mm sensing distance
Sensor type
Ultrasonic sensor
Shock resistance
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
Sensor design
Cylindrical M12
Wiring technique
4-wire
Type of output signal
Discrete
Type of sensing window
Fixed
Environment
ip degree of protection
IP67
Range of product
Hyde Park
vibration resistance
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
