SC300A500FP – Telemecanique
On order236,85 € excl. VAT
293,69 € incl. VAT

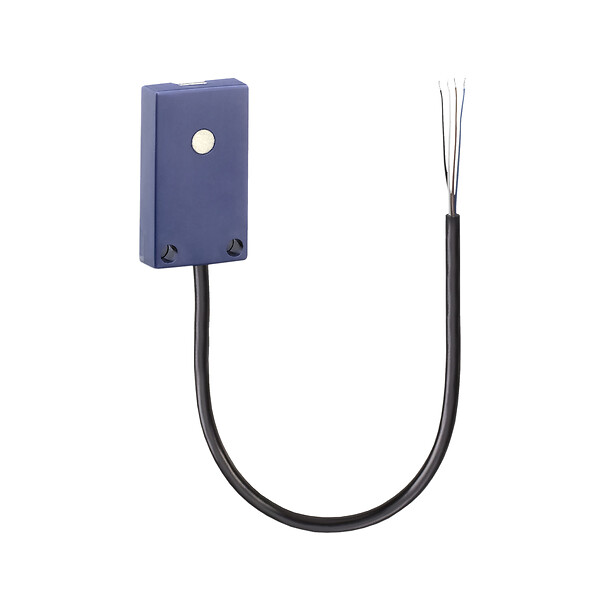

Hyde Park, Ultrasonic sensor, discrete, flat profile, 12 24 V DC - Telemecanique
Hyde Park, Ultrasonic sensor, discrete, flat profile, 12 24 V DC
SPECIFICATIONS
Main
product specific application
Discrete proximity
Series name
Superprox +
Complementary
Product certifications
UL
[us] rated supply voltage
12...24 V DC with overload and short-circuit protection
Current consumption
25 mA
nema degree of protection
NEMA 4X (indoor use only)
marking
CE
Enclosure material
ULTEM
Material
Plastic
Front material
Glass epoxy
electrical connection
Cable, 3 m cable length
Minimum size of detected object
Cylinder diameter 2.5 mm - up to 1 mm sensing distance
Sensor type
Ultrasonic sensor
Shock resistance
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
Sensor design
Flat form
Wiring technique
4-wire
Type of output signal
Discrete
Type of sensing window
Configurable
Environment
ip degree of protection
IP67
Range of product
Hyde Park
vibration resistance
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
