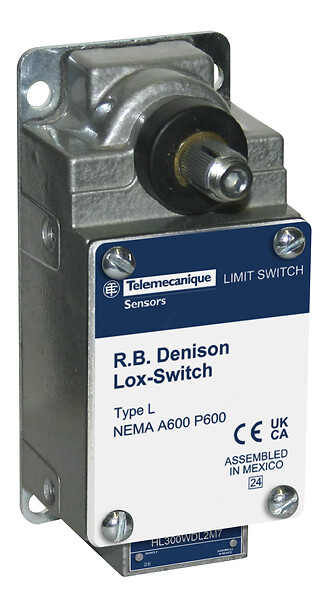

L300WNC2M18 - Limit switch, L100/300 - Telemecanique - Limit switch, L100/300, L300 foundry 2 contacts, spring return, CW+CCW, 1/2
L300WNC2M18 - Limit switch, L100/300 - Telemecanique - Limit switch, L100/300, L300 foundry 2 contacts, spring return, CW+CCW, 1/2

L300WNC2M18 – Telemecanique

On order
598,86 € excl. VAT
742,59 € incl. VAT
Limit switch, L100/300, L300 foundry 2 contacts, spring return, CW+CCW, 1/2" NPT - Telemecanique
 In cart
742,59 €
Limit switch, L100/300, L300 foundry 2 contacts, spring return, CW+CCW, 1/2" NPT
SPECIFICATIONS
Main
Body type Fixed
Device short name L300L100
product specific application Foundry switch
Series name Severe duty foundry
switch function DPST-NC-DB
head type Rotary head
Complementary
Product or component type Limit switch
nema degree of protection NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250
cable entry 1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1
Contacts material 90/10 AgCdO on copper backing stationary contact, silver on steel backing moveable contact
contact operation Slow-break, break before make
Contacts type and composition 2 NC
Electrical shock protection class Class 0 conforming to IEC 61140
Fixing mode By the body
body material Cast aluminium
function available Neutral position
Type of operator spring return without operating lever
contact code designation A600, AC (Ue = 600 V) Ie = 1.2 A conforming to NEMA rating designation, A600, AC (Ue = 480 V) Ie = 1.5 A conforming to NEMA rating designation, A600, AC (Ue = 240 V) Ie = 3 A conforming to NEMA rating designation, A600, AC (Ue = 120 V) Ie = 6 A conforming to NEMA rating designation
Contacts usage Not applicable
Positive opening Without
electrical connection Screw-clamp terminals AWG 22...AWG 12
Switch actuation CW and CCWfrom left or right
Type of approach Lateral approach
Shock resistance 30 gn for 9 ms conforming to IEC 60068-2-27
Terminals description iso n°1 (3-4) right side contact(1-2) left side contact
Environment
ip degree of protection IP67 conforming to IEC 60529
Range of product L100/300
vibration resistance 10 gn (f= 10-55 Hz) conforming to IEC 60068-2-6
protective treatment Corrosion resistant gray paint
