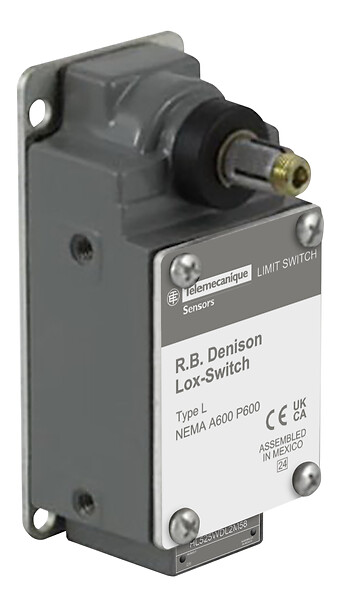

HL525WDR2M59 - Limit switch, L525 - Telemecanique - Limit switch, L525, L100/300, 9007, - Telemecanique - 0
HL525WDR2M59 - Limit switch, L525 - Telemecanique - Limit switch, L525, L100/300, 9007, - Telemecanique - 0

HL525WDR2M59 – Telemecanique

On order
905,60 € excl. VAT
1 122,94 € incl. VAT
Limit switch, L525, L100/300, 9007, - Telemecanique
 In cart
1 122,94 €
Limit switch, L525, L100/300, 9007,
SPECIFICATIONS
Main
Body type Fixed
Device short name L525
product specific application Belt conveyor switch
Series name Severe duty mill
switch function DPST-NC-DB
head type Rotary head
Complementary
Product or component type Limit switch
nema degree of protection NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250
cable entry 1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1
Contacts material 90/10 AgCdO on copper backing stationary contact, silver on steel backing moveable contact
contact operation Snap action
Contacts type and composition 2 NC
Electrical shock protection class Class 0 conforming to IEC 61140
Fixing mode By the body
body material Cast aluminium
function available 2 stages sequential
Type of operator spring return without operating lever
contact code designation A600, AC (Ue = 600 V) Ie = 5 A conforming to NEMA rating designation, A600, AC (Ue = 480 V) Ie = 6.25 A conforming to NEMA rating designation, A600, AC (Ue = 240 V) Ie = 12.5 A conforming to NEMA rating designation, A600, AC (Ue = 120 V) Ie = 20 A conforming to NEMA rating designation, P600, DC (Ue = 600 V) Ie = 0.2 A conforming to NEMA rating designation, P600, DC (Ue = 250 V) Ie = 1 A conforming to NEMA rating designation, P600, DC (Ue = 120 V) Ie = 5 A conforming to NEMA rating designation
Contacts usage Not applicable
Positive opening Without
electrical connection Screw-clamp terminals AWG 22...AWG 12
Switch actuation CCWfrom right
Type of approach Lateral approach
Shock resistance 30 gn for 9 ms conforming to IEC 60068-2-27
Terminals description iso n°1 (3-4) right side contact(5-6) left side contact
Environment
ip degree of protection IP67 conforming to IEC 60529
Range of product L525
vibration resistance 10 gn (f= 10-55 Hz) conforming to IEC 60068-2-6
protective treatment Corrosion resistant gray paint
