9038DW7 – Telemecanique
On order1 477,42 € excl. VAT
1 832,01 € incl. VAT

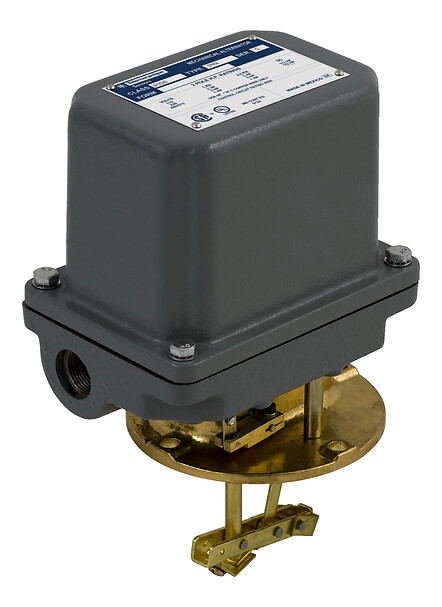

Mechanical alternator, Pumptrol, mech closed tank, NEMA 4, flange top mounted, 4 NC DPST DB contacts - Telemecanique
Mechanical alternator, Pumptrol, mech closed tank, NEMA 4, flange top mounted, 4 NC DPST DB contacts
SPECIFICATIONS
Main
Device short name
9038D
product specific application
Mechanically alternating the operation of two pumps or motors
device mounting
Flange
controlled fluid
Fresh water at specific gravity of 0.85 in or higher 0-220 °F, sea water at specific gravity of 0.85 in or higher 0-220 °F, hydraulic oil at specific gravity of 0.85 in or higher 0-220 °F, corrosive fluid at specific gravity of 0.85 in or higher 0-220 °F
Type of packing
Individual
Complementary
Kit composition
Rod and float are to be choosen in accessoriesfloat switch
Product certifications
CSAUL listed
Product or component type
Mechanical alternator
nema degree of protection
NEMA 4 conforming to UL 50
Quantity per set
Set of 1
Device application
Top mounted closed tank
Enclosure material
Cast aluminium
contact operation
Contacts close on liquid rise
Contacts type and composition
4 NC, snap action, DPST-DB, Form YY
Electrical circuit type
Power circuit
Local signalling
Without
Operating position
Vertical position only
terminal block type
8 terminals
Materials in contact with fluid
Yellow brassstainless steel 316stainlesss steel 304nitrile (Buna-N) or equivalent rubber
electrical connection
Screw-clamp terminals, clamping capacity: 10 AWG
Operating rate
60 CYCLE_PER_MINUTE
Product destination
For closed tank
Terminals description iso n°1
Line-load-load-line
Environment
Range of product
Pumptrol
standards
CEUL 508
