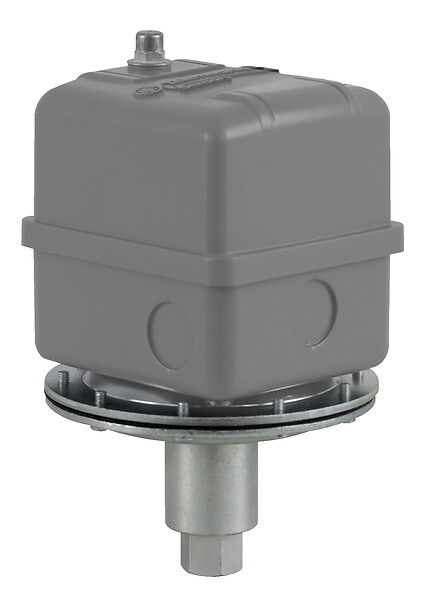

Electromechanical vacuum switch, 9016GVG, adjustable scale, 2 thresholds, Set 3 to 8 InHg - Telemecanique
Electromechanical vacuum switch, 9016GVG, adjustable scale, 2 thresholds, Set 3 to 8 InHg
SPECIFICATIONS
Main
Device short name
9016GVG
pressure actuator
Diaphragm nitrile (Buna-N)
Fluid connection type
0.25 inch 18 NPSF conforming to UL 508
controlled fluid
Air (-40-250 °F), water (-40-250 °F), hydraulic oil (-40-250 °F), gas (-40-250 °F)
Complementary
local display
Without
Product certifications
CSAUL listed
Product or component type
Electromechanical vacuum switch
nema degree of protection
NEMA 1 conforming to UL 698
Device application
Power circuit application
Enclosure material
Stamped metal
Contacts type and composition
2 NC, DPST-DB, Form YY, snap action, silver cadmium contacts
Electrical circuit type
Power circuit
maximum pressure
100 psi
setting
Internal
Operating position
Any position
terminal block type
8 screw terminals
cover material
Polypropylene, noryl thermoplastic resin or equivalent
repeat accuracy
0.025
Materials in contact with fluid
Zinc plated steelnitrile (Buna-N)3M Scotch-Grip 847 rubber and gasket adhesive
electrical connection
Screw-clamp terminals AWG 22...AWG 12
Operating rate
100 cyc/mn
Value of setting
3...8 inHg
Scale type
Adjustable
Environment
Range of product
9016GVG
standards
UL 508
protective treatment
None
