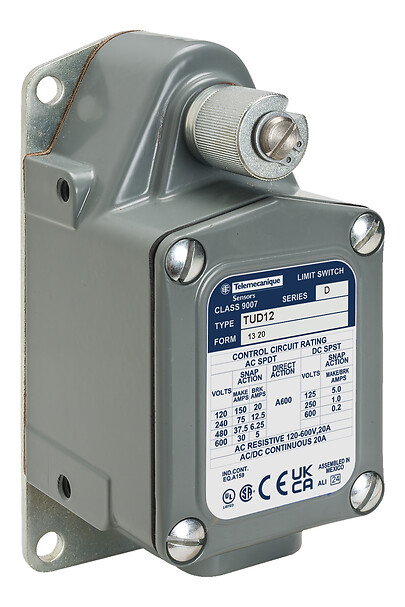

9007TUD12 - Limit switch, 9007, 9007FT mill universal, spring return, CW+CCW, 1/2
9007TUD12 - Limit switch, 9007, 9007FT mill universal, spring return, CW+CCW, 1/2

9007TUD12 – Telemecanique

On order
717,42 € excl. VAT
889,61 € incl. VAT
Limit switch, 9007, 9007FT mill universal, spring return, CW+CCW, 1/2" NPT - Telemecanique
 In cart
889,61 €
Limit switch, 9007, 9007FT mill universal, spring return, CW+CCW, 1/2" NPT
SPECIFICATIONS
Main
Body type Fixed
Device short name 9007T/FT
Series name Severe duty mill
switch function SPDT-DB
head type Rotary head
Complementary
Product or component type Limit switch
nema degree of protection NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250
cable entry 1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1
Contacts material Silver flashed copper
Device application Universal mill switch
contact operation Snap action
Electrical shock protection class Class 0 conforming to IEC 61140
Fixing mode By the body
body material Cast zinc
function available Not applicable
Type of operator Spring return without operating lever
contact code designation A600, AC (Ue = 600 V) Ie = 5 A conforming to NEMA rating designation, A600, AC (Ue = 480 V) Ie = 6.25 A conforming to NEMA rating designation, A600, AC (Ue = 240 V) Ie = 12.5 A conforming to NEMA rating designation, A600, AC (Ue = 120 V) Ie = 20 A conforming to NEMA rating designation, P600, DC (Ue = 600 V) Ie = 0.2 A conforming to NEMA rating designation, P600, DC (Ue = 250 V) Ie = 1 A conforming to NEMA rating designation, P600, DC (Ue = 120 V) Ie = 5 A conforming to NEMA rating designation
Contacts usage Maintained
repeat accuracy +/- 0.004 in linear travel of cam on 1.5 in lever arm
Positive opening Without
electrical connection Screw-clamp terminals AWG 22...AWG 12
Movement of operating head Rotary
Switch actuation CW and CCWfrom left or right
Type of approach Lateral approach
Shock resistance 30 gn for 9 ms conforming to IEC 60068-2-27
Terminals description iso n°1 A (left side contact)B (right side contact)
Environment
ip degree of protection IP67 conforming to IEC 60529
Range of product 9007
vibration resistance 10 gn (f= 10-55 Hz) conforming to IEC 60068-2-6
protective treatment Corrosion resistant gray paint
