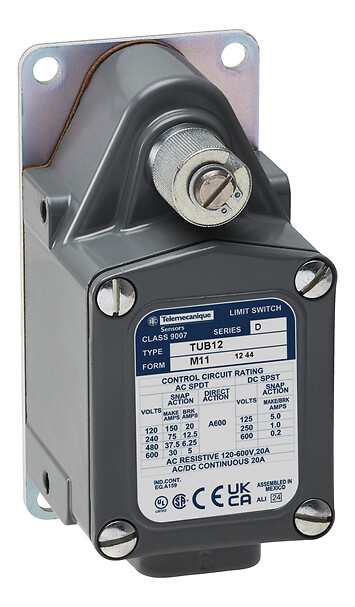

Limit switch, 9007, 600 VAC 30amp t +options - Telemecanique
Limit switch, 9007, 600 VAC 30amp t +options
SPECIFICATIONS
Main
Device short name
T
Series name
Severe duty
switch function
SPDT-DB
head type
Rotary head
Complementary
Product certifications
CSACEUL listed
nema degree of protection
NEMA 1/2/4/12/13
cable entry
NPT conduit entry, cable outer diameter: 0.5-0.5 in conforming to UL 508
Contacts material
Silver flashed copper
Device application
Heavy dutystandard mill switchuniversal mill switch
contact operation
Snap action
Electrical shock protection class
Class 0
body material
Cast zinc
Type of operator
Spring return lever arm to be ordered separately
contact code designation
A600, Q600
repeat accuracy
+/- 0.004 in 0.1 mm
Positive opening
Without
electrical connection
Screw clamp terminal AWG 22...AWG 12
Switch actuation
CW
Shock resistance
30 gn
Environment
ip degree of protection
IP65, IP66, IP67
vibration resistance
10 gn (f= 10-55 Hz)
protective treatment
Corrosion resistant gray paint
