9007MS10S0054 – Telemecanique
On order314,16 € excl. VAT
389,56 € incl. VAT

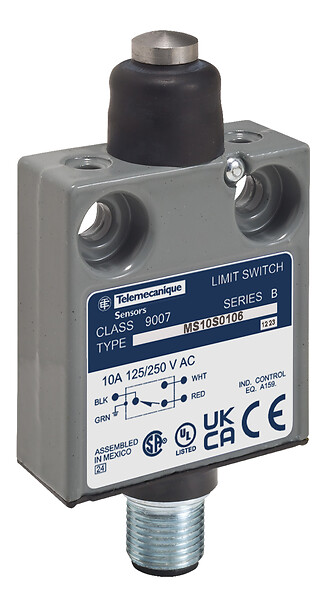

Limit switch, 9007, 240 VAC 10 A t ms - Telemecanique
Limit switch, 9007, 240 VAC 10 A t ms
SPECIFICATIONS
Main
Body type
Fixed
Device short name
9007MS/ML
Series name
Miniature potted
switch function
SPDT
head type
Plunger head
Complementary
Product certifications
CSACEUL
Product or component type
Limit switch
nema degree of protection
NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 6 conforming to Nema type 250, NEMA 6P conforming to Nema type 250
marking
CSACEUL
Contacts material
Silver contacts
contact operation
Snap action
Contacts type and composition
NC-NO
Fixing mode
By the body
body material
Cast zinc
Material
Metal
Type of operator
Spring return plunger stainless steel booted
Positive opening
Without
electrical connection
Male connector M12 micro DC type 4 pins bottom
Movement of operating head
Linear
Switch actuation
On end
Type of approach
Vertical approach, 1 direction
Shock resistance
35 gn for 9 ms conforming to IEC 60068-2-27
Sensor design
Miniature
Terminals description iso n°1
(1)gnd(3-4)NC(2-4)NO
Environment
ip degree of protection
IP67 conforming to IEC 60529
Range of product
9007
standards
LR 25490 Class 32 11 03E78403
vibration resistance
10 gn (f= 75-1200 Hz) conforming to IEC 60529
protective treatment
Epoxy powder coat
