9007MS09S1300 – Telemecanique
On order446,19 € excl. VAT
553,28 € incl. VAT

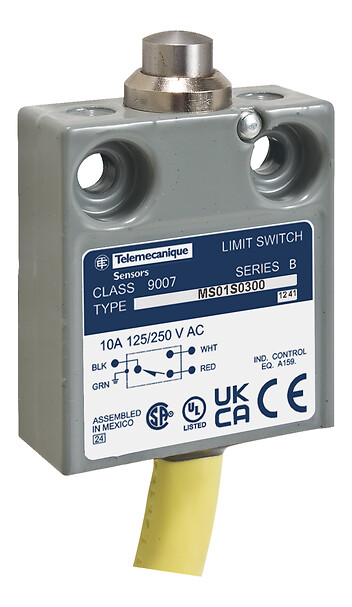

Limit switch, 9007, ms top push plunger, adjustable, 33' bottom cable - Telemecanique
Limit switch, 9007, ms top push plunger, adjustable, 33' bottom cable
SPECIFICATIONS
Main
Body type
Fixed
Device short name
9007MS/ML
Series name
Miniature potted
switch function
SPDT
head type
Plunger head
Complementary
Product certifications
CSACEUL
Product or component type
Limit switch
nema degree of protection
NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 6 conforming to Nema type 250, NEMA 6P conforming to Nema type 250
marking
CSACEUL
Contacts material
Silver contacts
contact operation
Snap action
Contacts type and composition
NC-NO
Fixing mode
By the body
body material
Cast zinc
Material
Metal
Type of operator
Spring return plunger stainless steel adjustable
Positive opening
Without
electrical connection
Pre-wired cable bottom
Movement of operating head
Linear
Switch actuation
On end
Type of approach
Vertical approach, 1 direction
Shock resistance
35 gn for 9 ms conforming to IEC 60068-2-27
Sensor design
Miniature
Terminals description iso n°1
(black)com(red)NC(green-yellow)gnd(white)NO
Wire insulation material
PVC
Type of cable
SJTO cable (AWG 18), 33 ft, yellow
Environment
ip degree of protection
IP67 conforming to IEC 60529
Range of product
9007
standards
LR 25490 Class 32 11 03E78403
vibration resistance
10 gn (f= 75-1200 Hz) conforming to IEC 60068-2-6
protective treatment
Epoxy powder coat
