9007MS02S0121 – Telemecanique
On order234,69 € excl. VAT
291,01 € incl. VAT

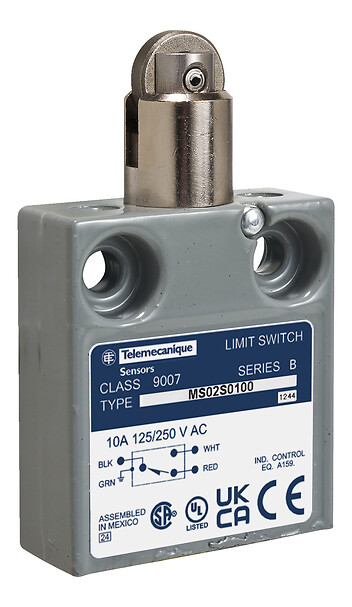

Limit switch, 9007, ms parallel roller plunger, 3' bottom cable - Telemecanique
Limit switch, 9007, ms parallel roller plunger, 3' bottom cable
SPECIFICATIONS
Main
Body type
Fixed
Device short name
9007MS/ML
Series name
Miniature potted
switch function
SPDT
head type
Plunger head
Complementary
Product certifications
CSACEUL
Product or component type
Limit switch
nema degree of protection
NEMA 1 conforming to Nema type 250
marking
CSACEUL
Contacts material
Silver contacts
contact operation
Snap action
Contacts type and composition
NC-NO
Fixing mode
By the body
body material
Cast zinc
Material
Metal
Type of operator
Spring return parallel roller plunger steel low force
Positive opening
Without
electrical connection
Pre-wired cable bottom
Movement of operating head
Linear
Switch actuation
By 30° cam
Type of approach
Lateral approach, 2 directions
Shock resistance
35 gn for 9 ms conforming to IEC 60068-2-27
Sensor design
Miniature
Terminals description iso n°1
(black)com(red)NC(green-yellow)gnd(white)NO
Wire insulation material
PVC
Type of cable
SJTO cable (AWG 18), 3 ft, yellow
Environment
ip degree of protection
IP20 conforming to IEC 60529
Range of product
9007
standards
LR 25490 Class 32 11 03E78403
vibration resistance
10 gn (f= 75-1200 Hz) conforming to IEC 60529
protective treatment
Epoxy powder coat
