9007CR65K - Limit switch, 9007, 9007CR 2 NO/NC 2 stage, wobble head, wire extension - Telemecanique - Limit switch, 9007, 9007CR 2 NO/NC 2 stage, wobble head, wire extension - Telemecanique - 0
9007CR65K - Limit switch, 9007, 9007CR 2 NO/NC 2 stage, wobble head, wire extension - Telemecanique - Limit switch, 9007, 9007CR 2 NO/NC 2 stage, wobble head, wire extension - Telemecanique - 0

9007CR65K – Telemecanique

On order
978,00 € excl. VAT
1 212,72 € incl. VAT

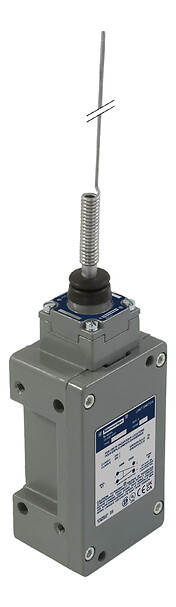

Limit switch, 9007, 9007CR 2 NO/NC 2 stage, wobble head, wire extension - Telemecanique
 In cart
1 212,72 €
Limit switch, 9007, 9007CR 2 NO/NC 2 stage, wobble head, wire extension
SPECIFICATIONS
Main
Body type Fixed
Device short name 9007CR
product specific application Hazardous location box
Series name Heavy duty
switch function 2 SPDT-DB
head type Multi-directional head
Complementary
Product or component type Limit switch
nema degree of protection NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 6 conforming to Nema type 250, NEMA 6P conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250
cable entry 1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1
Contacts material Silver contacts
contact operation Snap action
Contacts type and composition 2(NC-NO)
Electrical shock protection class Class 0 conforming to IEC 61140
Fixing mode By the body
body material Aluminium
Material Metal
function available 2 stages sequential
Type of operator Steel spring return wobble stick (wire extension)
Local signalling without
head material Zinc
Positive opening Without
electrical connection Screw-clamp terminals (AWG 22...AWG 12), 1-2
Movement of operating head Multi-directional
Switch actuation By any moving part
Type of approach Multi-directional approach, multi-directional approach
Shock resistance 60 gn for 9 ms conforming to IEC 60068-2-27
Terminals description iso n°1 (7-8)NO(3-4)NO(1-2)NC(5-6)NC
Environment
ip degree of protection IP67 conforming to IEC 60529
Level or class Class II Division 1 Groups E/F/GClass I Division 1 Groups B/C/D
Range of product 9007
vibration resistance 25 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
protective treatment Epoxy powder coat
