9007CR61KC – Telemecanique
On order869,52 € excl. VAT
1 078,20 € incl. VAT

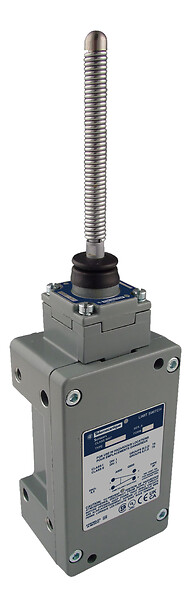

Limit switch, 9007, 9007CR 2 NO/NC, wobble head, coil spring - Telemecanique
Limit switch, 9007, 9007CR 2 NO/NC, wobble head, coil spring
SPECIFICATIONS
Main
Body type
Fixed
Device short name
9007CR
product specific application
Hazardous location box
Series name
Heavy duty
switch function
DPDT-DB
head type
Multi-directional head
Complementary
Product or component type
Limit switch
nema degree of protection
NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 6 conforming to Nema type 250, NEMA 6P conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250
cable entry
1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1
Contacts material
Silver contacts
contact operation
Snap action
Contacts type and composition
2(NC-NO)
Electrical shock protection class
Class 0 conforming to IEC 61140
Fixing mode
By the body
body material
Aluminium
Material
Metal
function available
Not applicable
Type of operator
Steel spring return wobble stick (coil spring extension)
Local signalling
without
head material
Zinc
Positive opening
Without
electrical connection
Screw-clamp terminals (AWG 22...AWG 12), 1-2
Movement of operating head
Multi-directional
Switch actuation
By any moving part
Type of approach
Multi-directional approach, multi-directional approach
Shock resistance
60 gn for 9 ms conforming to IEC 60068-2-27
Terminals description iso n°1
(7-8)NO(3-4)NO(1-2)NC(5-6)NC
Environment
ip degree of protection
IP67 conforming to IEC 60529
Level or class
Class II Division 1 Groups E/F/GClass I Division 1 Groups B/C/D
Range of product
9007
vibration resistance
25 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
protective treatment
Epoxy powder coat
