9007CO66 - Limit switch plug in unit, 9007 - Telemecanique - Limit switch plug in unit, 9007, 600 V 10amp c - Telemecanique - 0
9007CO66 - Limit switch plug in unit, 9007 - Telemecanique - Limit switch plug in unit, 9007, 600 V 10amp c - Telemecanique - 0

9007CO66 – Telemecanique

On order
323,57 € excl. VAT
401,22 € incl. VAT
Limit switch plug in unit, 9007, 600 V 10amp c - Telemecanique
 In cart
401,22 €

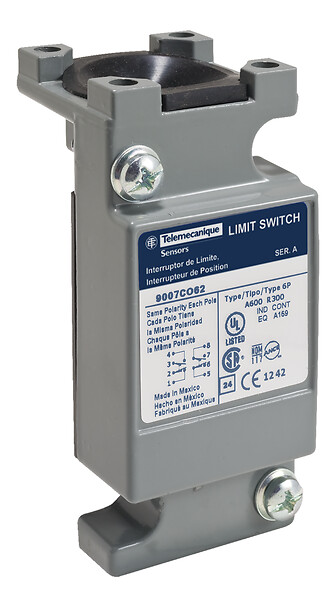

Limit switch plug in unit, 9007, 600 V 10amp c
SPECIFICATIONS
Main
Body type Standard plug-in
Device short name 9007C
Series name Heavy duty
switch function 2 SPDT-DB
Complementary
product compatibility 9007C
local display Without
Product or component type Limit switch plug-in unit
nema degree of protection NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 6 conforming to Nema type 250, NEMA 6P conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250
Contacts material Silver contacts
contact operation Snap action
Contacts type and composition 2(NC-NO)
Electrical shock protection class Class 0 conforming to IEC 61140
body material Zinc
function available 2 stages sequential
Positive opening Without
Shock resistance 60 gn for 9 ms conforming to IEC 60068-2-27
Terminals description iso n°1 (7-8)NO(3-4)NO(1-2)NC(5-6)NC
Environment
ip degree of protection IP67 conforming to IEC 60529
Range of product 9007
vibration resistance 25 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
protective treatment Epoxy powder coat
