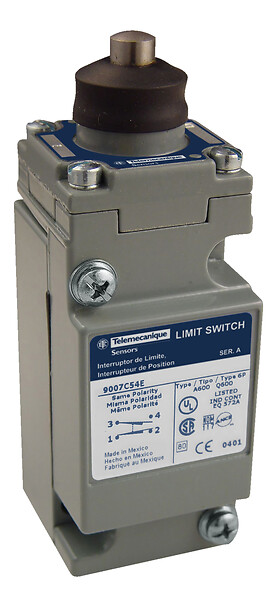

Limit switch, 9007, 9007C 2 NO/NC, top push rod plunger - Telemecanique
Limit switch, 9007, 9007C 2 NO/NC, top push rod plunger
SPECIFICATIONS
Main
Body type
Plug-in
Device short name
9007C
product specific application
Standard box
Series name
Heavy duty
switch function
DPDT-DB
head type
Plunger head
Complementary
Product or component type
Limit switch
nema degree of protection
NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 6 conforming to Nema type 250, NEMA 6P conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250
cable entry
1 entry for M20 x 1.5 mm conforming to BS 4568
Contacts material
Silver contacts
contact operation
Snap action
Contacts type and composition
2(NC-NO)
Electrical shock protection class
Class 0 conforming to IEC 61140
Fixing mode
By the body
body material
Zinc
Material
Metal
function available
Not applicable
Type of operator
Stainless steel spring return plunger (-)
Local signalling
without
head material
Zinc
repeat accuracy
+/- 0.001 in linear travel of cam
Positive opening
Without
electrical connection
Screw-clamp terminals (AWG 22...AWG 12), 1-2
Movement of operating head
Linear
Switch actuation
On end
Type of approach
Vertical approach, 1 direction
Shock resistance
60 gn for 9 ms conforming to IEC 60068-2-27
Terminals description iso n°1
(7-8)NO(3-4)NO(1-2)NC(5-6)NC
Environment
ip degree of protection
IP67 conforming to IEC 60529
Range of product
9007
vibration resistance
25 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
protective treatment
Epoxy powder coat
