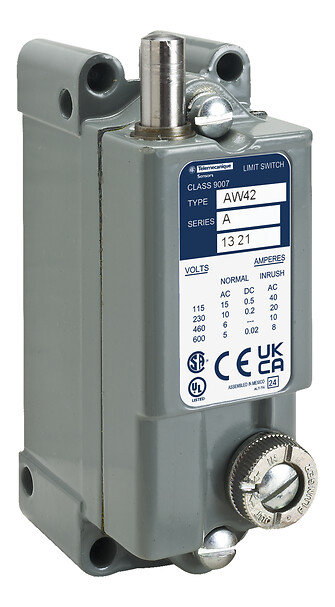

Limit switch, 9007, 600 VAC 15amp aw +options - Telemecanique
Limit switch, 9007, 600 VAC 15amp aw +options
SPECIFICATIONS
Main
Body type
Fixed
Device short name
9007AW
product specific application
Precision
Series name
Heavy duty
Complementary
Product or component type
Limit switch
nema degree of protection
NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250
cable entry
1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1
Contacts material
Silver contacts
contact operation
Snap action
Contacts type and composition
NC-NO, switch function: SPDT-DB
Fixing mode
By the body
body material
Cast zinc
Material
Metal
Type of operator
Spring return push rod plunger steel with micrometer adjustment
Mounting mode
Surface mounting standard box
repeat accuracy
+/- 0.001 in
Positive opening
Without
electrical connection
1-2 cables for screw-clamp terminals (AWG 22...AWG 12)
Movement of operating head
Linear
Operator profile
Plunger head
Switch actuation
On end
Type of approach
Vertical approach, 1 direction
Terminals description iso n°1
(3-4)NO(1-2)NC
Environment
ip degree of protection
IP65 conforming to IEC 60529
Range of product
9007
protective treatment
Epoxy powder coat
