9007AO16 – Telemecanique
On order211,49 € excl. VAT
262,25 € incl. VAT

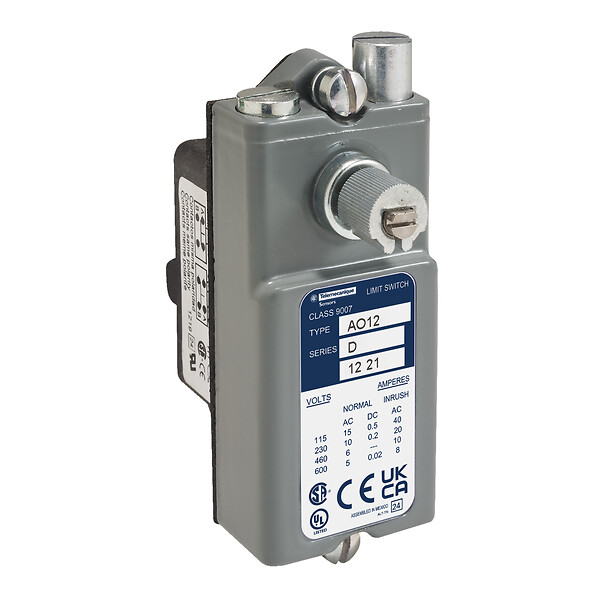

Limit switch, 9007, 600 VAC 15amp ao +options - Telemecanique
Limit switch, 9007, 600 VAC 15amp ao +options.
This product is compatible with 9007AA0, 9007BA0, 9007FA6
SPECIFICATIONS
Main
Body type
Plug-in
Device short name
9007AW
product specific application
Precision
Series name
Heavy duty
Complementary
Product or component type
Limit switch
nema degree of protection
NEMA 1 conforming to Nema type 250
Contacts material
Silver contacts
contact operation
Snap action
Contacts type and composition
NC-NO, switch function: SPDT-DB
Fixing mode
By the body
body material
Cast zinc
Material
Metal
Type of operator
Spring return without operating lever cast zinc
Mounting mode
Open type
repeat accuracy
+/- 0.002 in linear travel of cam on 1.38 in long lever arm
Positive opening
Without
electrical connection
1-2 cables for screw-clamp terminals (AWG 22...AWG 12)
Movement of operating head
Rotary
Operator profile
Rotary head
Switch actuation
CCW convertible to CWfrom left convertible to right
Type of approach
Lateral approach, 1 direction programmable
Terminals description iso n°1
(3-4)NO(1-2)NC
Environment
ip degree of protection
IP20 conforming to IEC 60529
Range of product
9007
protective treatment
Epoxy powder coat
