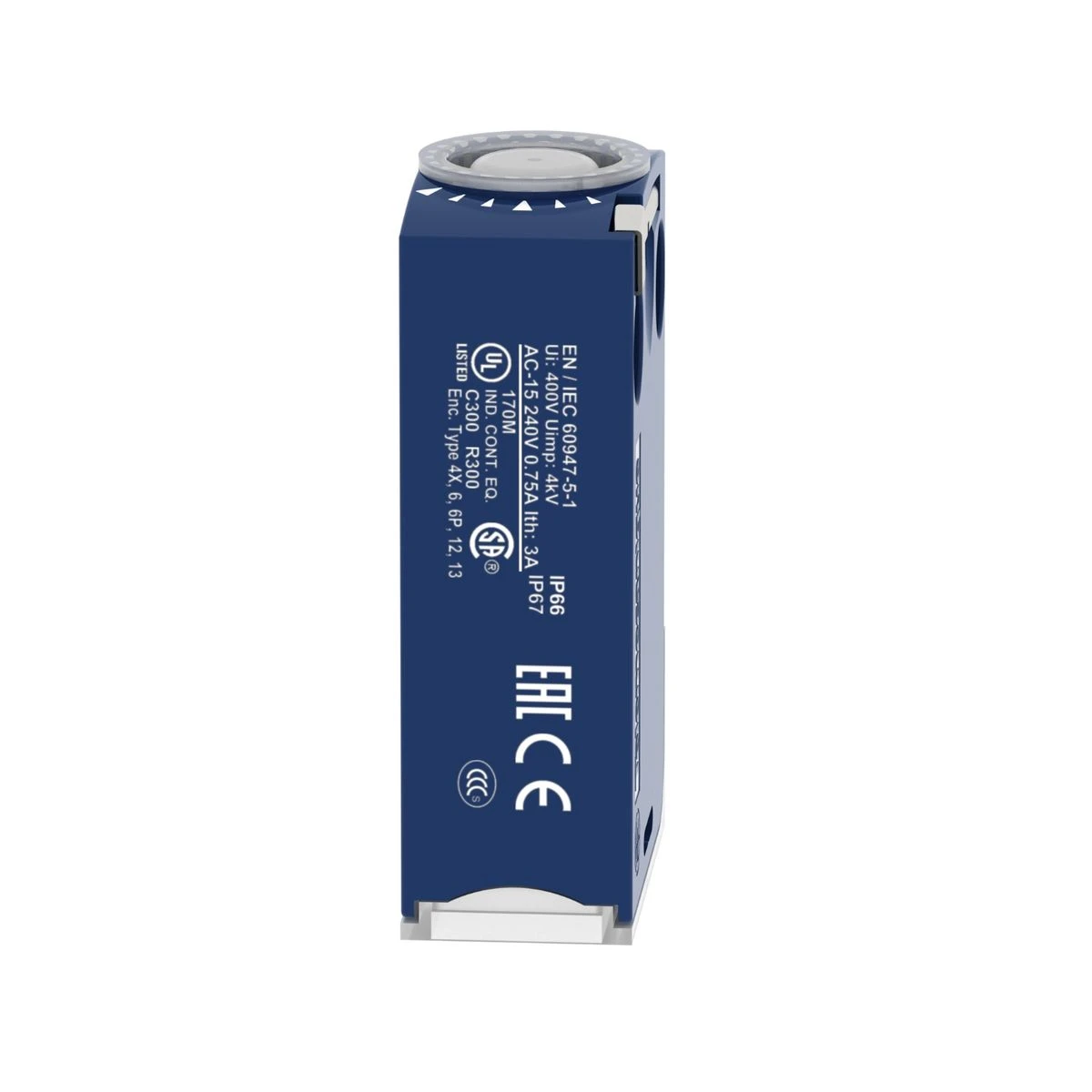

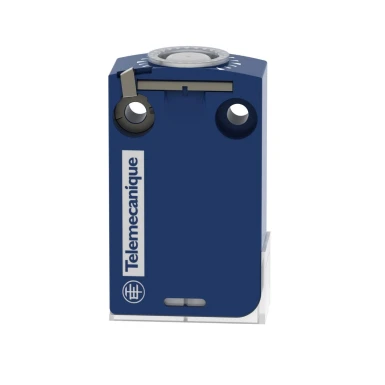

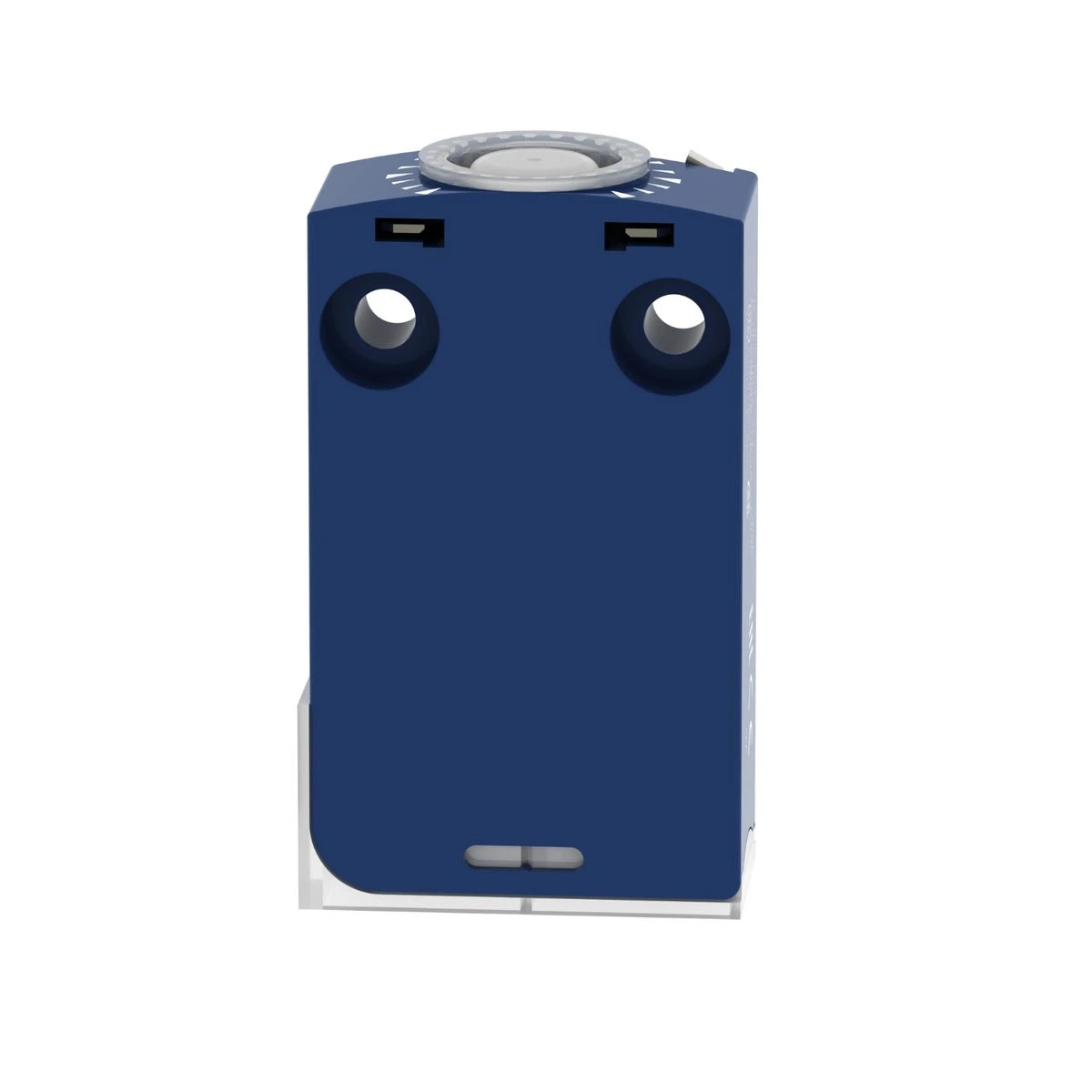

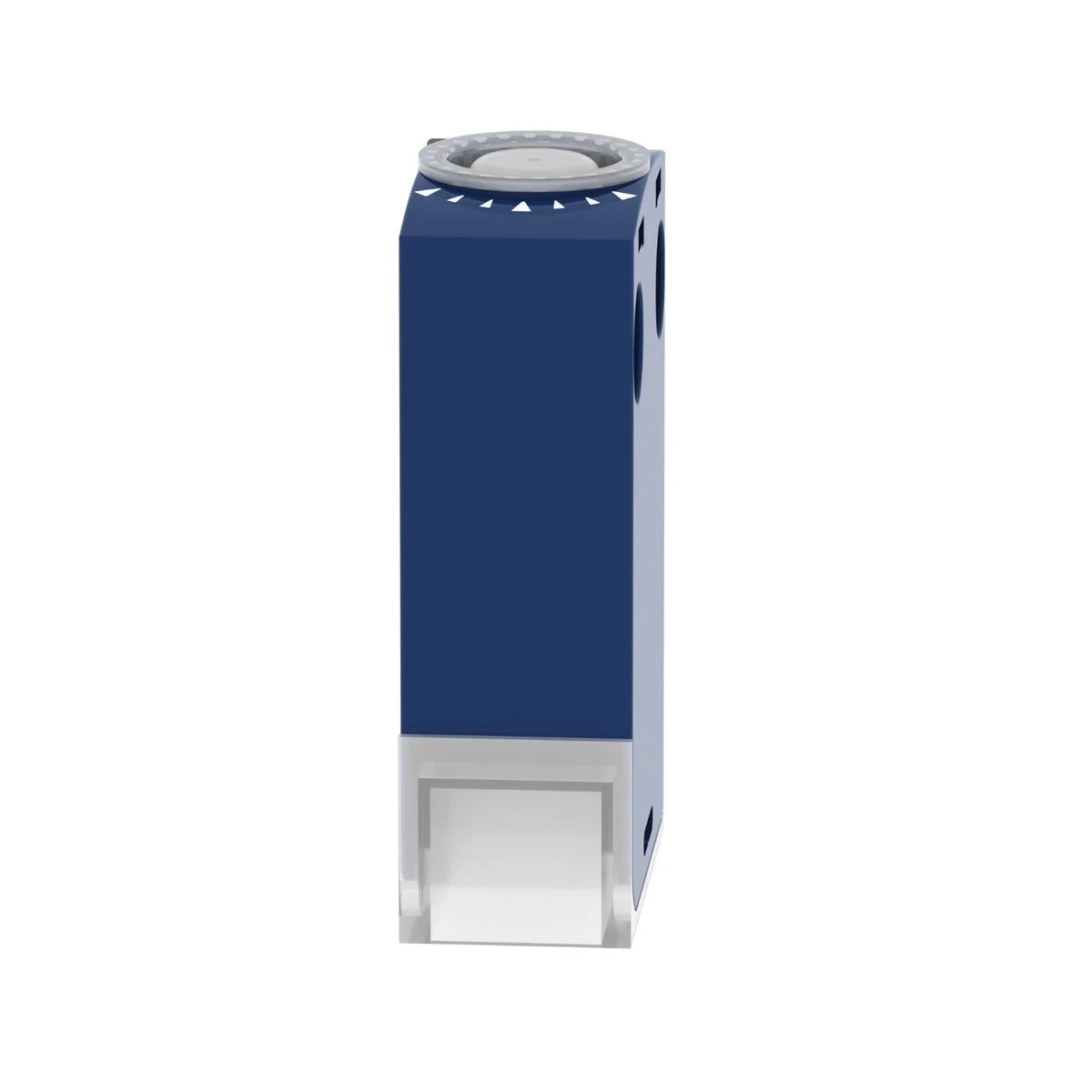

ZCMD41L5 - Limit switch body, Limit switches XC Standard, ZCMD, 2NC+2 NO, silver, snap action, connection, 5 m - Schneider Electric
Expected in 2-4 weeks
70,84 €
Text About:
Limit switch body, Limit switches XC Standard, ZCMD, 2NC+2 NO, silver, snap action, connection, 5 m - Schneider Electric
SPECIFICATIONS
Main
Associated head
ZCE67
ZCE09
ZCE62
ZCE10
ZCE64
ZCE11
ZCE65
ZCEG1
ZCE06
ZCE13
ZCE08
ZCEF0
ZCE24
ZCE07
ZCE21
ZCE66
ZCE14
ZCE28
ZCEF2
ZCE27
ZCE02
ZCE29
ZCE01
ZCE63
ZCE09
ZCE62
ZCE10
ZCE64
ZCE11
ZCE65
ZCEG1
ZCE06
ZCE13
ZCE08
ZCEF0
ZCE24
ZCE07
ZCE21
ZCE66
ZCE14
ZCE28
ZCEF2
ZCE27
ZCE02
ZCE29
ZCE01
ZCE63
Body type
Fixed
design
Miniature
Device short name
ZCMD
cable length
5 m
[ui] rated insulation voltage
300 V (pollution degree 3) conforming to UL 508
400 V (pollution degree 3) conforming to IEC 60947-5-1
300 V (pollution degree 3) conforming to CSA C22.2 No 14
400 V (pollution degree 3) conforming to IEC 60947-5-1
300 V (pollution degree 3) conforming to CSA C22.2 No 14
Series name
Standard format
Complementary
product compatibility
XCMD
cable composition
9 x 0.34 mm²
Handle front plate colour
50 mm
Product or component type
Limit switch body
[uimp] rated impulse withstand voltage
4 kV conforming to IEC 60664
4 kV conforming to IEC 60947-1
4 kV conforming to IEC 60947-1
Contacts insulation form
Zb
Contacts material
Silver plated contacts
contact operation
Snap action
Contacts type and composition
2 NC + 2 NO
body material
Zamak
width (w)
30 mm
Net weight
0.065 kg
depth
16 mm
electrical durability
5000000 cycles, DC-13 24 V, 3 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 48 V, 2 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 120 V, 1 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 48 V, 2 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 120 V, 1 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Positive opening
With
electrical connection
Fixed cable
Maximum resistance across terminals
25 mOhm conforming to IEC 60255-7 category 3
Minimum actuation speed
0.01 m/min
Poles description
4
Short-circuit protection
6 A cartridge fuse, type gG
Wire insulation material
PvR
Environment
Ambient air temp for storage/transportation
-40…70 °C
Range of product
Telemecanique Limit switches XC Standard
