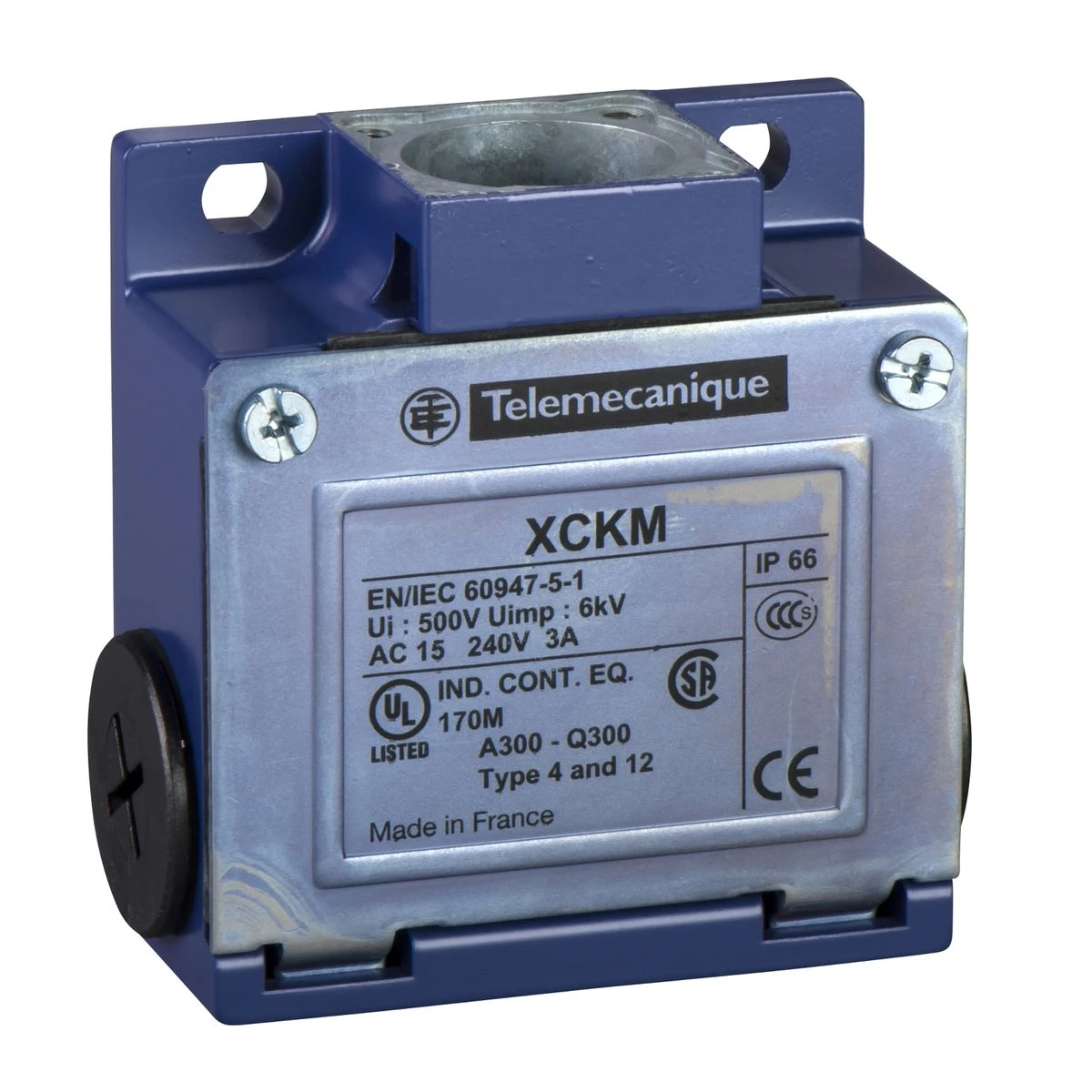

ZCKM7H7 - Limit switch body, Limit switches XC Standard, ZCKM, 2NC, slow break, 1/2''NPT - Schneider Electric

Expected in 2-4 weeks

98,81 € excl. VAT

120,54 € incl. VAT

Text About:

Limit switch body, Limit switches XC Standard, ZCKM, 2NC, slow break, 1/2''NPT - Schneider Electric

In cart

120,54 €

SPECIFICATIONS

Main

Associated head ZCKD21
ZCKD08
ZCKD17
ZCKD59
ZCKD239
ZCKD81
ZCKD91
ZCKD23
ZCKD029
ZCKD109
ZCKD219
ZCKD41
ZCKD16
ZCKD06
ZCKD10
ZCKD02
ZCKD05
ZCKD15

Body type Fixed

Device short name ZCKM

[ithe] thermal current under enclosure 10 A

[ui] rated insulation voltage 500 V (pollution degree 3) conforming to IEC 60947-1 for contact block
300 V conforming to CSA C22.2 No 14 for contact block
300 V conforming to UL 508 for contact block

Series name Standard format

Complementary

product compatibility XCKM

[ie] rated operational current 3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1 appendix A
0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A

local display Without

Handle front plate colour 64 mm

Product or component type Limit switch body

[uimp] rated impulse withstand voltage 4 kV conforming to IEC 60664
4 kV conforming to IEC 60947-1

cable entry 3 entries tapped for Pg 11 cable gland, one with 1/2" NPT adaptor

Contacts material Silver plated contacts

contact operation Slow-break, simultaneous

Contacts type and composition 2 NC

body material Metal

width (w) 64 mm

Ik degree of protection IK05

Net weight 0.21 kg

depth 30 mm

electrical durability 5000000 cycles, DC-13 120 V, 2 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 24 V, 3 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 48 V, 2 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Number of steps 1 1 position

Positive opening With

electrical connection Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²

Maximum resistance across terminals 0.25 mOhm conforming to IEC 60255-7 category 3

Minimum actuation speed 6 m/min

Poles description 2

Short-circuit protection 6 A cartridge fuse, type gG

Terminals description iso n°1 (21-22)NC
(13-14)NON
(33-34)NON

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP66

Range of product Telemecanique Limit switches XC Standard

ambient air temperature for operation -25…70 °C for standard environment

Environmental characteristics Standard environment
