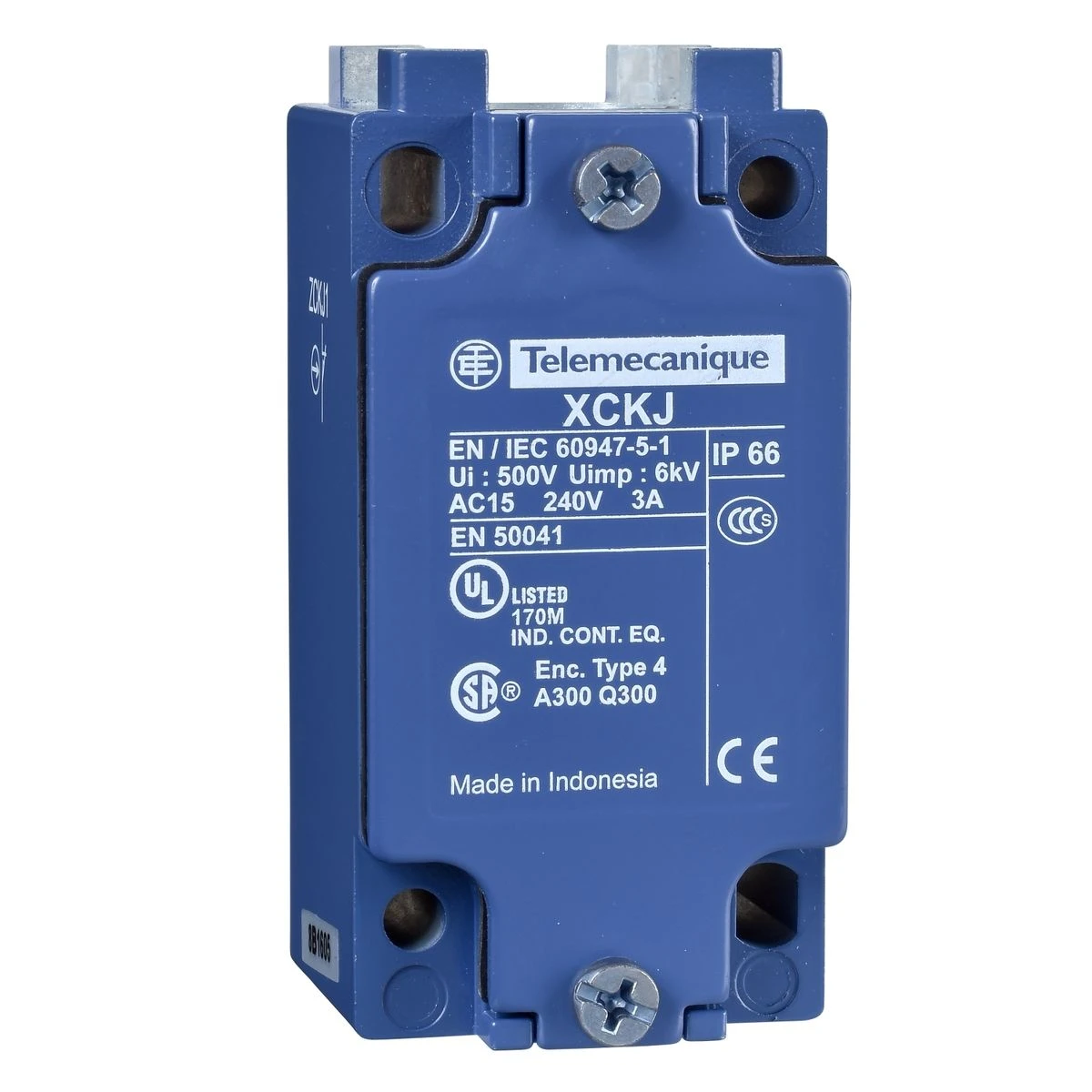

ZCKJD37H29 - Limit switch body, Limit switches XC Standard, ZCKJ, fixed, w/o display, 2NC+1 NO, slow break, M20 - Schneider Electric

Expected in 2-4 weeks

47,55 € excl. VAT

58,02 € incl. VAT

Text About:

Limit switch body, Limit switches XC Standard, ZCKJ, fixed, w/o display, 2NC+1 NO, slow break, M20 - Schneider Electric

In cart

58,02 €

SPECIFICATIONS

Main

Associated head ZCKE619
ZCKE05
ZCKE62
ZCKE629
ZCKE63
ZCKE08
ZCKE61
ZCKE23
ZCKE21
ZCKE64
ZCKE66
ZCKE67
ZCKE65
ZCKE06

Body type Fixed

Device short name ZCKJ

[ithe] thermal current under enclosure 6 A

[ui] rated insulation voltage 400 V (pollution degree 3) conforming to IEC 60947-1 for contact block
300 V conforming to CSA C22.2 No 14 for contact block
300 V conforming to UL 508 for contact block

Series name Standard format

Complementary

product compatibility XCKJ

[ie] rated operational current 1.5 A at 240 V, AC-15, B300 conforming to EN/IEC 60947-5-1 appendix A
0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1 appendix A

local display Without

Handle front plate colour 72 mm

Product or component type Limit switch body

[uimp] rated impulse withstand voltage 6 kV conforming to IEC 60664
6 kV conforming to IEC 60947-1

cable entry 1 entry tapped for M20 x 1.5 cable gland

Contacts material Silver plated contacts

contact operation Slow-break, break before make

Contacts type and composition 2 NC + 1 NO

body material Metal

width (w) 52 mm

Ik degree of protection IK05

Net weight 0.21 kg

depth 30 mm

electrical durability 5000000 cycles, DC-13 120 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 24 V, 13 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 48 V, 9 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Number of steps 1 1 position

Positive opening With

electrical connection Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 0.75 mm²

Maximum resistance across terminals 0.25 mOhm conforming to IEC 60255-7 category 3

Minimum actuation speed 6 m/min

Poles description 3

Short-circuit protection 10 A cartridge fuse, type gG

Terminals description iso n°1 (13-14)NON !@ !(21-22)NC

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP66

Range of product Telemecanique Limit switches XC Standard

ambient air temperature for operation -25…70 °C for standard environment

Environmental characteristics Standard environment
