Main
Associated head
ZCKE21
ZCKE61
ZCKE67
ZCKE62
ZCKE629
ZCKE619
ZCKE05
ZCKE66
ZCKE23
Body type
Plug-in body
Device short name
ZCKJ
[ithe] thermal current under enclosure
10 A
[ui] rated insulation voltage
500 V (pollution degree 3) conforming to IEC 60947-1 for contact block
300 V conforming to CSA C22.2 No 14 for contact block
300 V conforming to UL 508 for contact block
Series name
Standard format
Complementary
product compatibility
XCKJ
[ie] rated operational current
3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1 appendix A
0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A
local display
Without
Handle front plate colour
77 mm
Product or component type

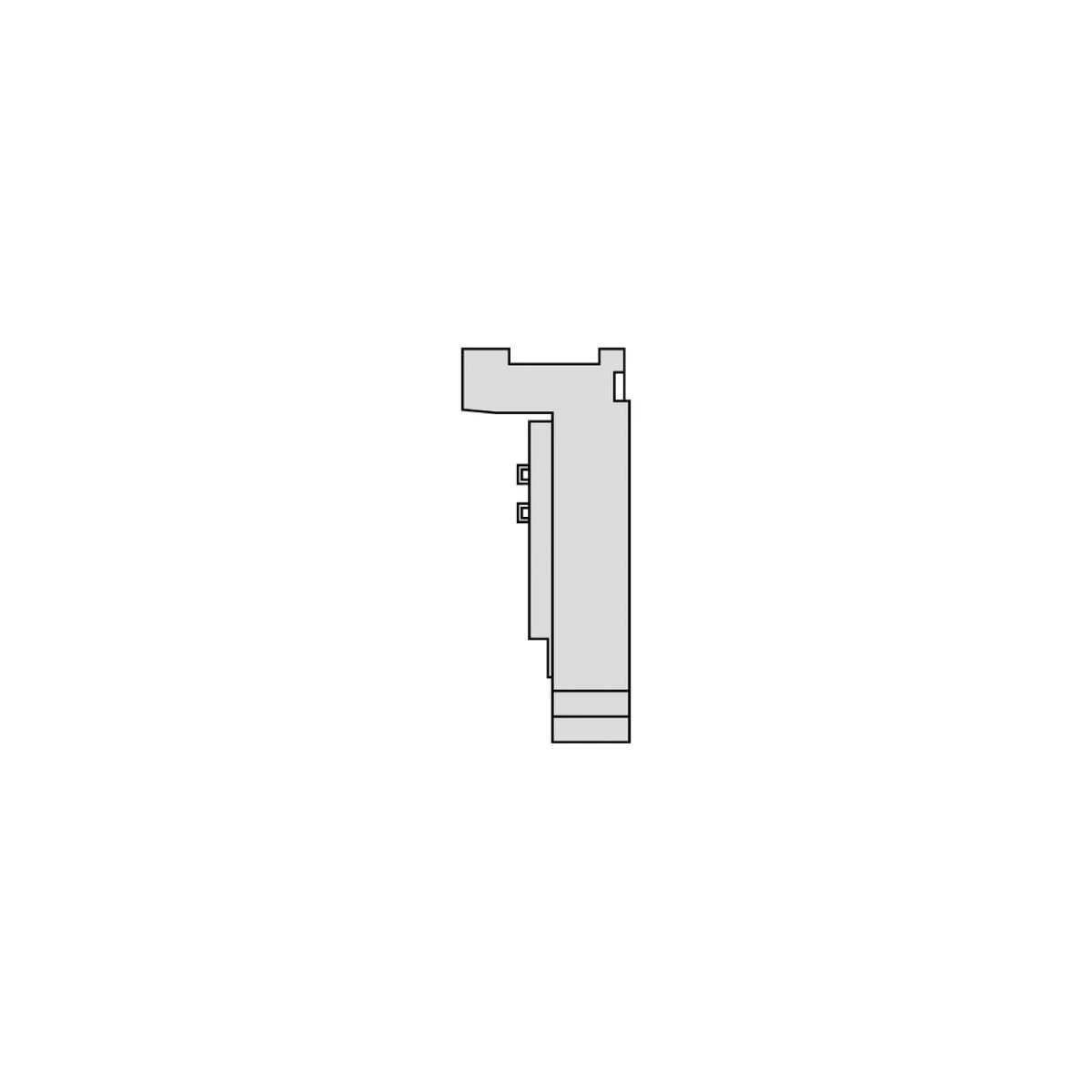

Limit switch body part with contact
[uimp] rated impulse withstand voltage
6 kV conforming to IEC 60664
6 kV conforming to IEC 60947-1
cable entry
1 entry tapped for Pg 13.5 cable gland
Contacts material
Silver plated contacts
contact operation
Snap action
Contacts type and composition
2 C/O
body material
Metal
width (w)
40 mm
Ik degree of protection
IK07
Net weight
0.31 kg
depth
44 mm
electrical durability
5000000 cycles, DC-13 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Number of steps
2 sequential
Positive opening
Without
electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.75...2 x 1.5 mm²
Maximum resistance across terminals
0.25 mOhm conforming to IEC 60255-7 category 3
Minimum actuation speed
0.01 m/min
Poles description
2
Short-circuit protection
10 A cartridge fuse, type gG
Terminals description iso n°1
(21-22)NC
(13-14)NON
Environment
Ambient air temp for storage/transportation
-40…120 °C
ip degree of protection
IP66
Range of product
Telemecanique Limit switches XC Standard
ambient air temperature for operation
-25…70 °C for standard environment
10…120 °C for high temperature
-40…70 °C for low temperature
Environmental characteristics
High temperature
Low temperature
Standard environment
