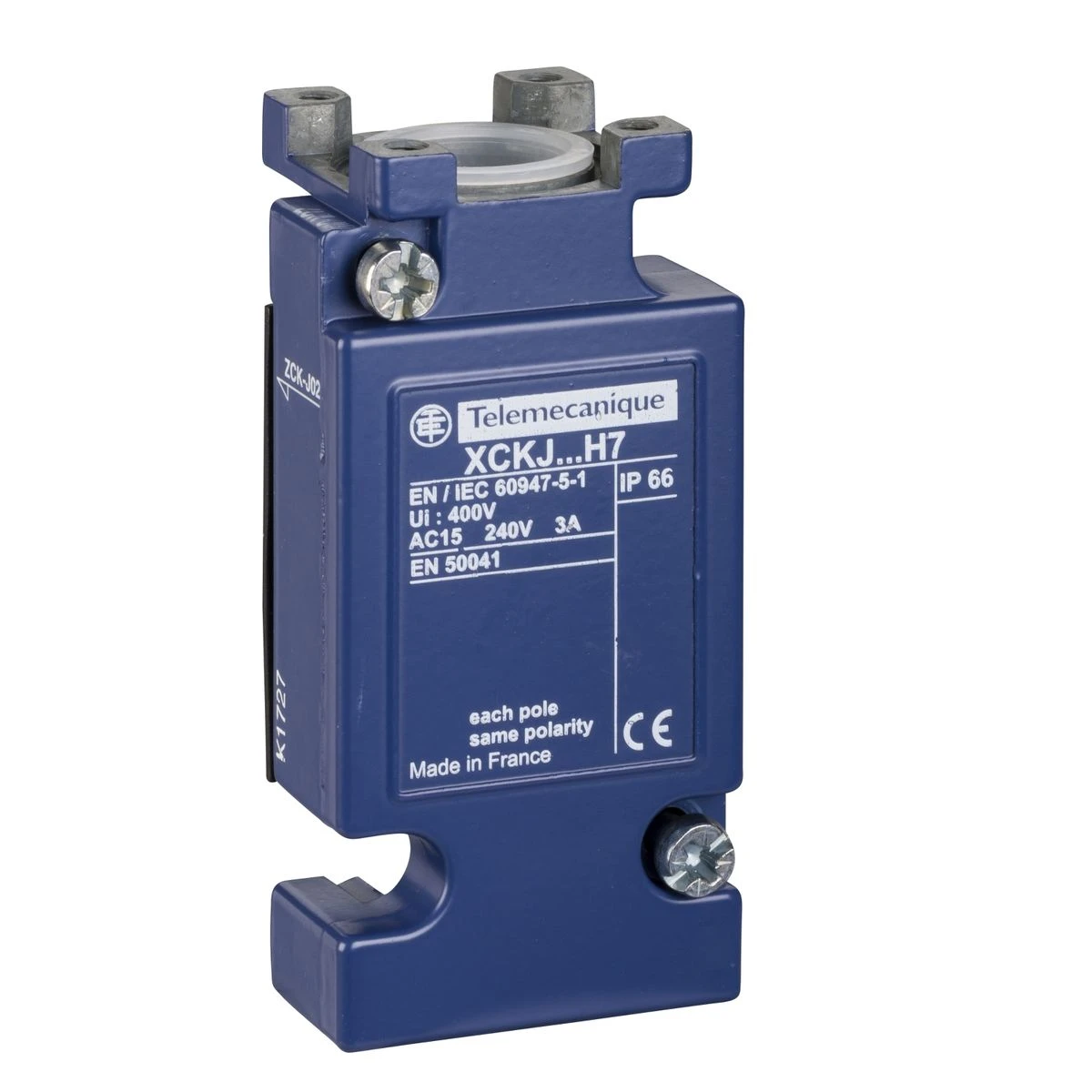

ZCKJ02H7 - Limit switch body part with contact, Limit switches XC Standard, plug in module - Schneider Electric

Expected in 2-4 weeks

103,78 €

Text About:

Limit switch body part with contact, Limit switches XC Standard, plug in module - Schneider Electric

In cart

103,78 €

SPECIFICATIONS

Main

Associated head ZCKE67
ZCKE64
ZCKE21
ZCKE06
ZCKE08
ZCKE62
ZCKE63
ZCKE61
ZCKE66
ZCKE65
ZCKE23
ZCKE629
ZCKE619
ZCKE05

Body type Plug-in body

Device short name ZCKJ

[ithe] thermal current under enclosure 10 A

[ui] rated insulation voltage 500 V (pollution degree 3) conforming to IEC 60947-1 for contact block
300 V conforming to CSA C22.2 No 14 for contact block
300 V conforming to UL 508 for contact block
50 V conforming to IEC 60947-1 for indicator light module

Series name Standard format

Complementary

product compatibility XCKJ

[ie] rated operational current 3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1 appendix A
0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A

local display Without

Handle front plate colour 84 mm

Product or component type Limit switch body part with contact

[uimp] rated impulse withstand voltage 6 kV conforming to IEC 60664
6 kV conforming to IEC 60947-1

cable entry 1 entry tapped for 1/2" NPT conduit

Contacts material Silver plated contacts

contact operation Snap action

Contacts type and composition 2 C/O

body material Metal

width (w) 43 mm

Electrical circuit type Indicator light module 2 LED DC, 24 V (20...30 V) service life: 100000 h with reverse polarity protection

Ik degree of protection IK07

Net weight 0.32 kg

depth 36 mm

electrical durability 5000000 cycles, DC-13 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Number of steps 1 1 position

Positive opening With

electrical connection Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²

Maximum resistance across terminals 0.25 mOhm conforming to IEC 60255-7 category 3

Minimum actuation speed 0.01 m/min

Poles description 2

Short-circuit protection 10 A cartridge fuse, type gG

Terminals description iso n°1 (13-14)NON !@ !(21-22)NC

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP66

Range of product Telemecanique Limit switches XC Standard

ambient air temperature for operation -25…70 °C for standard environment

Environmental characteristics Standard environment
