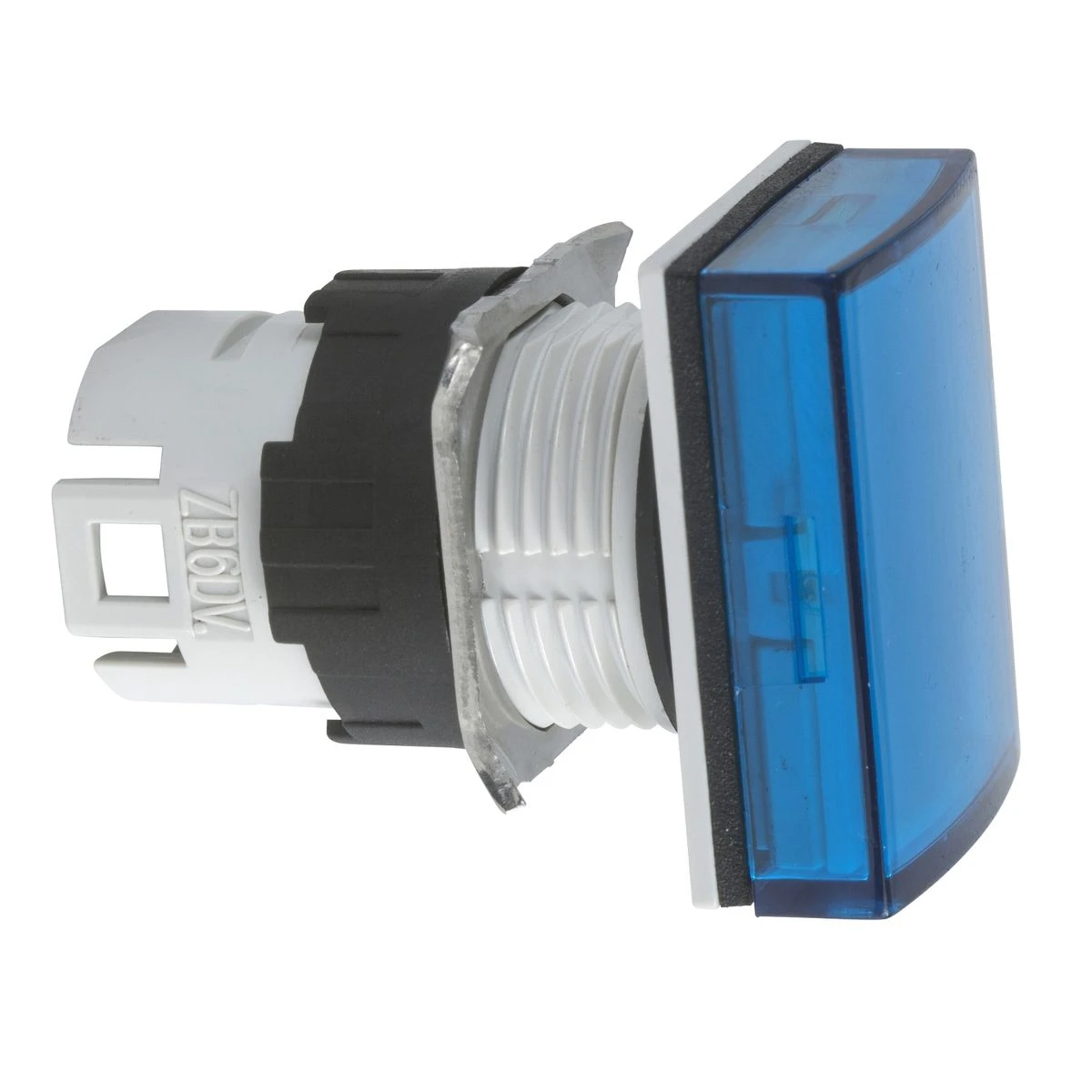

ZB6DV6 - Head for pilot light, Harmony XB6, rectangular blue ? 16 integral LED - Schneider Electric

Expected in 2-4 weeks

5,63 € excl. VAT

6,87 € incl. VAT

Text About:

Head for pilot light, Harmony XB6, rectangular blue ? 16 integral LED - Schneider Electric

In cart

6,87 €

SPECIFICATIONS

Main

Device short name ZB6

Complementary

product compatibility Integral LED

Cap/operator or lens colour Blue

Product certifications GOST
UL
CSA
CCC

mounting diameter 16 mm

Product or component type Head for pilot light

nema degree of protection NEMA 13 conforming to UL 50
NEMA 4 conforming to UL 50
NEMA 4X conforming to UL 50
NEMA 13 conforming to CSA C22.2 No 94
NEMA 4 conforming to CSA C22.2 No 94
NEMA 4X conforming to CSA C22.2 No 94

bezel material Plastic

Cad overall depth 33 mm

Cad overall height 18 mm

Electrical shock protection class Class II conforming to IEC 61140

Cad overall width 24 mm

Sale per indivisible quantity 1

Net weight 0.015 kg

Shape of signaling unit head Rectangular

Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP65 conforming to IEC 60529

Range of product Harmony XB6

ambient air temperature for operation -25…70 °C

standards JIS C 4520
UL 508
EN/IEC 60947-5-5
EN/IEC 60947-1
EN/IEC 60947-5-1
JIS C 852
CSA C22.2 No 14

vibration resistance +/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

protective treatment TC
