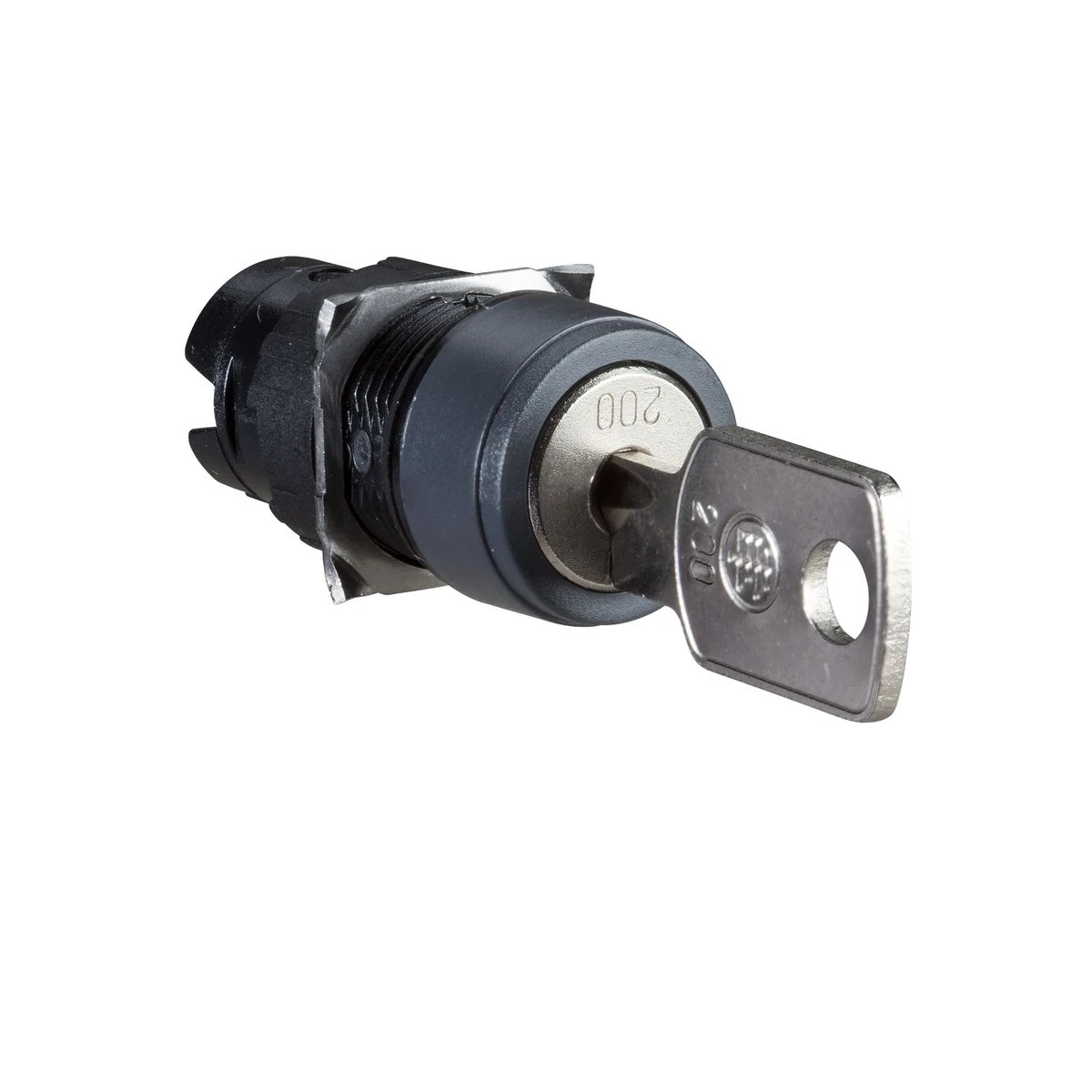

ZB6AGC - Head for key selector switch, Harmony XB6, ? 16 2 position stay put 200 - Schneider Electric

Expected in 2-4 weeks

35,09 € excl. VAT

42,81 € incl. VAT

Text About:

Head for key selector switch, Harmony XB6, ? 16 2 position stay put 200 - Schneider Electric

In cart

42,81 €

SPECIFICATIONS

Main

Device short name ZB6

Complementary

Product certifications GOST
CCC
UL
CSA

mounting diameter 16 mm

Product or component type Head for key selector switch

nema degree of protection NEMA 13 conforming to UL 50
NEMA 4 conforming to UL 50
NEMA 4X conforming to UL 50
NEMA 13 conforming to CSA C22.2 No 94
NEMA 4 conforming to CSA C22.2 No 94
NEMA 4X conforming to CSA C22.2 No 94

bezel material Plastic

Cad overall depth 55 mm

Cad overall height 18 mm

Electrical shock protection class Class II conforming to IEC 61140

Cad overall width 18 mm

Sale per indivisible quantity 1

Type of operator stay put

key withdrawal position In any position

Shape of signaling unit head Round

Operator position information 2 positions

Operator profile Black key switch

Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Type of keylock Key 200

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP65 conforming to IEC 60529

Range of product Harmony XB6

ambient air temperature for operation -25…70 °C

standards EN/IEC 60947-5-5
UL 508
JIS C 852
EN/IEC 60947-5-1
CSA C22.2 No 14
EN/IEC 60947-1
JIS C8201-5-1
JIS C8201-1

vibration resistance +/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

protective treatment TC
