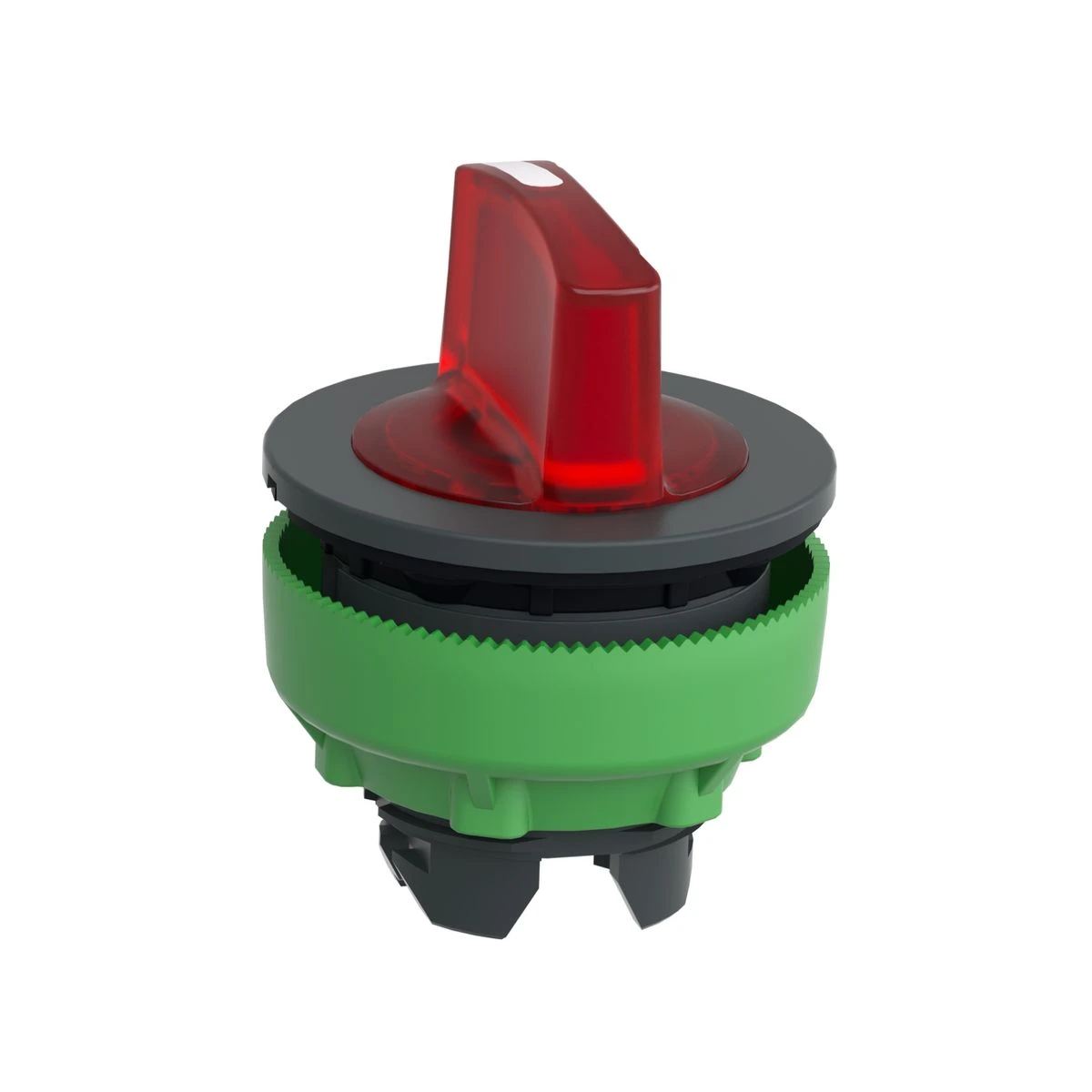

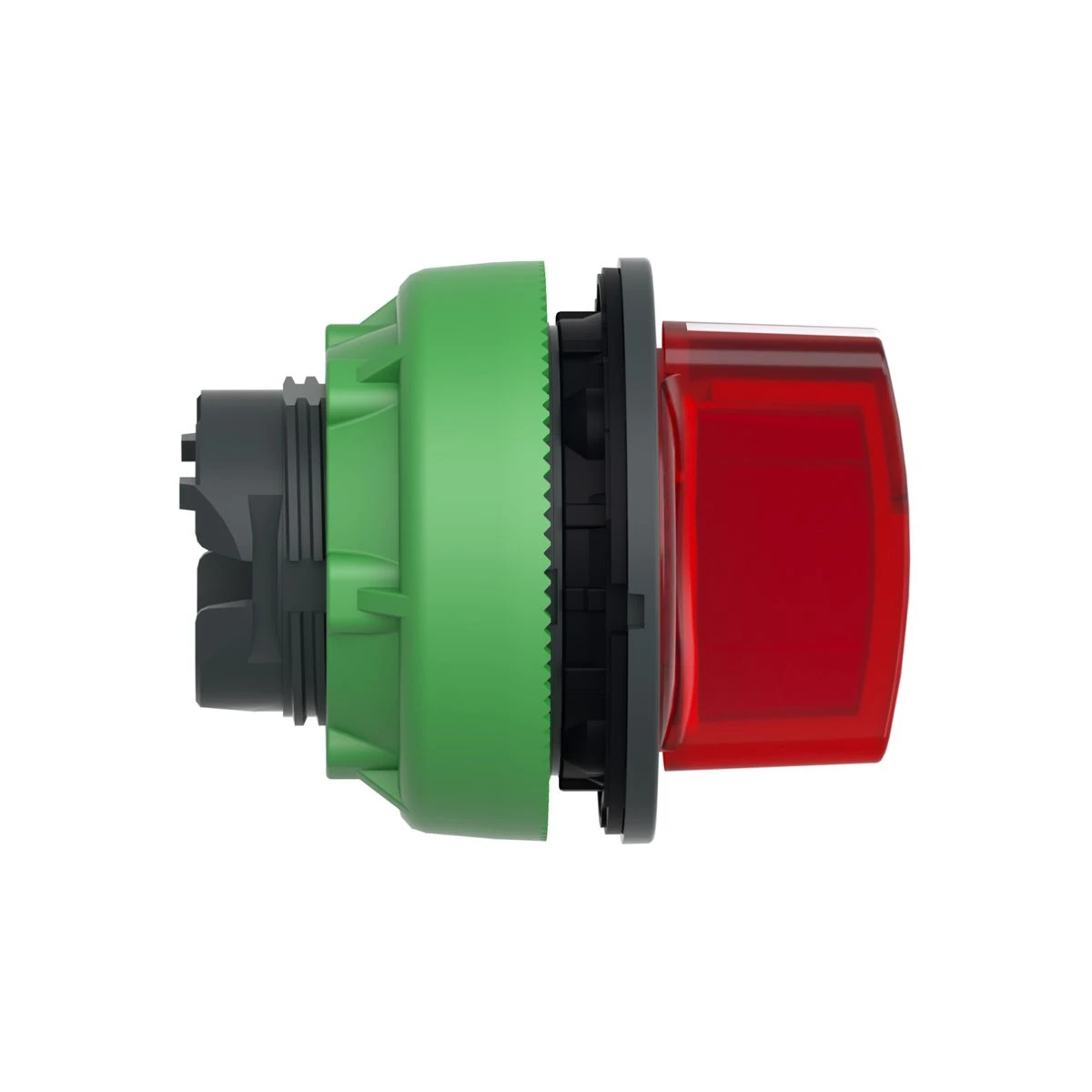

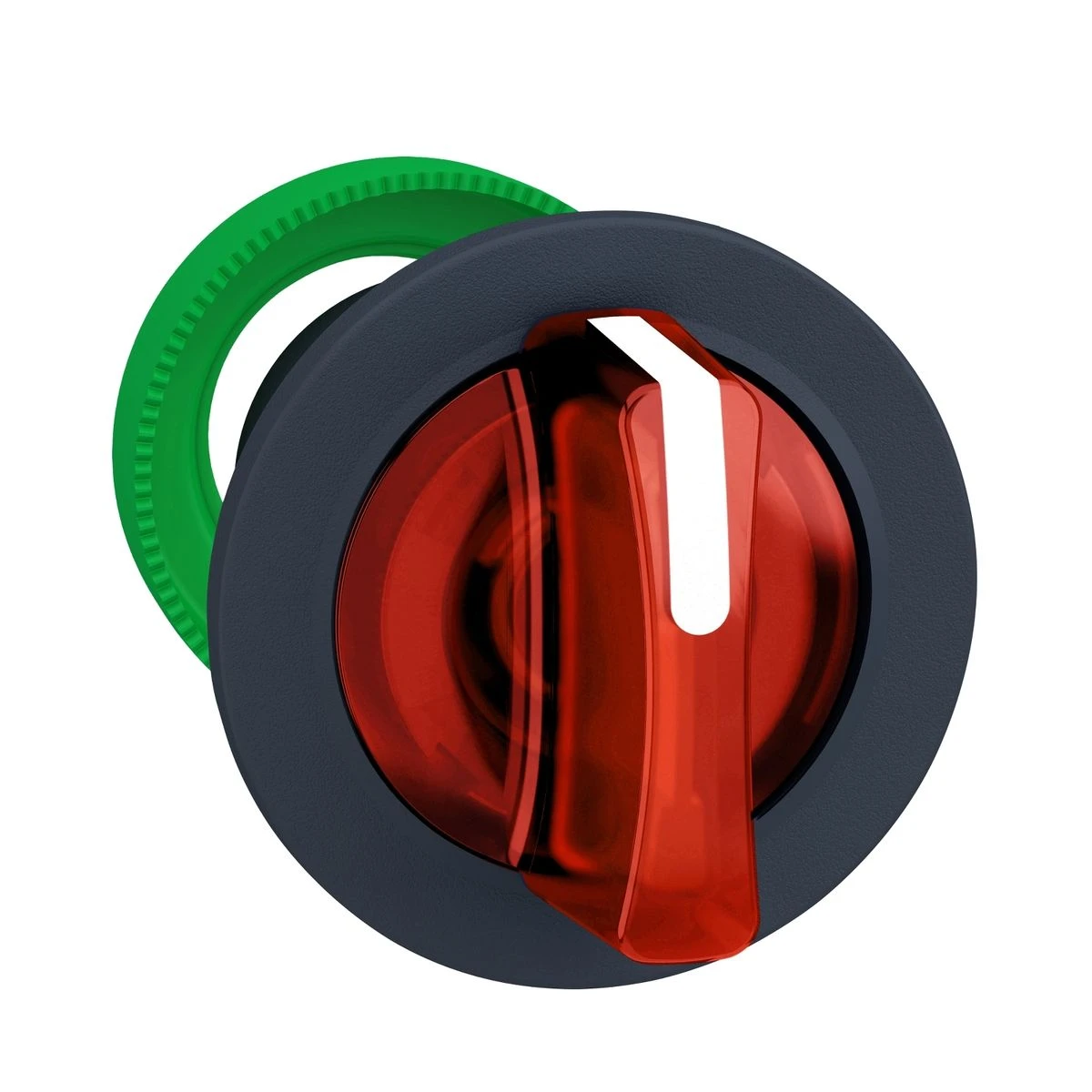

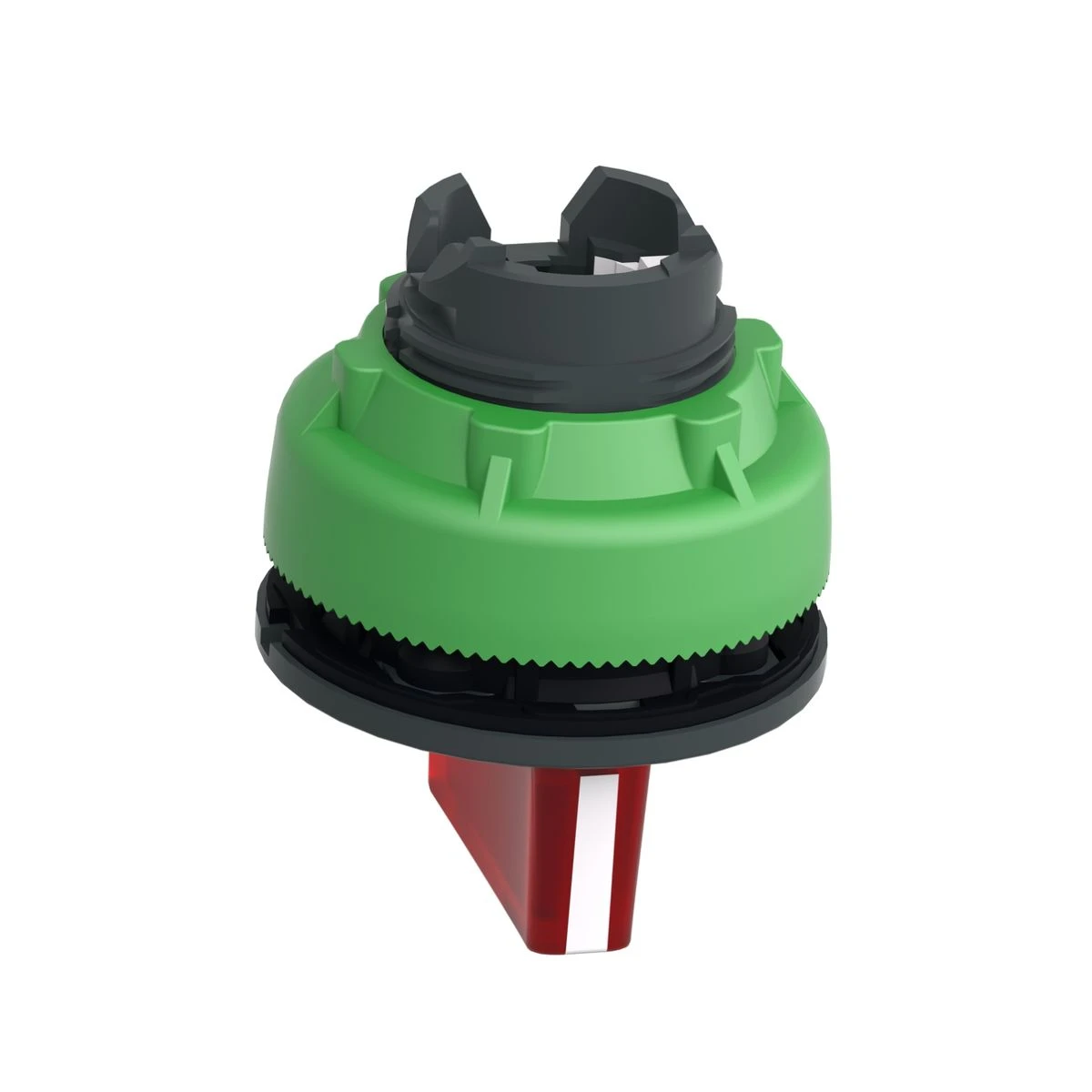

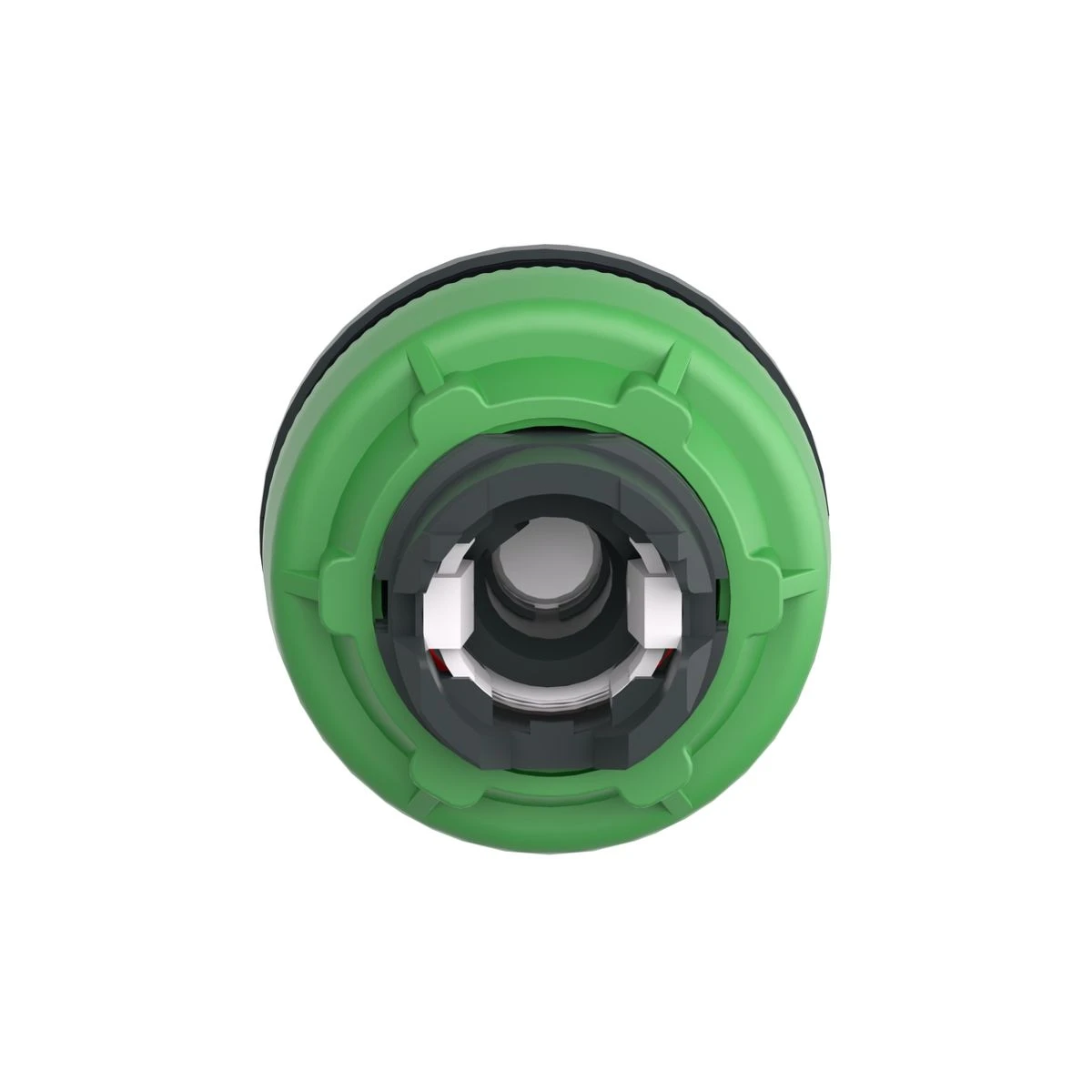

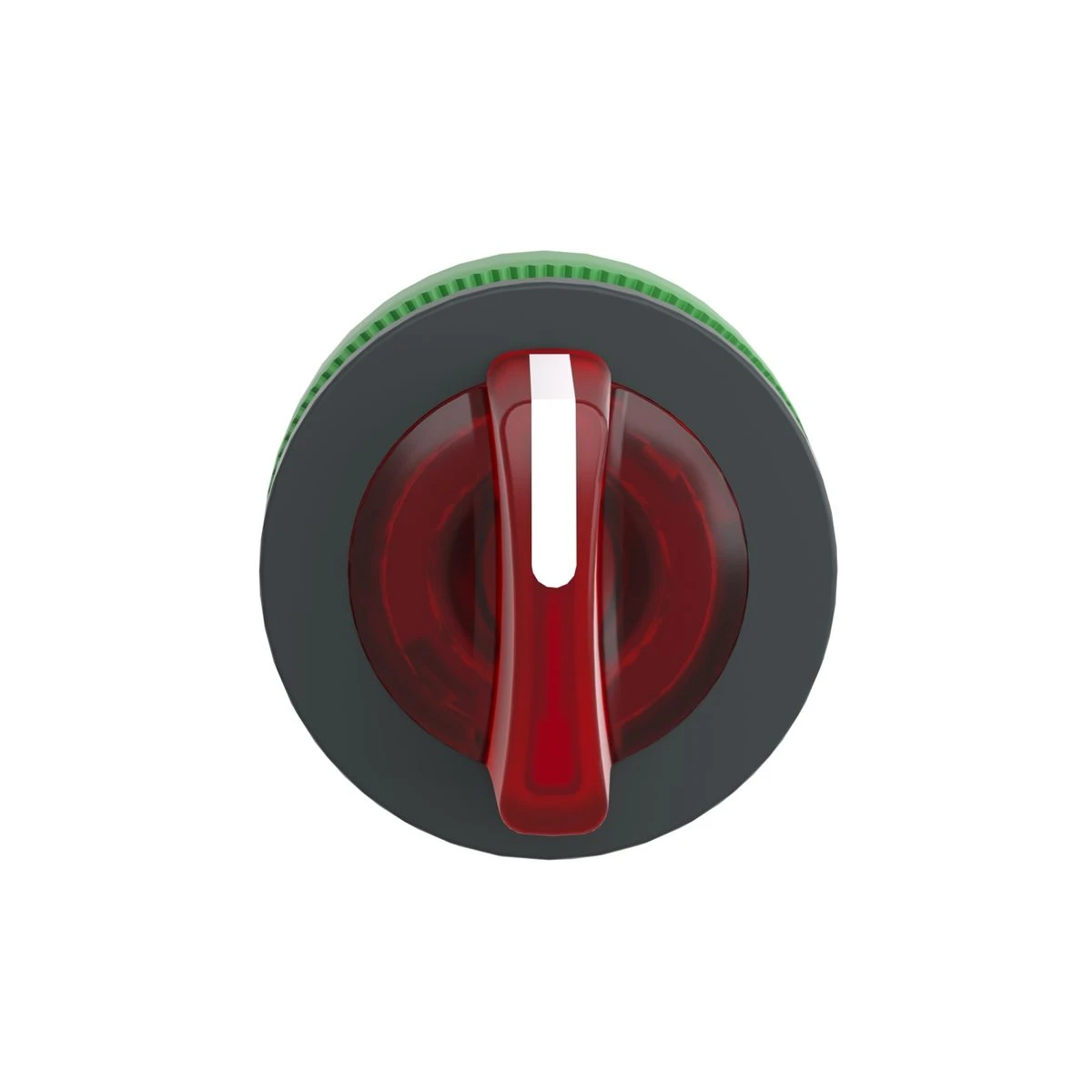

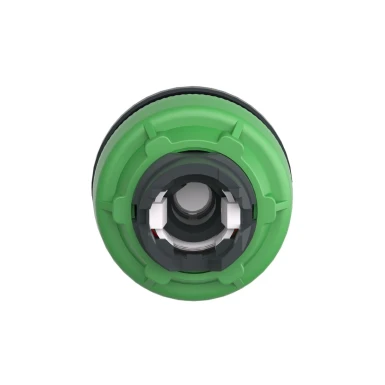

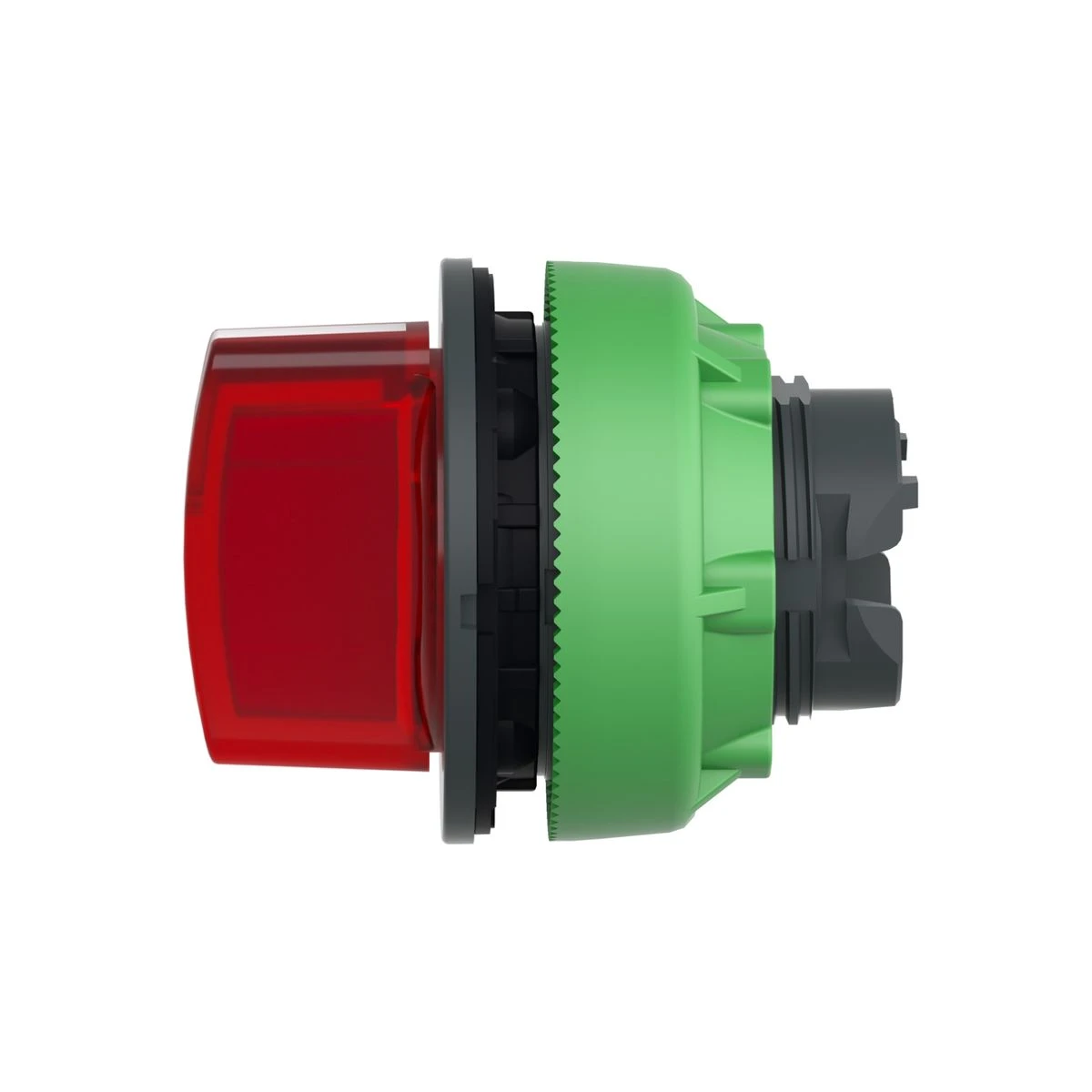

ZB5FK1843 - Head for illuminated selector switch, Harmony XB5, plastic, red handle, universal LED, 3 positions, right to center - Schneider Electric

Expected in 2-4 weeks

ZB5FK1843 - Head for illuminated selector switch, Harmony XB5, plastic, red handle, universal LED, 3 positions, right to center - Schneider Electric

17,83 € excl. VAT

21,75 € incl. VAT

Text About:

Head for illuminated selector switch, Harmony XB5, plastic, red handle, universal LED, 3 positions, right to center - Schneider Electric

In cart

21,75 €

SPECIFICATIONS

Main

Device short name ZB5

head type Built-in-flush

Complementary

electrical composition code M3 for <4 contacts using single blocks in front mounting with integral LED
M6 for <2 contacts using single blocks in front mounting with integral LED and transformer
M10 for <2 contacts using single blocks in front mounting with integral LED
MF1 for <2 contacts using single blocks in front mounting with integral LED
M4 for <4 contacts using single and double blocks in front mounting with integral LED

product compatibility Universal LED

Product certifications BV
CSA
LROS (Lloyds register of shipping)
GL
DNV
UL listed

mounting diameter 30.5 mm

Product or component type Head for illuminated selector switch

nema degree of protection NEMA 13
NEMA 4X

bezel material Dark grey plastic

Cad overall depth 46 mm

Cad overall height 37 mm

Cad overall width 37 mm

Sale per indivisible quantity 1

Type of operator Right to centre spring return

Ik degree of protection IK03 conforming to IEC 50102

Net weight 0.03 kg

mechanical durability 1000000 cycles

Shape of signaling unit head Round

Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m

Operator position information 3 positions +/- 45°

Operator profile Red standard handle

Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP66 conforming to IEC 60529
IP67
IP69
IP69K

Range of product Harmony XB5

ambient air temperature for operation -40…70 °C

overvoltage category Class II conforming to IEC 60536

standards CSA C22.2 No 14
EN/IEC 60947-5-4
EN/IEC 60947-5-1
EN/IEC 60947-5-5
UL 508
JIS C8201-5-1
EN/IEC 60947-1
JIS C8201-1

vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

protective treatment TH
