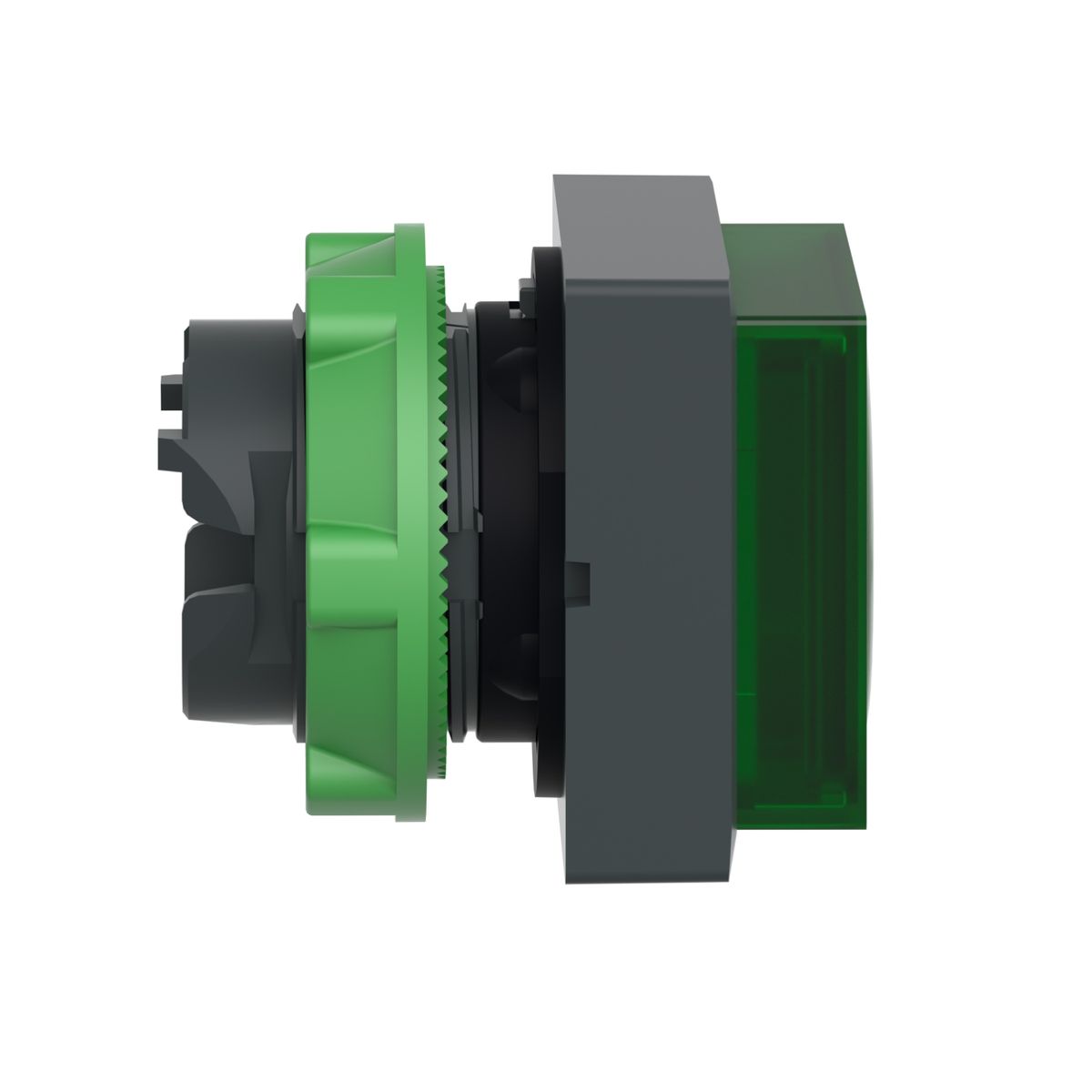

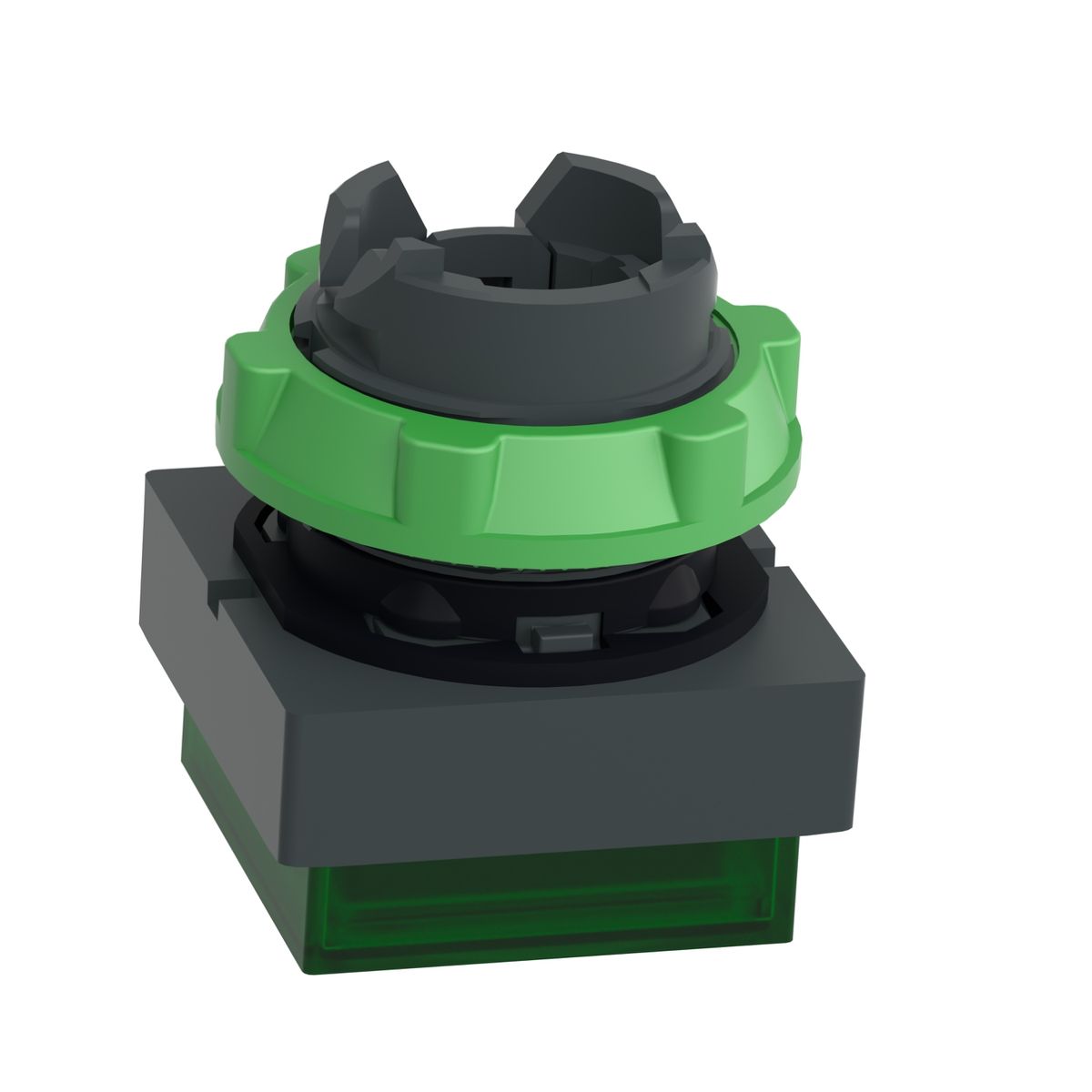

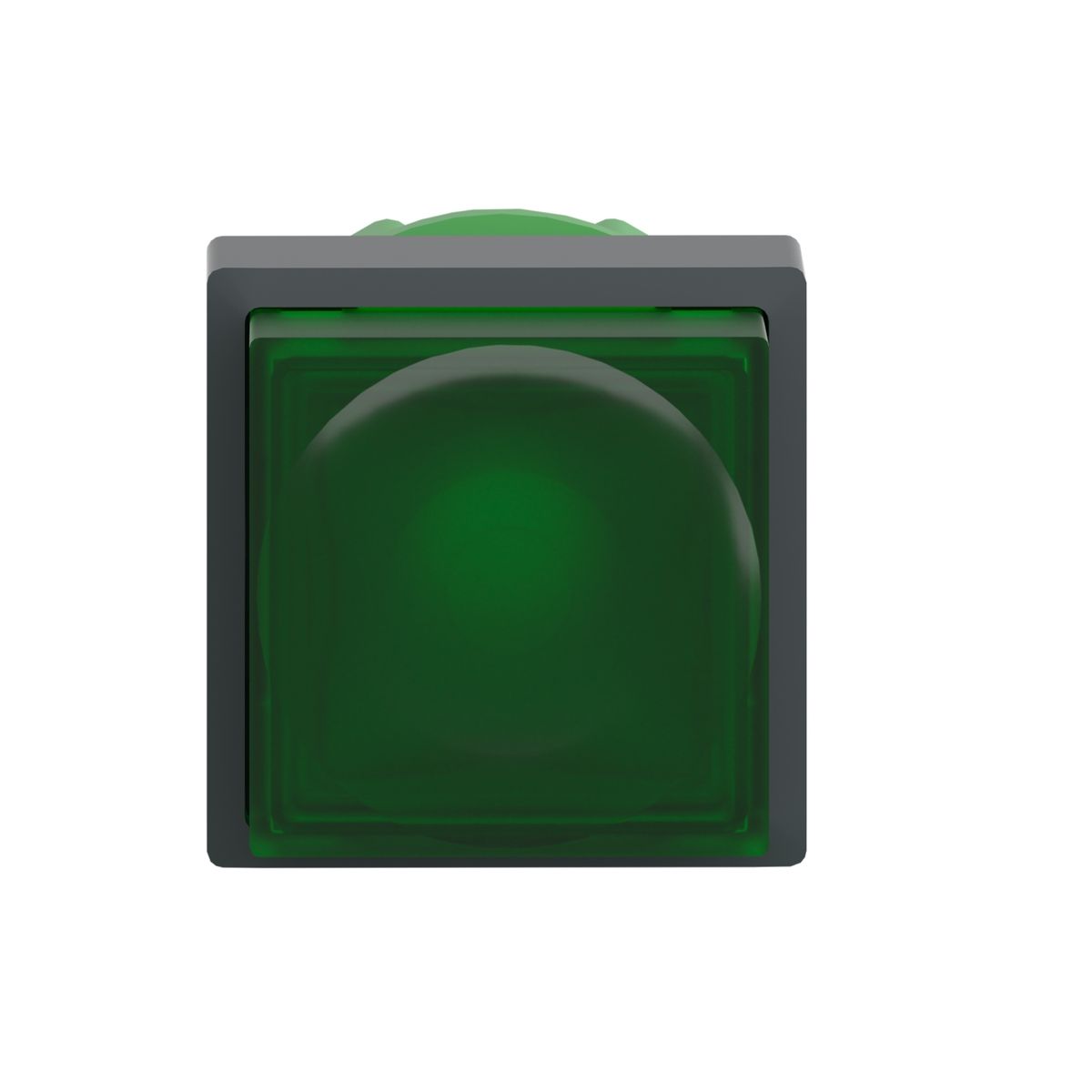

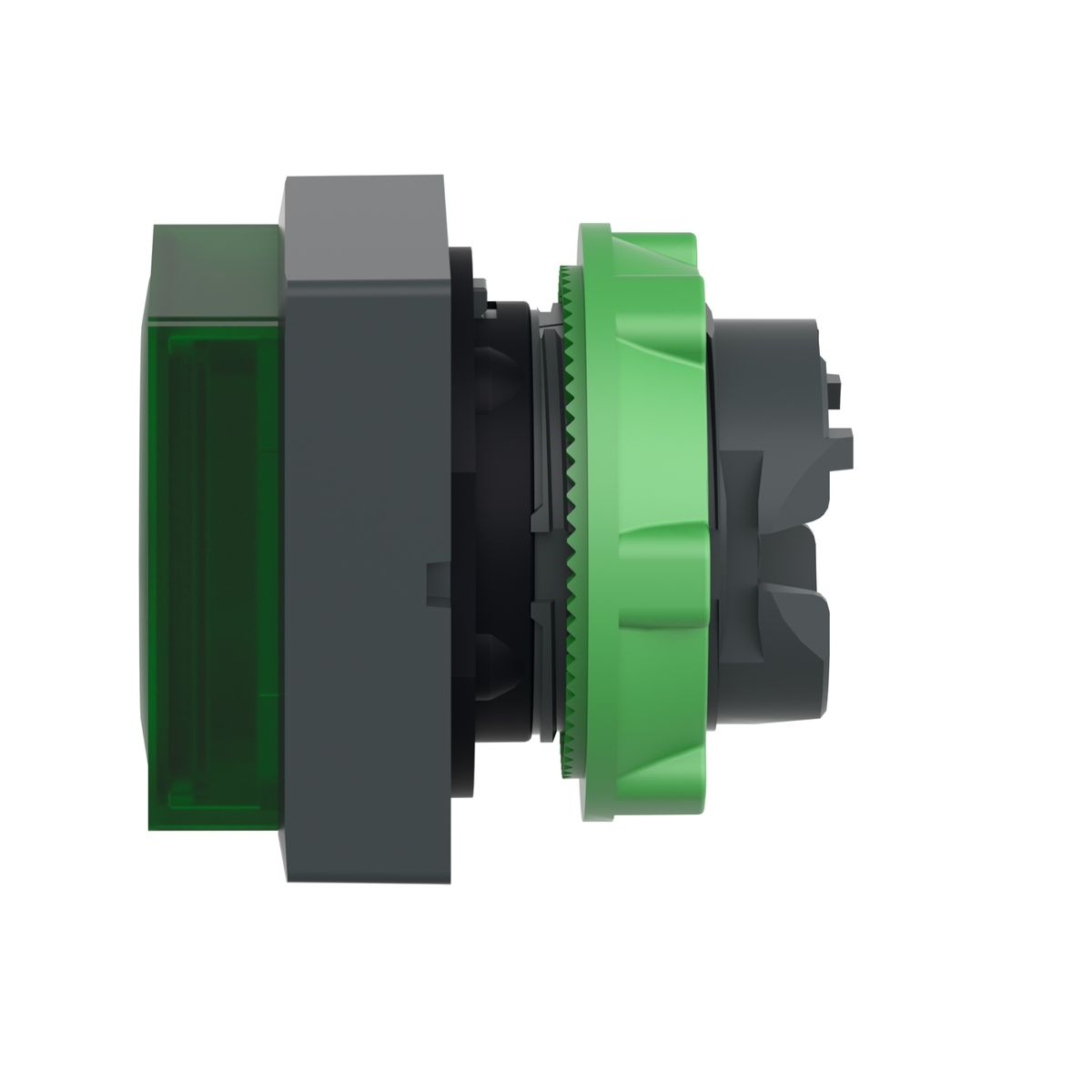

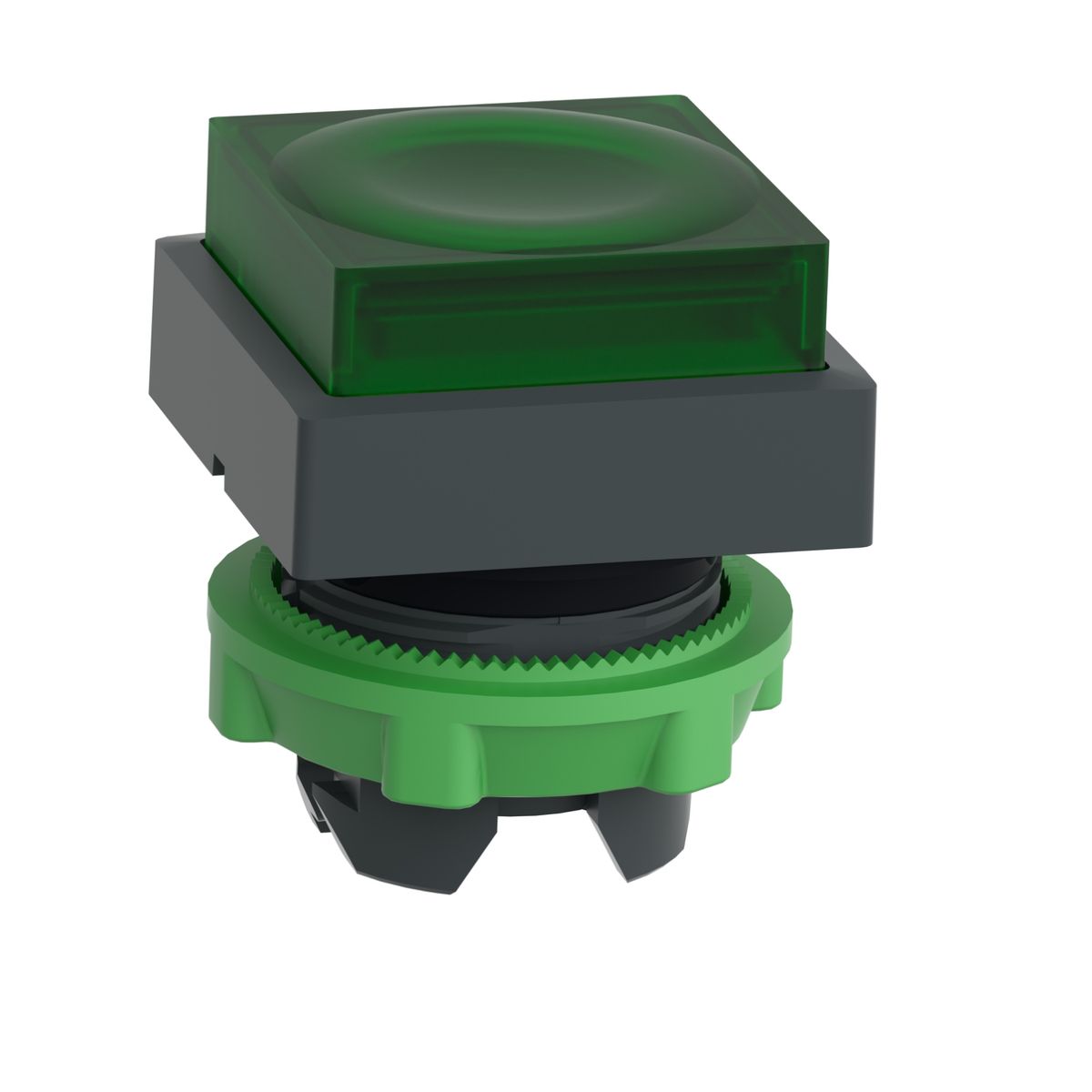

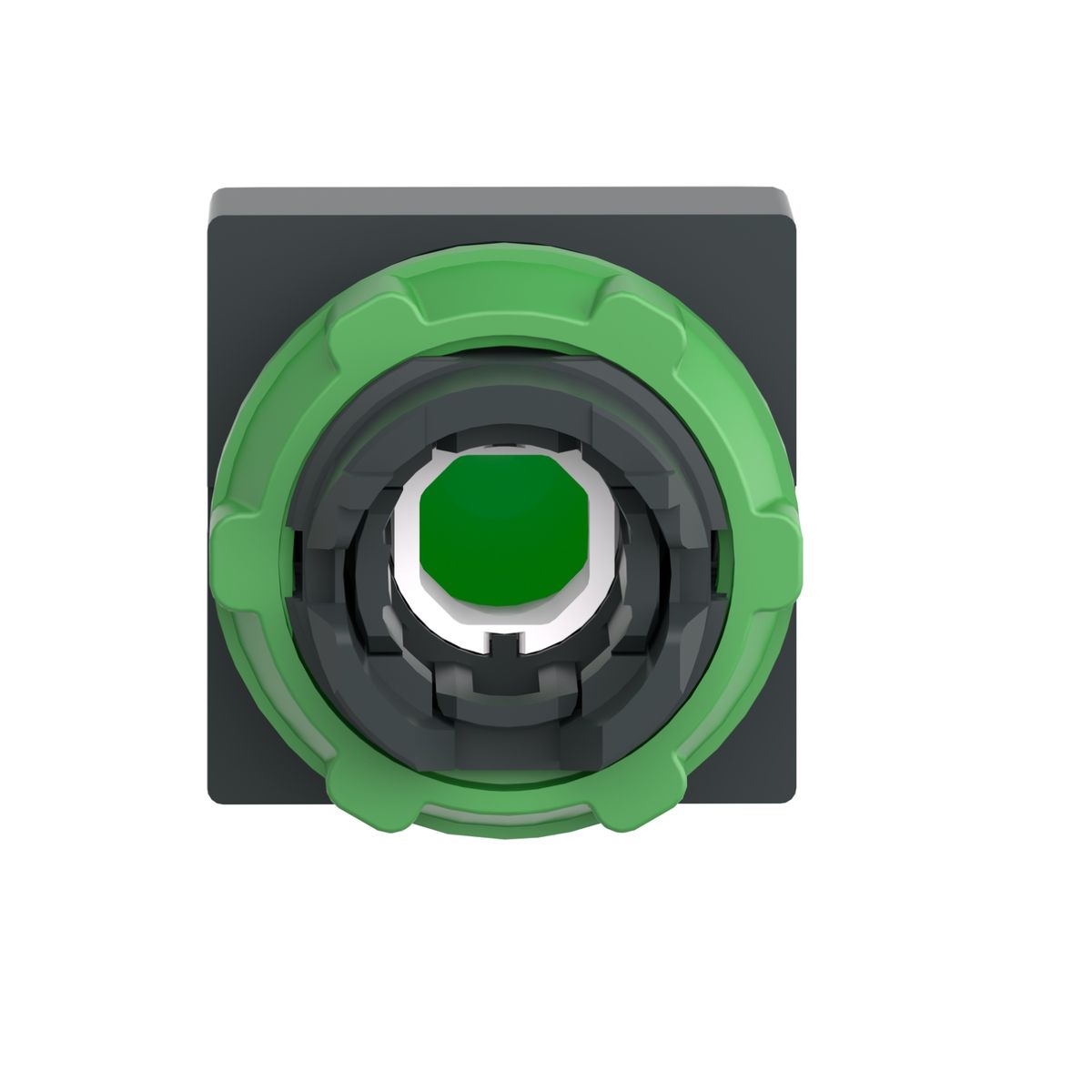

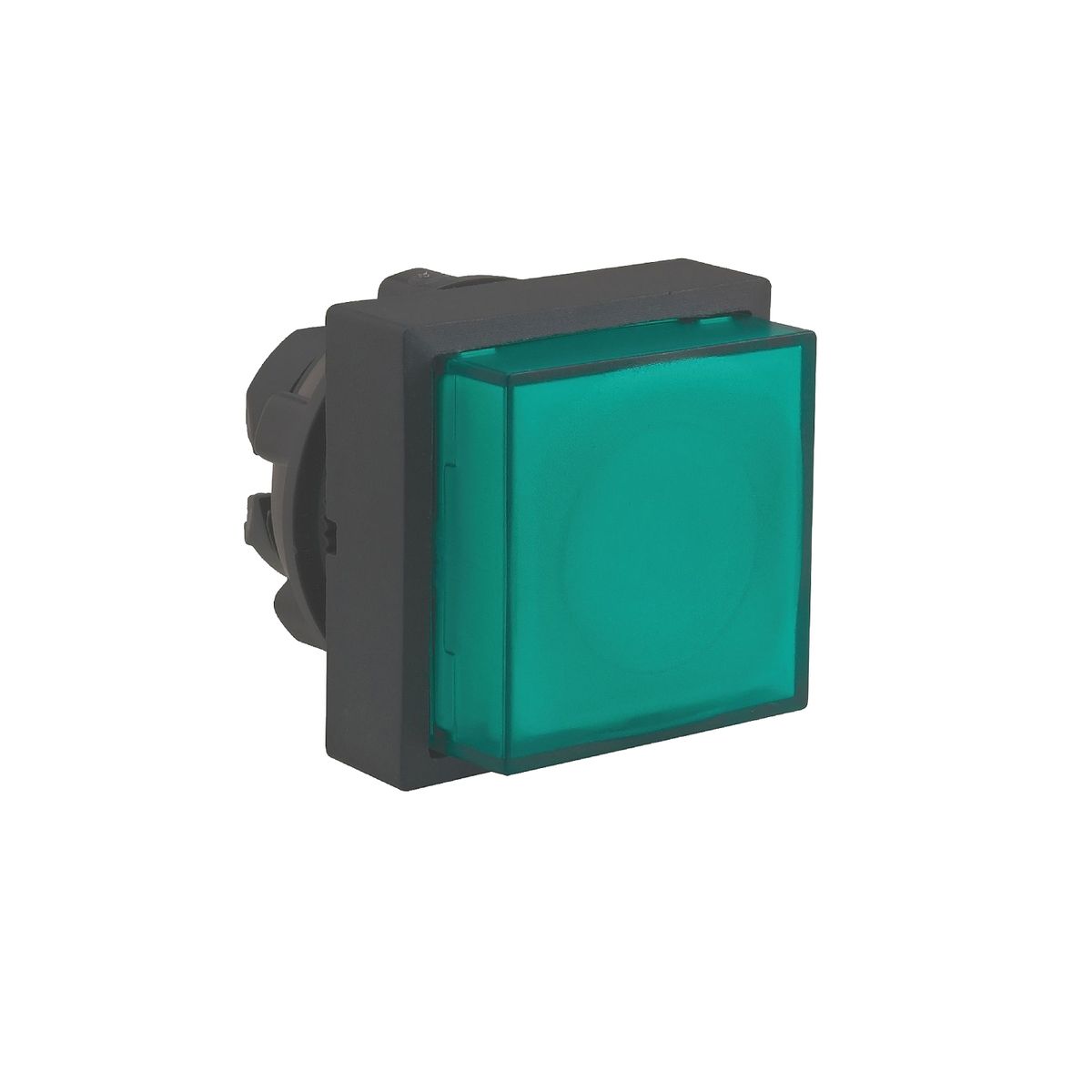

ZB5CW133 - Head for illuminated push button, Harmony XB5, green square projecting, 22mm, universal LED, spring return, unmarked - Schneider Electric

Expected in 2-4 weeks

ZB5CW133 - Head for illuminated push button, Harmony XB5, green square projecting, 22mm, universal LED, spring return, unmarked - Schneider Electric

13,14 € excl. VAT

16,03 € incl. VAT

Text About:

Head for illuminated push button, Harmony XB5, green square projecting, 22mm, universal LED, spring return, unmarked - Schneider Electric

In cart

16,03 €

SPECIFICATIONS

Main

Device short name ZB5

head type Standard

Complementary

electrical composition code M1 for <6 contacts using single blocks in front mounting with integral LED
M2 for <6 contacts using single and double blocks in front mounting with integral LED
M6 for <2 contacts using single blocks in front mounting with integral LED and transformer
M10 for <2 contacts using single blocks in front mounting with integral LED
MF1 for <2 contacts using single blocks in front mounting with integral LED
MR1 for <2 contacts using single blocks in rear mounting with integral LED

product compatibility Universal LED

Cap/operator or lens colour Green

Group of product Proj push integral LED

main group Illum push-button

Product certifications UL listed
LROS (Lloyds register of shipping)
CSA
DNV
GL
BV

mounting diameter 22 mm

Product or component type Head for illuminated push-button

nema degree of protection NEMA 13
NEMA 4X

marking Unmarked

bezel material Dark grey plastic

Cad overall depth 34 mm

Operator additional information For insertion of legend

Cad overall height 30 mm

Cad overall width 30 mm

Sale per indivisible quantity 1

Type of operator spring return

Ik degree of protection IK05 conforming to EN 50102

Net weight 0.024 kg

mechanical durability 10000000 cycles

Device presentation Basic element

Shape of signaling unit head Square

Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m

Operator profile Green projecting, unmarked

Station name XALD 1...5 cut-outs
XALK 2...5 cut-outs

Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP66 conforming to IEC 60529

Range of product Harmony XB5

ambient air temperature for operation -40…70 °C

overvoltage category Class II conforming to IEC 60536

standards GB 14048.5
CSA C22.2 No 14
JIS C8201-5-1
EN/IEC 60947-1
EN/IEC 60947-5-1
EN/IEC 60947-5-4
UL 508
JIS C8201-1

vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

protective treatment TC
