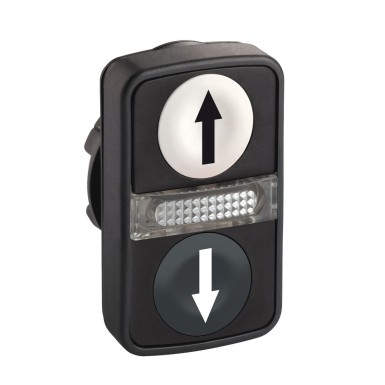

ZB5AW7A1724 - Head for illuminated double headed push button, Harmony XB5, 2 white/black flush, 22mm, 1 central pilot light, marked up/down arrow - Schneider Electric

Expected in 2-4 weeks

13,10 €

Text About:

Head for illuminated double headed push button, Harmony XB5, 2 white/black flush, 22mm, 1 central pilot light, marked up/down arrow - Schneider Electric

In cart

13,10 €

SPECIFICATIONS

Main

Device short name ZB5

head type Standard

Complementary

product compatibility Integral LED

Product certifications BV
CSA
DNV
GL
UL listed
LROS (Lloyds register of shipping)

mounting diameter 22 mm

Product or component type Head for illuminated double-headed push-button

nema degree of protection NEMA 13
NEMA 4X

Colour of marking Black marking when white caps

bezel material Dark grey plastic

Cad overall depth 30 mm

Cad overall height 50 mm

Electrical shock protection class Class II conforming to IEC 60536

Cad overall width 30 mm

Sale per indivisible quantity 1

Type of operator spring return

Ik degree of protection IK05 conforming to IEC 50102

Net weight 0.023 kg

mechanical durability 1000000 cycles

Device presentation Basic sub-assemblies

Shape of signaling unit head Rectangular

Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m

Operator profile White flush, up arrow (black)
Black flush, down arrow (white)

Station name XALD 1 cut-out

Operators description White ''up arrow'' - black ''down arrow''

Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP66
IP67
IP69
IP69K

Range of product Harmony XB5

ambient air temperature for operation -25…70 °C

standards EN/IEC 60947-1
UL 508
JIS C8201-5-1
EN/IEC 60947-5-4
CSA C22.2 No 14
EN/IEC 60947-5-1
JIS C8201-1

vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
