Main
product range
Harmony XB5
name of the device
ZB5
type of product or equipment

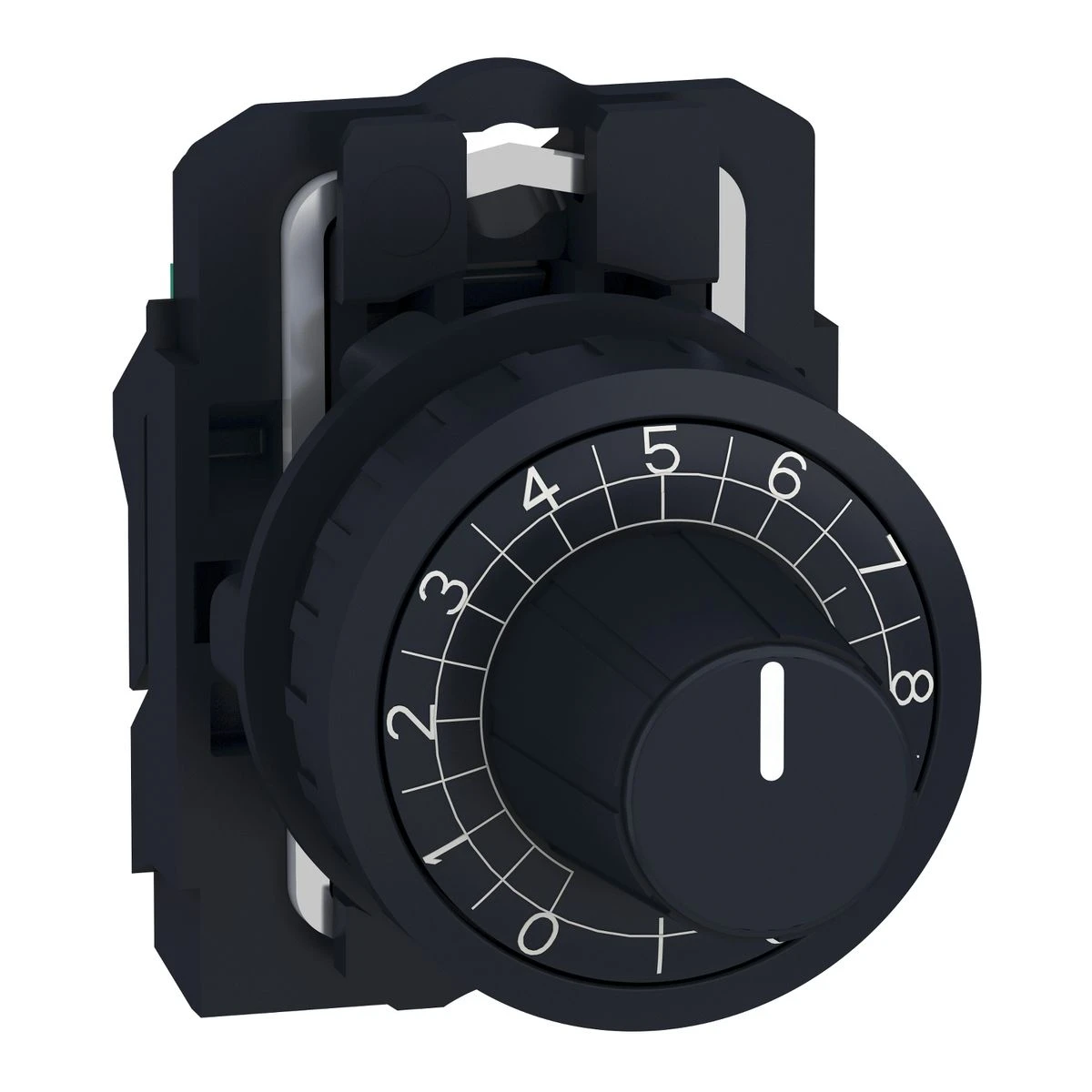

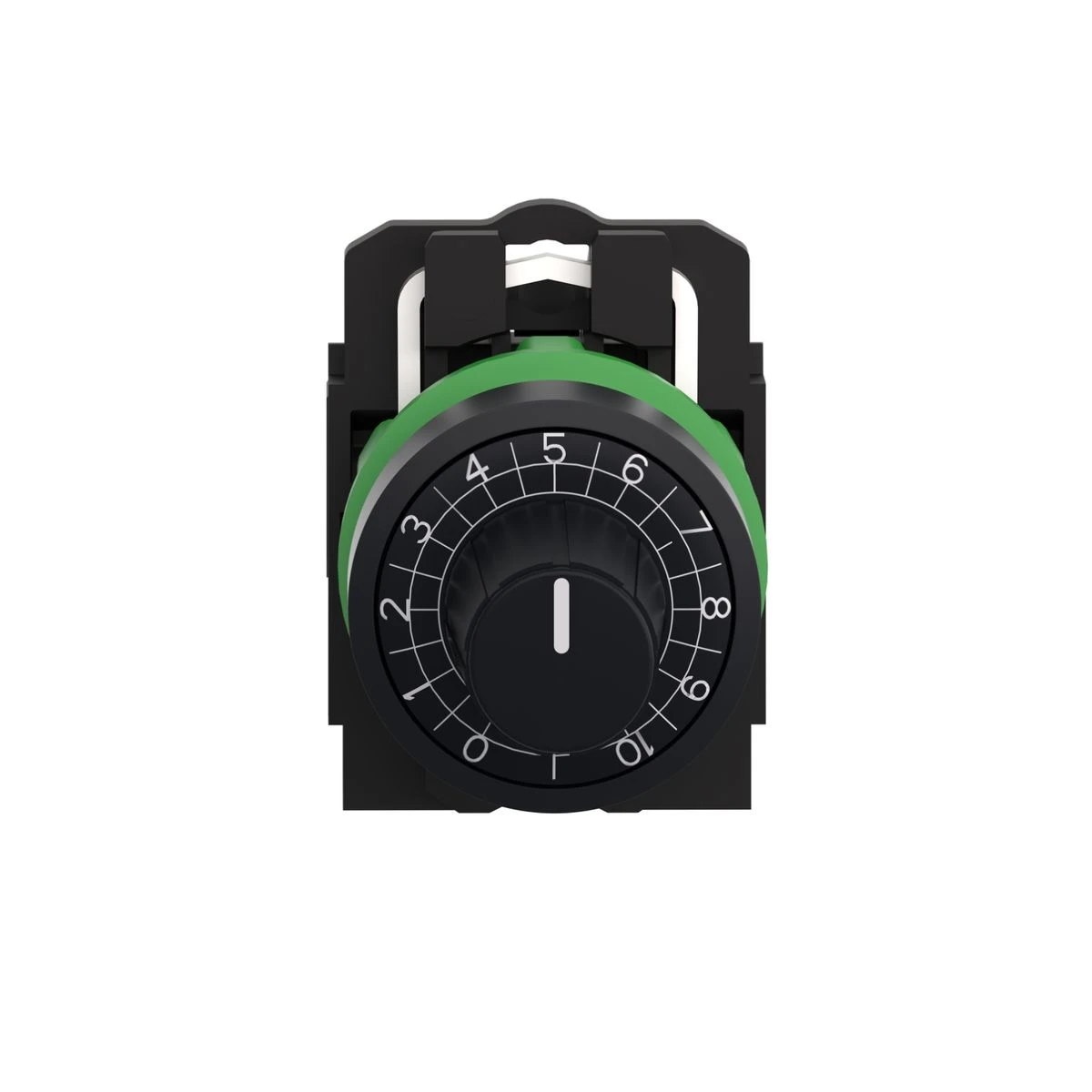

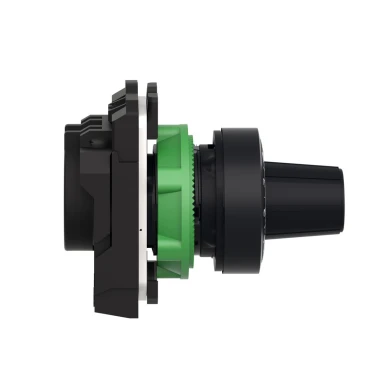

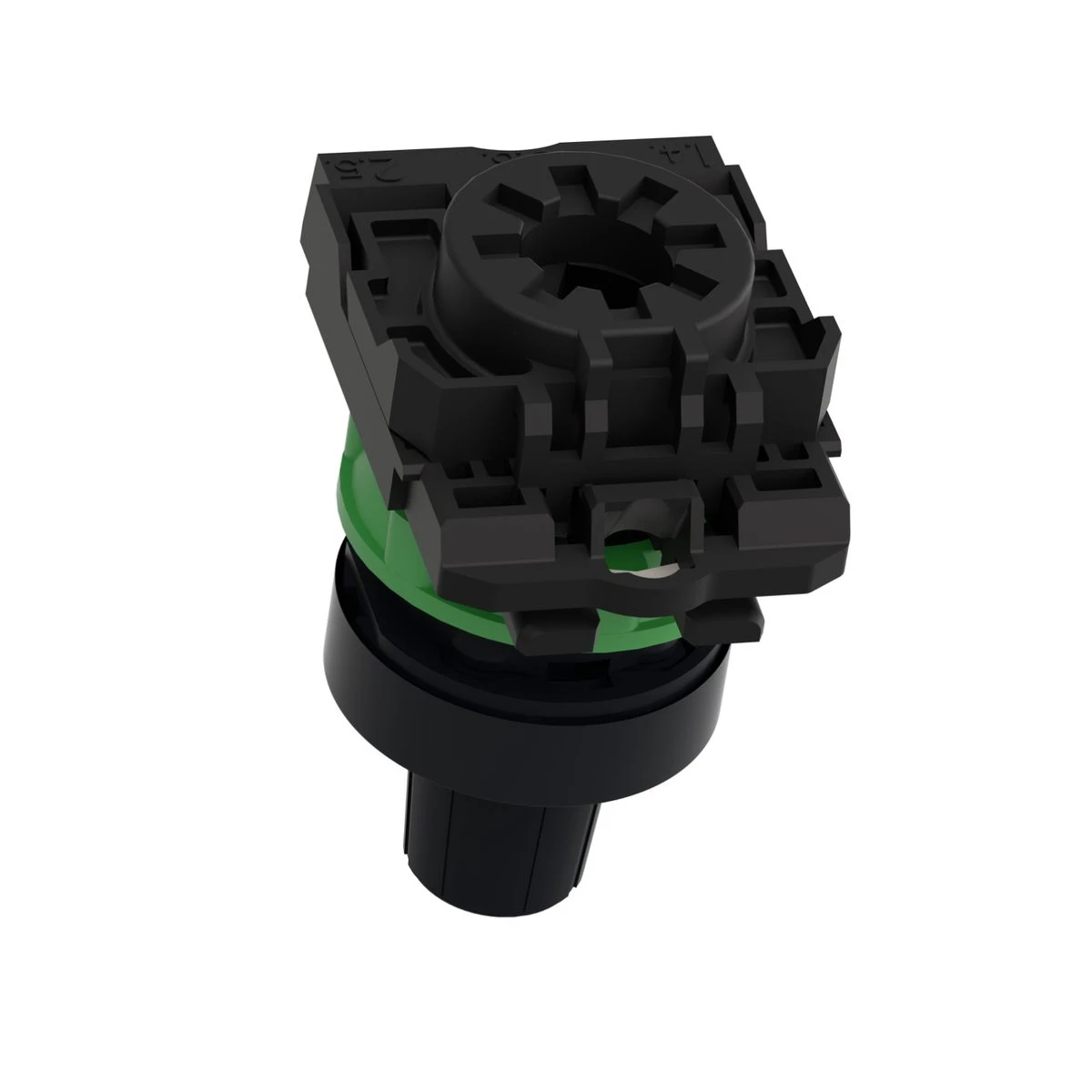

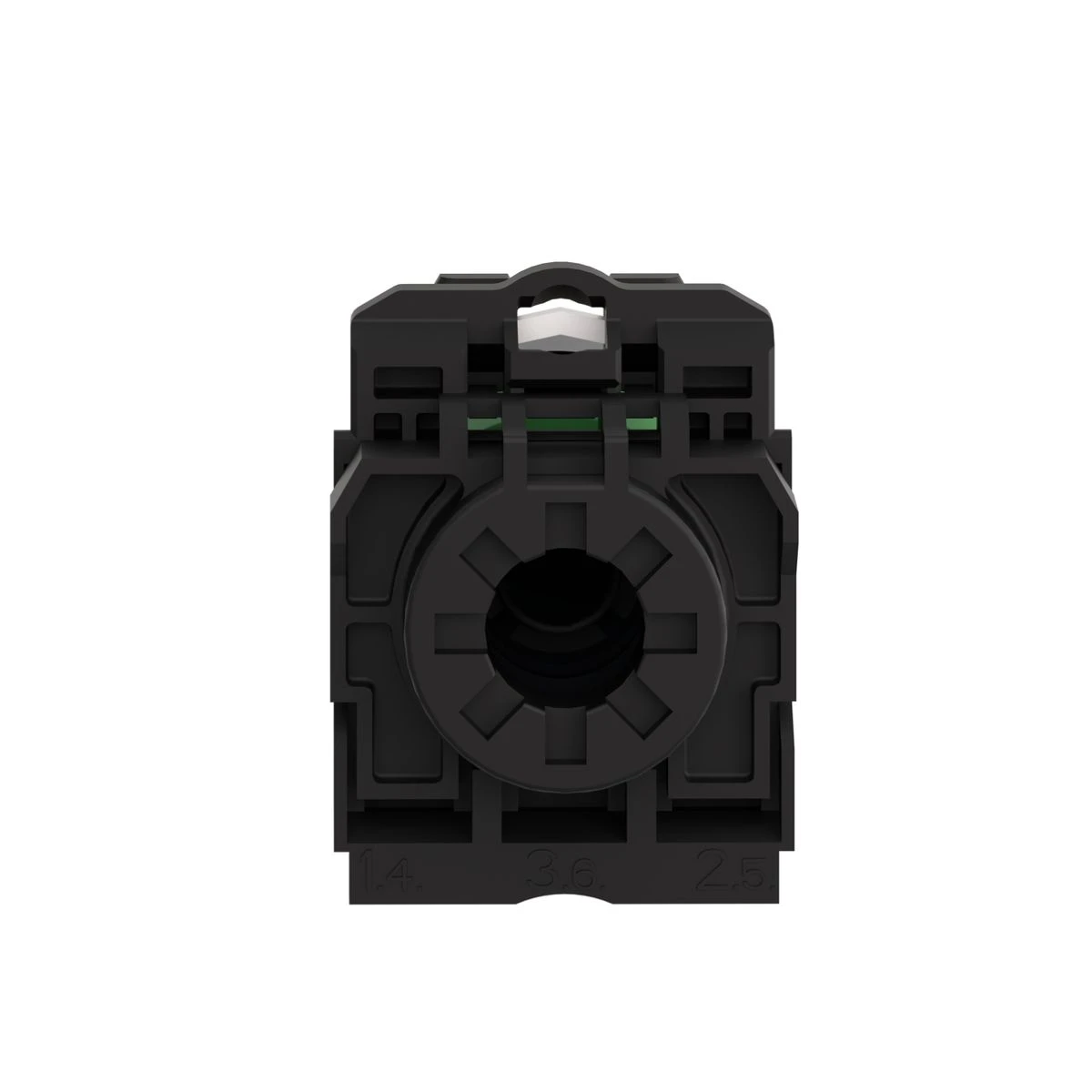

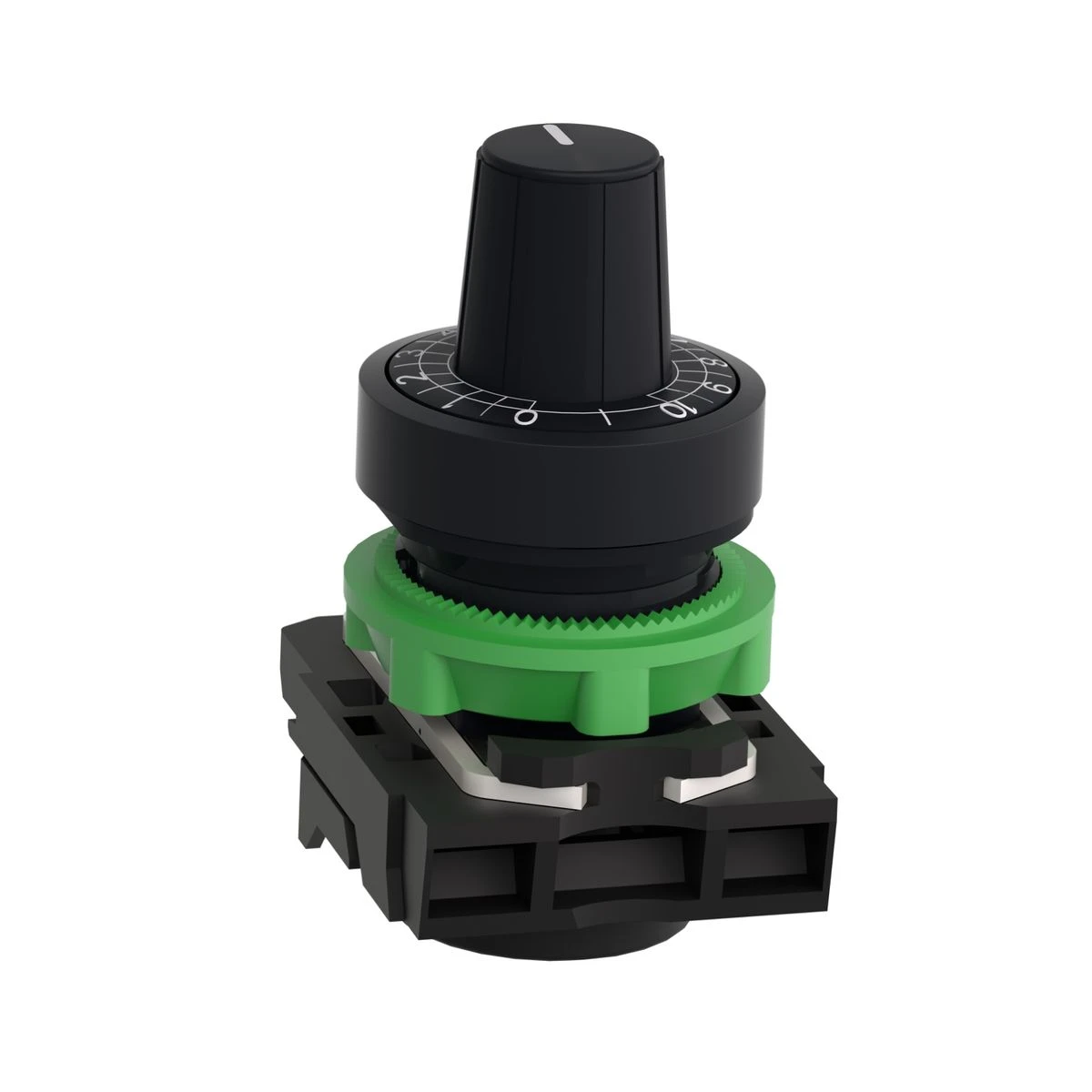

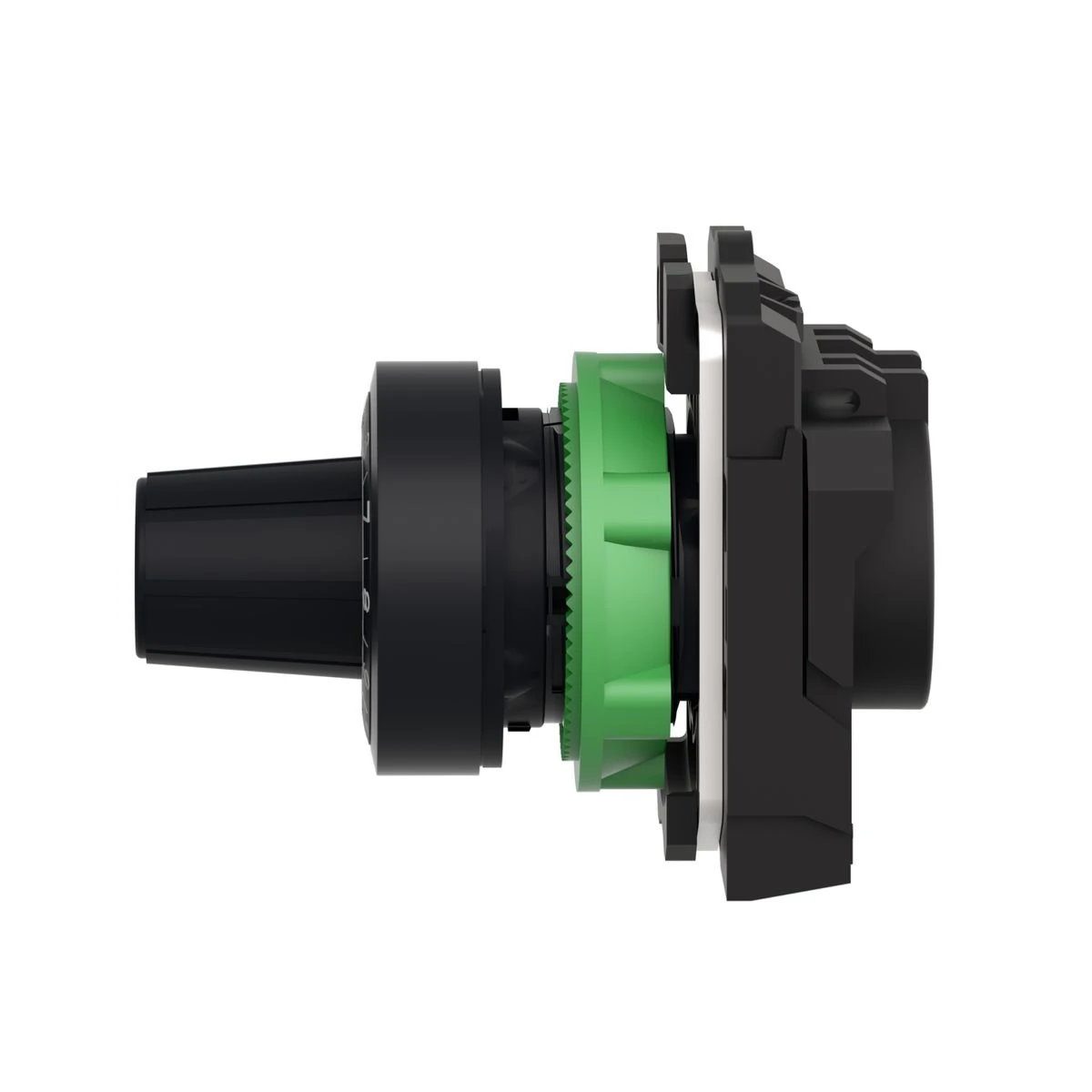

Tête + base de montage pour potentiomètre
sale by indivisible quantity
1
head type
Standard
Complementary
associated accessories
Pour utilisation avec un arbre Ø 6 mm
mounting diameter
22 mm
product weight
0,032 kg
signaling unit head shape
Rond
bezel material
Plastique gris foncé
resistance to high pressure cleaning
7000000 Pa à 55 °C, distance : 0,1 m
control unit profile
bouton à molette, avec (blanc)
product presentation
Élément de base
Environment
ip degree of protection
IP66 se conformer à CEI 60529
product certificates
GL
LROS (Lloyds register of shipping)
listé UL
CSA
DNV
BV
class of protection against electric shock
Classe II se conformer à CEI 60536
operating ambient temperature
-40…70 °C
standards
JIS C8201-5-1
EN/CEI 60947-1
EN/CEI 60947-5-1
UL 508
EN/CEI 60947-5-4
EN/CEI 60947-5-5
CSA C22.2 No 14
JIS C8201-1
shock resistance ik
IK03 se conformer à CEI 50102
storage room temperature
-40…70 °C
mechanical shock resistance
30 gn (durée = 18 ms) pour accélération sur 1/2 sinusoïde se conformer à CEI 60068-2-27
50 gn (durée = 11 ms) pour accélération sur 1/2 sinusoïde se conformer à CEI 60068-2-27
vibration resistance
5 gn (f= 2…500 Hz) se conformer à CEI 60068-2-6
resistance to nema environment
NEMA 13
NEMA 4X
protective treatment
TH
