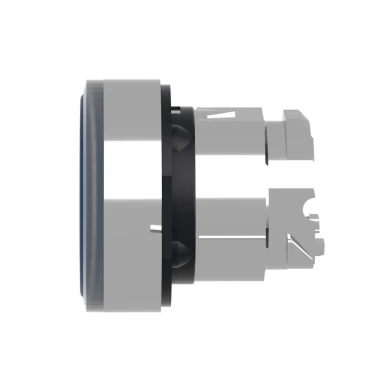

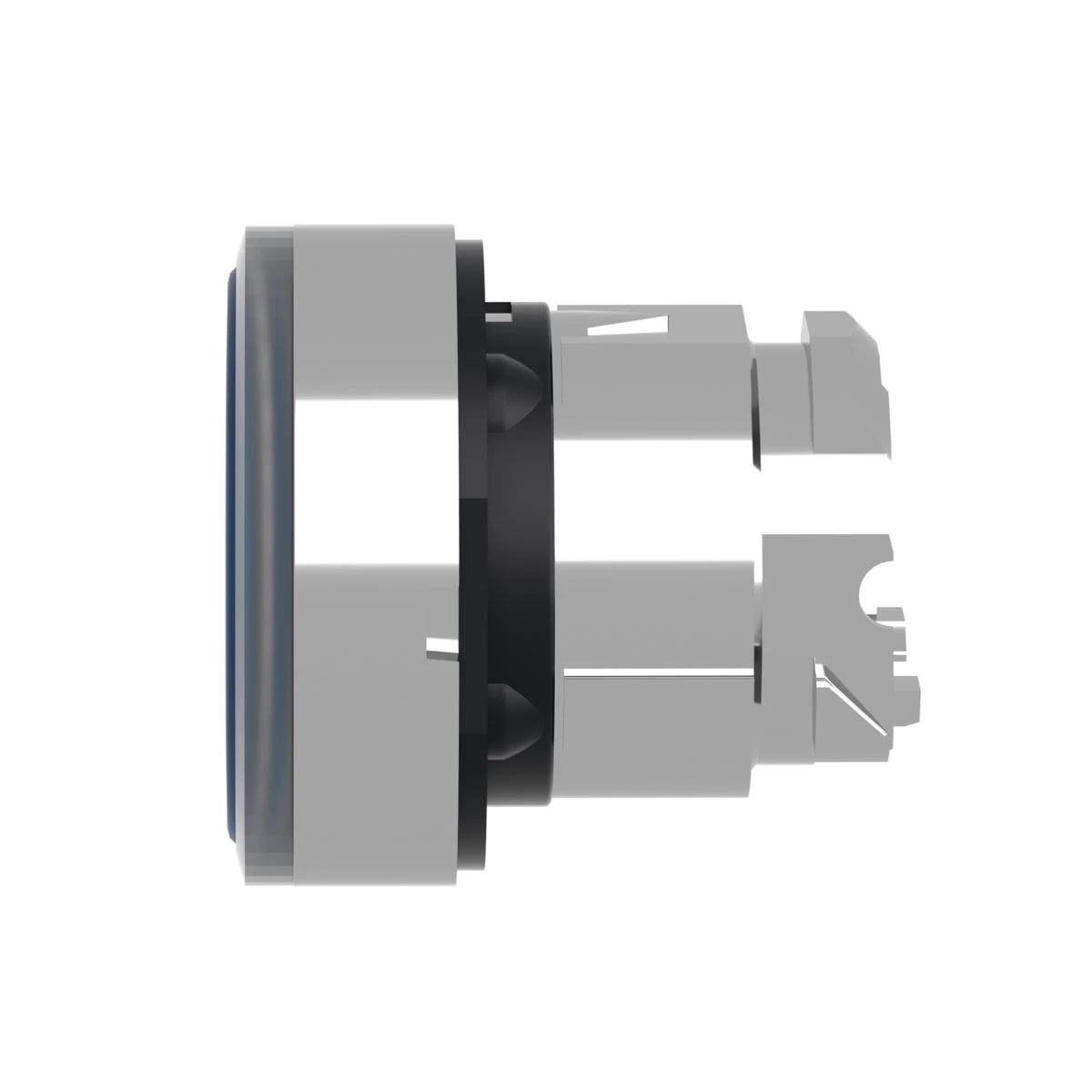

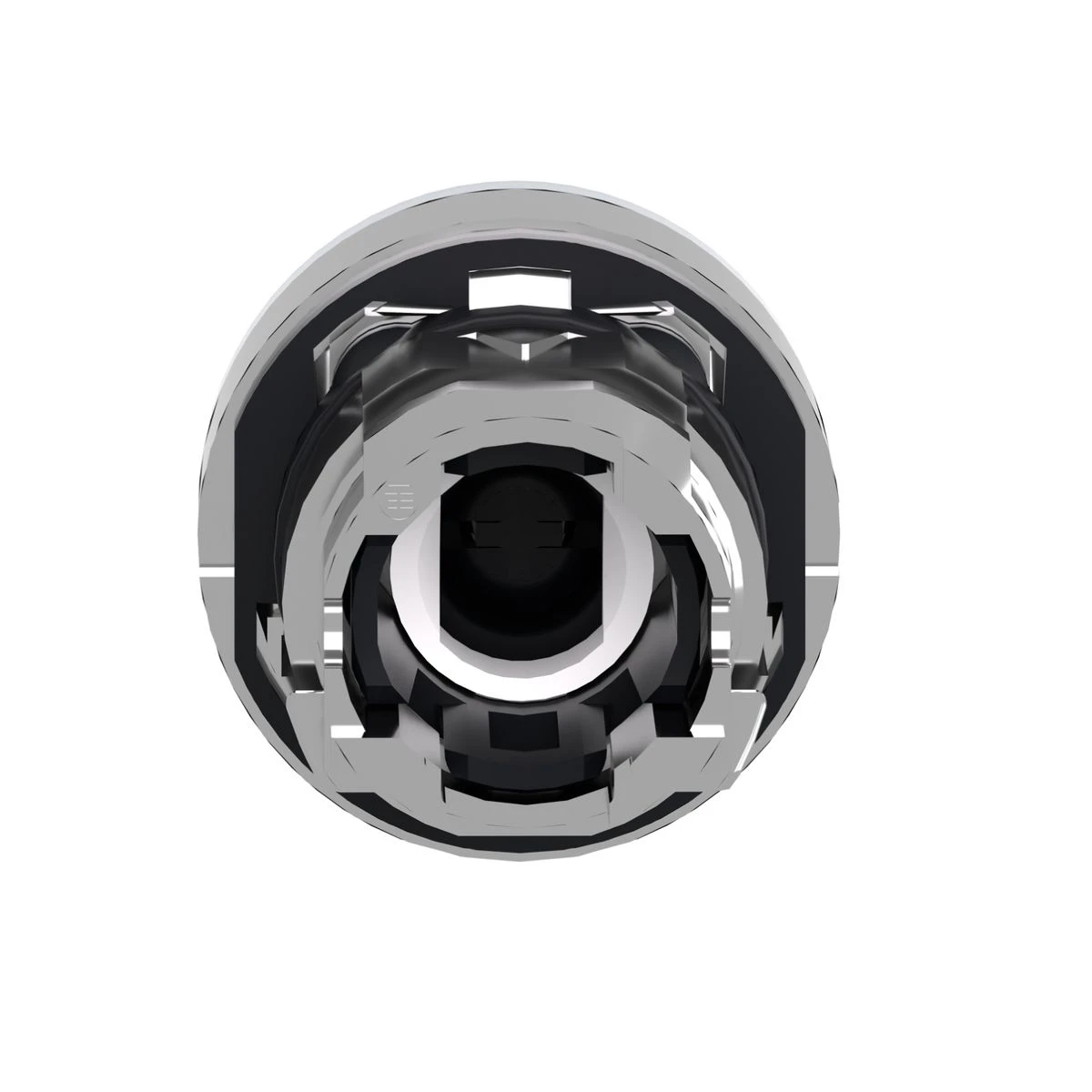

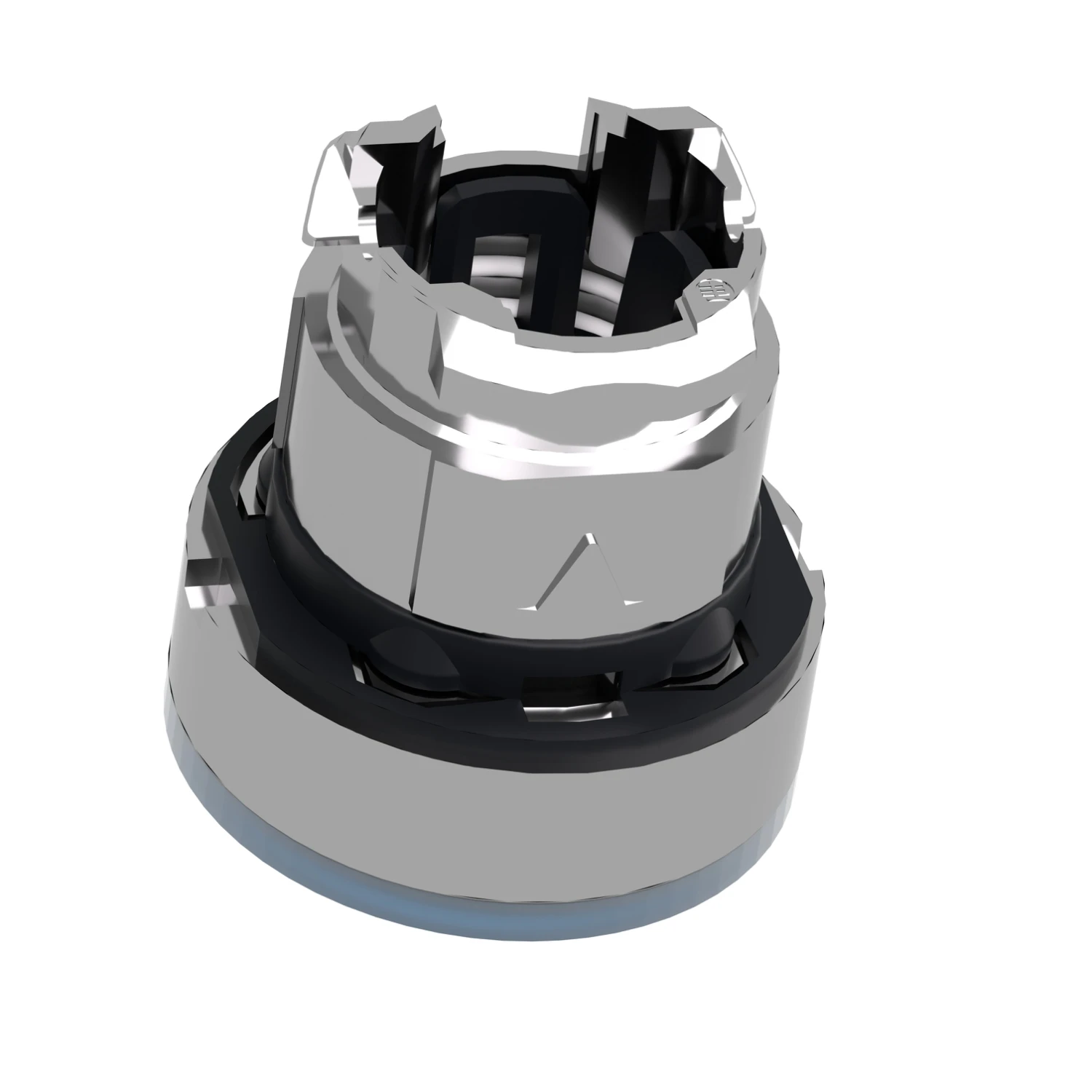

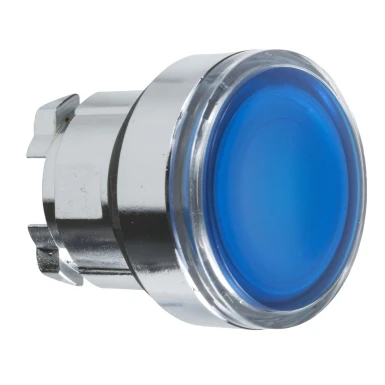

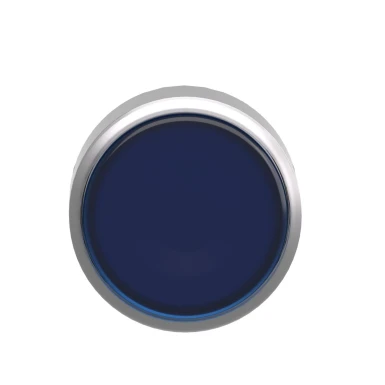

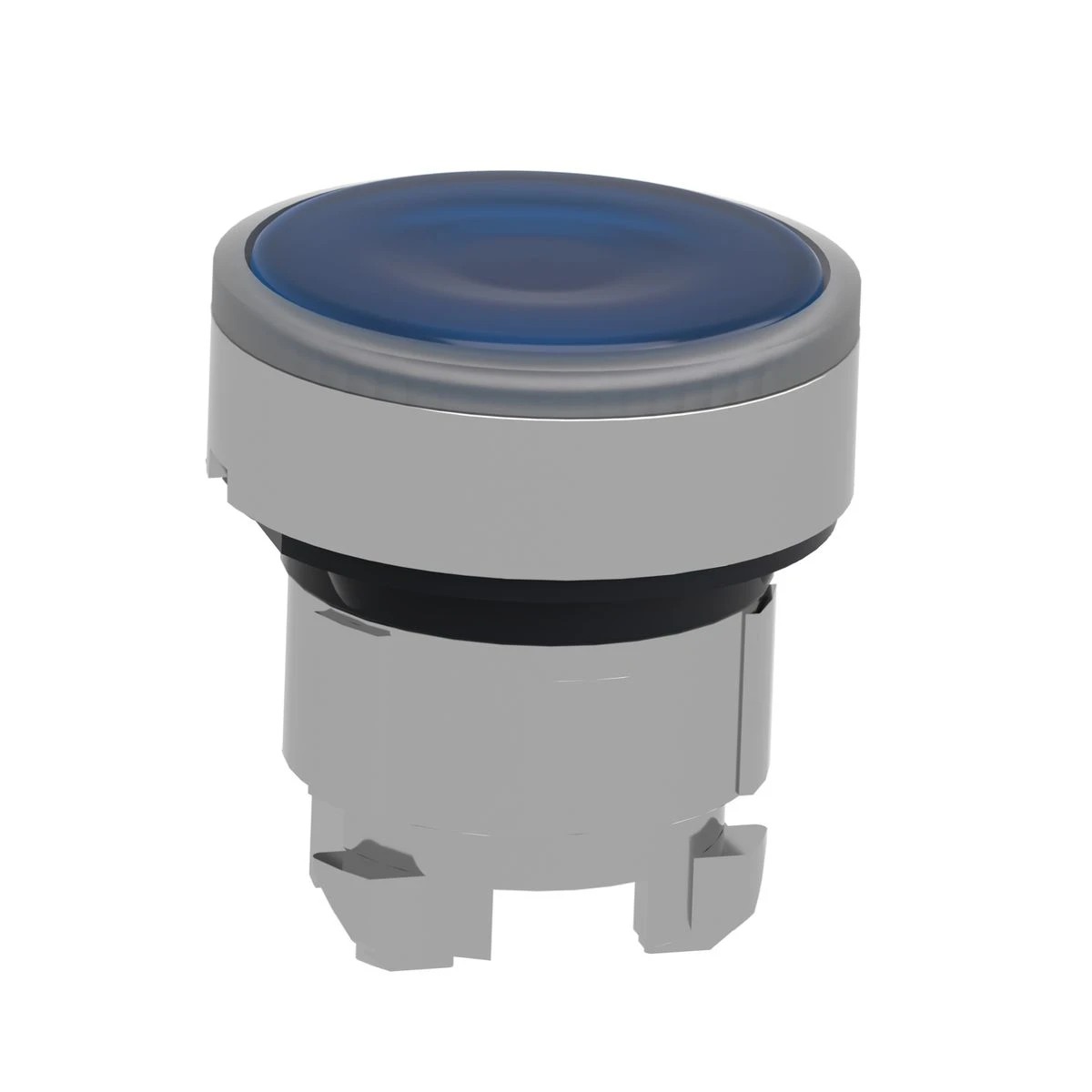

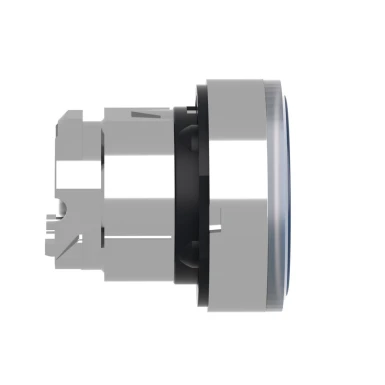

ZB4BW363 - Head for illuminated push button, Harmony XB4, metal, blue flush, 22mm, universal LED, spring return, plan lens, unmarked - Schneider Electric

Pending restock EAN: 3389110889833
ZB4BW363 - Head for illuminated push button, Harmony XB4, metal, blue flush, 22mm, universal LED, spring return, plan lens, unmarked - Schneider Electric - Head for illuminated push button, Harmony XB4, metal, blue flush, 22mm, universal LED, spring return, plan lens, unmarked - Schneider Electric - 0
ZB4BW363 - Head for illuminated push button, Harmony XB4, metal, blue flush, 22mm, universal LED, spring return, plan lens, unmarked - Schneider Electric - Head for illuminated push button, Harmony XB4, metal, blue flush, 22mm, universal LED, spring return, plan lens, unmarked - Schneider Electric - 1
ZB4BW363 - Head for illuminated push button, Harmony XB4, metal, blue flush, 22mm, universal LED, spring return, plan lens, unmarked - Schneider Electric - Head for illuminated push button, Harmony XB4, metal, blue flush, 22mm, universal LED, spring return, plan lens, unmarked - Schneider Electric - 2
ZB4BW363 - Head for illuminated push button, Harmony XB4, metal, blue flush, 22mm, universal LED, spring return, plan lens, unmarked - Schneider Electric - Head for illuminated push button, Harmony XB4, metal, blue flush, 22mm, universal LED, spring return, plan lens, unmarked - Schneider Electric - 3
ZB4BW363 - Head for illuminated push button, Harmony XB4, metal, blue flush, 22mm, universal LED, spring return, plan lens, unmarked - Schneider Electric - Head for illuminated push button, Harmony XB4, metal, blue flush, 22mm, universal LED, spring return, plan lens, unmarked - Schneider Electric - 4
ZB4BW363 - Head for illuminated push button, Harmony XB4, metal, blue flush, 22mm, universal LED, spring return, plan lens, unmarked - Schneider Electric - Head for illuminated push button, Harmony XB4, metal, blue flush, 22mm, universal LED, spring return, plan lens, unmarked - Schneider Electric - 5
ZB4BW363 - Head for illuminated push button, Harmony XB4, metal, blue flush, 22mm, universal LED, spring return, plan lens, unmarked - Schneider Electric - Head for illuminated push button, Harmony XB4, metal, blue flush, 22mm, universal LED, spring return, plan lens, unmarked - Schneider Electric - 6
ZB4BW363 - Head for illuminated push button, Harmony XB4, metal, blue flush, 22mm, universal LED, spring return, plan lens, unmarked - Schneider Electric - Head for illuminated push button, Harmony XB4, metal, blue flush, 22mm, universal LED, spring return, plan lens, unmarked - Schneider Electric - 0
ZB4BW363 - Head for illuminated push button, Harmony XB4, metal, blue flush, 22mm, universal LED, spring return, plan lens, unmarked - Schneider Electric - Head for illuminated push button, Harmony XB4, metal, blue flush, 22mm, universal LED, spring return, plan lens, unmarked - Schneider Electric - 1
ZB4BW363 - Head for illuminated push button, Harmony XB4, metal, blue flush, 22mm, universal LED, spring return, plan lens, unmarked - Schneider Electric - Head for illuminated push button, Harmony XB4, metal, blue flush, 22mm, universal LED, spring return, plan lens, unmarked - Schneider Electric - 2
ZB4BW363 - Head for illuminated push button, Harmony XB4, metal, blue flush, 22mm, universal LED, spring return, plan lens, unmarked - Schneider Electric - Head for illuminated push button, Harmony XB4, metal, blue flush, 22mm, universal LED, spring return, plan lens, unmarked - Schneider Electric - 3
ZB4BW363 - Head for illuminated push button, Harmony XB4, metal, blue flush, 22mm, universal LED, spring return, plan lens, unmarked - Schneider Electric - Head for illuminated push button, Harmony XB4, metal, blue flush, 22mm, universal LED, spring return, plan lens, unmarked - Schneider Electric - 4
ZB4BW363 - Head for illuminated push button, Harmony XB4, metal, blue flush, 22mm, universal LED, spring return, plan lens, unmarked - Schneider Electric - Head for illuminated push button, Harmony XB4, metal, blue flush, 22mm, universal LED, spring return, plan lens, unmarked - Schneider Electric - 5
ZB4BW363 - Head for illuminated push button, Harmony XB4, metal, blue flush, 22mm, universal LED, spring return, plan lens, unmarked - Schneider Electric - Head for illuminated push button, Harmony XB4, metal, blue flush, 22mm, universal LED, spring return, plan lens, unmarked - Schneider Electric - 6
EAN: 3389110889833
ZB4BW363 - Head for illuminated push button, Harmony XB4, metal, blue flush, 22mm, universal LED, spring return, plan lens, unmarked - Schneider Electric
6,76 € excl. VAT
8,38 € incl. VAT
Text About:
Head for illuminated push button, Harmony XB4, metal, blue flush, 22mm, universal LED, spring return, plan lens, unmarked - Schneider Electric
 In cart
8,38 €
SPECIFICATIONS
Main
product range Harmony XB4
name of the device ZB4
type of product or equipment Tête de bouton-poussoir lumineux
control unit type rappel à ressort
sale by indivisible quantity 1
head type Standard
Complementary
associated accessories Universal LED
electrical composition code M1 pour <6 contacts à l'aide deunique blocs dans montage avant avec DEL intégrale
M2 pour <6 contacts à l'aide desimple et double blocs dans montage avant avec DEL intégrale
M6 pour <2 contacts à l'aide deunique blocs dans montage avant avec DEL intégrale et transformateur
M10 pour <2 contacts à l'aide deunique blocs dans montage avant avec DEL intégrale
mounting diameter 22 mm
product weight 0,026 kg
signaling unit head shape Rond
bezel material Métal plaqué chrome
resistance to high pressure cleaning 7000000 Pa à 55 °C, distance : 0,1 m
mechanical endurance 10000000 cycle
control unit profile Bleu affleurant, non marqué
overall height cao 29 mm
product presentation Sous-ensembles de base
additional control unit info Avec lentille normale
overall width cao 29 mm
overall depth cao 30 mm
Environment
ip degree of protection IP66 se conformer à CEI 60529
IP67
IP69
IP69K
product certificates listé UL
BV
CSA
LROS (Lloyds register of shipping)
GL
DNV
operating ambient temperature -40…70 °C
overvoltage category Classe I se conformer à CEI 60536
standards UL 508
EN/CEI 60947-5-5
EN/CEI 60947-1
CSA C22.2 No 14
EN/CEI 60947-5-1
EN/CEI 60947-5-4
JIS C8201-5-1
JIS C8201-1
shock resistance ik IK06 se conformer à EN 50102
storage room temperature -40…70 °C
mechanical shock resistance 30 gn (durée = 18 ms) pour accélération sur 1/2 sinusoïde se conformer à CEI 60068-2-27
50 gn (durée = 11 ms) pour accélération sur 1/2 sinusoïde se conformer à CEI 60068-2-27
vibration resistance 5 gn (f= 2…500 Hz) se conformer à CEI 60068-2-6
resistance to nema environment NEMA 13
NEMA 4X
protective treatment TH
