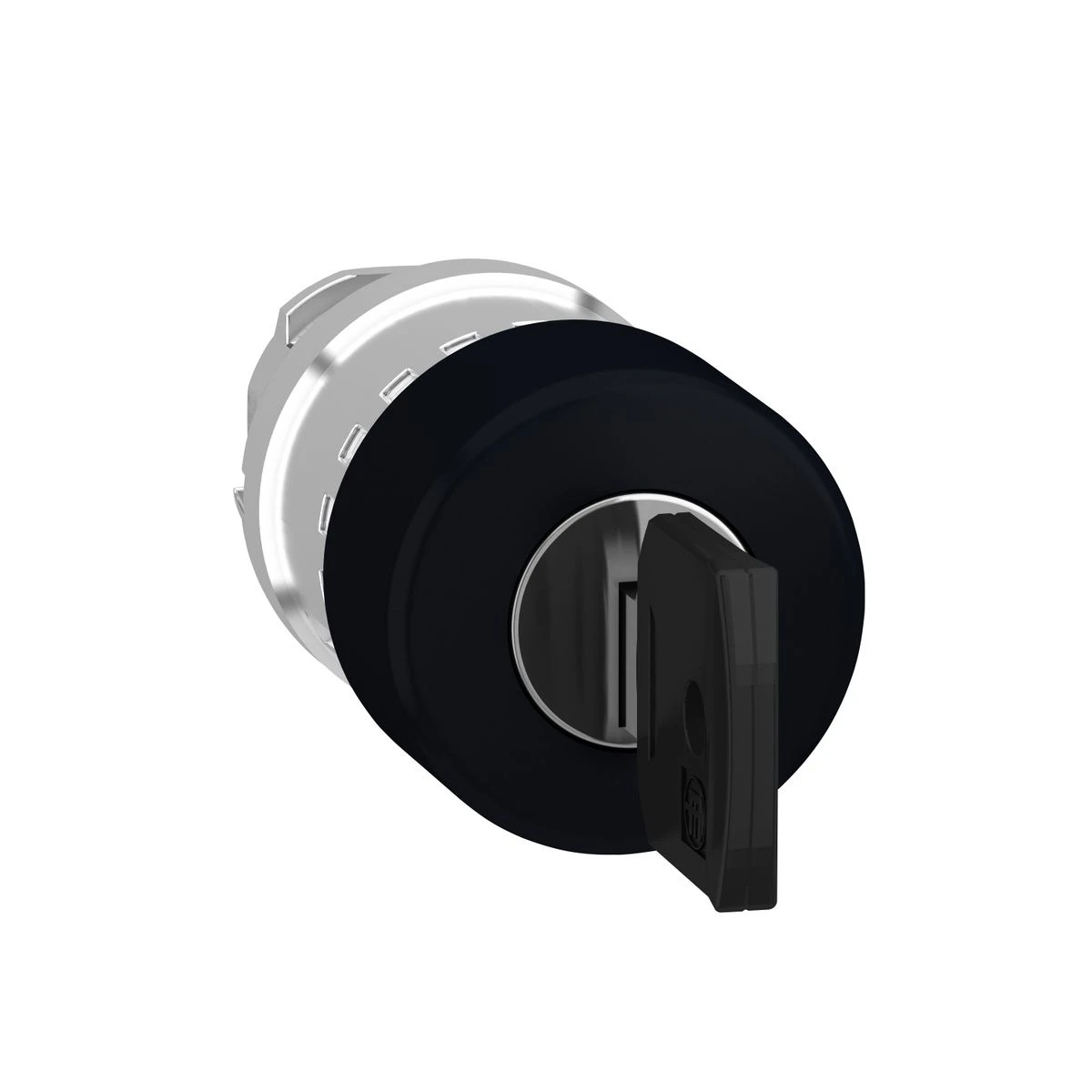

ZB4BS72 - Head for non illuminated push button, Harmony XB4, XB5, black Ш 30 mushroom pushbutton Ш22 mm latching key release - Schneider Electric
Expected in 2-4 weeks
33,90 €
Text About:
Head for non illuminated push button, Harmony XB4, XB5, black Ш 30 mushroom pushbutton Ш22 mm latching key release - Schneider Electric
SPECIFICATIONS
Main
Device short name
ZB4
reset
Key release
head type
Standard
Complementary
electrical composition code
C11 for <3 contacts using single blocks in front mounting
C15 for <1 contacts using single blocks in front mounting
C7 for <4 contacts using single blocks in front mounting
C8 for <4 contacts using single and double blocks in front mounting
C10 for <4 contacts using single and double blocks in front mounting
C15 for <1 contacts using single blocks in front mounting
C7 for <4 contacts using single blocks in front mounting
C8 for <4 contacts using single and double blocks in front mounting
C10 for <4 contacts using single and double blocks in front mounting
Product certifications
GL
UL listed
DNV
CSA
BV
LROS (Lloyds register of shipping)
UL listed
DNV
CSA
BV
LROS (Lloyds register of shipping)
mounting diameter
22 mm
Product or component type
Head for non-illuminated push-button
nema degree of protection
NEMA 13
NEMA 4X
NEMA 4X
bezel material
Chromium plated metal
Cad overall depth
79 mm
Cad overall height
30 mm
Cad overall width
30 mm
Sale per indivisible quantity
1
Type of operator
latching
Ik degree of protection
IK03 conforming to IEC 50102
Net weight
0.066 kg
mechanical durability
500000 cycles
key withdrawal position
Center
Device presentation
Basic element
Shape of signaling unit head
Round
Operator profile
Black mushroom Ø 30 mm, unmarked
Shock resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Type of keylock
Key 455
Environment
Ambient air temp for storage/transportation
-40…70 °C
ip degree of protection
IP66 conforming to IEC 60529
IP67
IP69
IP69K
IP67
IP69
IP69K
Range of product
Harmony XB4
ambient air temperature for operation
-40…70 °C
overvoltage category
Class I conforming to IEC 60536
standards
EN/IEC 60947-5-1
EN/IEC 60947-5-4
EN/IEC 60947-1
EN/IEC 60947-5-5
CSA C22.2 No 14
JIS C8201-5-1
UL 508
JIS C8201-1
EN/IEC 60947-5-4
EN/IEC 60947-1
EN/IEC 60947-5-5
CSA C22.2 No 14
JIS C8201-5-1
UL 508
JIS C8201-1
vibration resistance
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
protective treatment
TH
