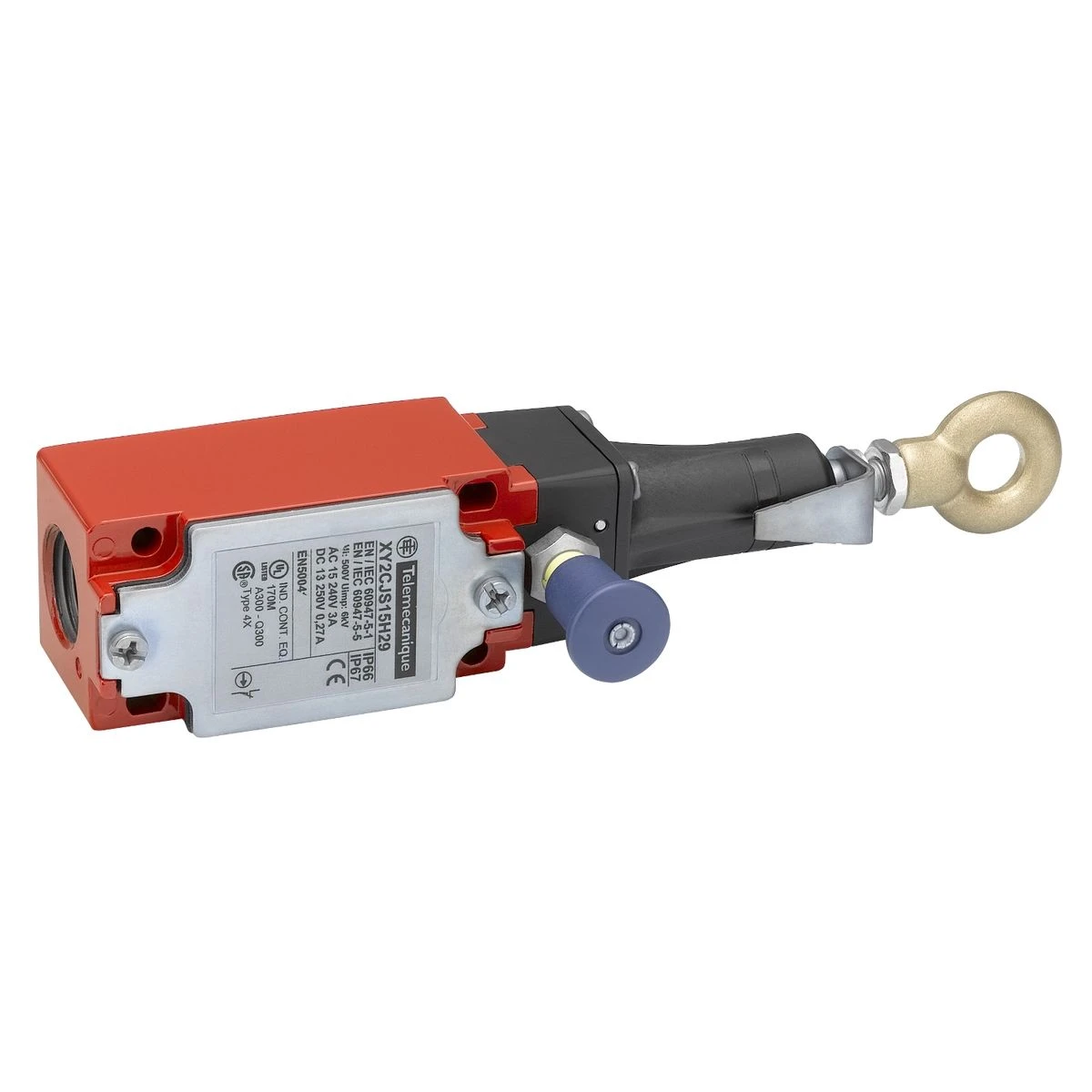

XY2CJS19 - Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CJ, straight, 2NC+1 NO, Pg13.5 - Schneider Electric

Pending restock EAN: 3389119619547
XY2CJS19 - Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CJ, straight, 2NC+1 NO, Pg13.5 - Schneider Electric - Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CJ, straight, 2NC+1 NO, Pg13.5 - Schneider Electric - 0
EAN: 3389119619547
XY2CJS19 - Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CJ, straight, 2NC+1 NO, Pg13.5 - Schneider Electric
44,86 € excl. VAT
55,62 € incl. VAT
Text About:
Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CJ, straight, 2NC+1 NO, Pg13.5 - Schneider Electric
55,62 €
SPECIFICATIONS
Main
product range Arrêt d'urgence à câble Telemecanique XY2C
[ithe] thermal current under enclosure 6 A
reliability data B10d = 500000 valeur pour une durée de vie de 20 ans limitée par l'usure ou le contact se conformer à CEI 60947-5-5
name of the device XY2C
type of product or equipment Verrouillage de l'arrêt d'urgence à câble
[ui] rated insulation voltage 400 V (degré de pollution 3) se conformer à EN/CEI 60947-1
300 V se conformer à UL 508
300 V se conformer à CSA C22.2 No 14
security level Jusqu'à PL = e avec système de surveillance approprié et câblage correct se conformer à EN/ISO 13849-1
Jusqu'à catégorie 4 avec système de surveillance approprié et câblage correct se conformer à EN/ISO 13849-1
Jusqu'à SIL 3 avec système de surveillance approprié et câblage correct se conformer à EN/CEI 61508
reset En tirant sur le bouton
Complementary
[ie] rated operational current 0,1 A à 250 V, DC-13, R300 se conformer à EN/CEI 60947-5-1 appendix A
1,5 A à 240 V, AC-15, B300 se conformer à EN/CEI 60947-5-1 appendix A
compatibility code XY2CJ
contact description 2 "O" + 1 "F"
number of cables 1
number of cable entries 1 entrée taraudé pour PG13,5 presse étoupe
tightening torque 0,8…1,2 N.m
[uimp] rated impulse withstand voltage 4 kV se conformer à EN/CEI 60947-1
product weight 0,455 kg
description of iso n°1 terminals (31-32)NC
(21-22)NC
(13-14)NON
marking CE
Housing colour Rouge RAL 3000
connection mode Borniers à vis-étrier, 1 x 0,34…1 x 1 mm²
Borniers à vis-étrier, 1 x 0,34…2 x 0,75 mm²
contact operation À action dépendante
distance between cable supports 5 m
body material Zamak
mechanical endurance 100000 cycle
Local signalling Indicateur de couleur
maximum trip cable length 20 m
head material Polyamide
cover material Acier galvanisé
positive aperture Avec se conformer à EN/CEI 60947-5-1
trigger cable anchor point Côté droite ou gauche
maximum resistance between terminals 25 MΩ se conformer à EN/CEI 60255-7 catégorie 3
25 MΩ se conformer à NF C 93-050 méthode A
short circuit protection 6 A cartouche fusible type gG se conformer à EN/CEI 60269
Environment
ip degree of protection IP66 se conformer à CEI 60529
IP67 se conformer à CEI 60529
product certificates UL dispositifs d'arrêt d'urgence catégorie NISD
CSA
CCC
EAC
operating ambient temperature -25…70 °C
overvoltage category Classe I se conformer à EN/CEI 61140
standards Directive machine 2006/42/EC
UL 508
EN/CEI 60947-5-1
EN/ISO 13850
EN/CEI 60204-1
CSA C22.2 No 14
Directive sur les équipements de travail 2009/104 / CE
EN/CEI 60947-5-5
storage room temperature -40…70 °C
mechanical shock resistance 50 gn 11 ms se conformer à EN/CEI 60068-2-27
vibration resistance 10 gn (f= 10…150 Hz) se conformer à EN/CEI 60068-2-6
protective treatment TC
About this product

The XY2CJS19 - Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CJ, straight, 2NC+1 NO, Pg13.5 is devised to cater to the prerequisites of professional buyers, such as switchboard fabricators, wiremen, service providers, and industry fabricators. XY2CJS19 presents excellent capability and merit for engineers in the electrotechnical industry. This Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CJ, straight, 2NC+1 NO, Pg13.5 and other Preventa XY2C from Schneider Electric can be obtained at the most affordable rate and shipment duration through BALTELEC online store, a credible reseller supporting technicians in their gathering needs.

Technicians who have adopted Schneider Electric Preventa XY2C have steadily applauded the producer's durability. It has been noted that the superlative workmanship of XY2CJS19 - Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CJ, straight, 2NC+1 NO, Pg13.5 extends to a multitude of implementations. Its first-rate components make it optimal for different applications. Your developed solution will excel in quality, energy-efficiency and price.

BaltElec commits in accommodating industrial and tertiary professionals’ needs. We grasp the unique expectations and desires of our clients in the industry. By aligning with BALTELEC, your company acquire access to the premier price and supply timeline of superior products like XY2CJS19 - Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CJ, straight, 2NC+1 NO, Pg13.5 from Schneider Electric at a value-for-money price. Authorized buyers receive exclusive discounts and expedited requests handling.

Act now and secure XY2CJS19 - Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CJ, straight, 2NC+1 NO, Pg13.5 at our dependable and efficient web store. Don't delay in making this savvy move that validates the supreme quality and adheres to the targeted requests of buyers like you.

If you possess any queries or concerns about XY2CJS19 - Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CJ, straight, 2NC+1 NO, Pg13.5 or any other Schneider Electric products, email us or refer to our Frequently Asked Questions section below. We have gathered answers to habitual matters to advise you further in making an informed decision about industrial and tertiary electrical components.

Remember, XY2CJS19 - Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CJ, straight, 2NC+1 NO, Pg13.5 from Schneider Electric is dependable, economical, and high-quality to other brands in the Preventa XY2C category. Make it a part of your apparatus immediately. Buy at Baltelec e-shop, your respected merchant for all your Schneider Electric.

In our Baltelec.eu electronic store you will come across Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CJ, straight, 2NC+1 NO, Pg13.5 - XY2CJS19 worth 54.72 €, which will be a reliable and state-of-the-art solution for your wishes. This commodity is produced by the Schneider Electric brand using the newest technologies and complies with the top standards of well-being and capacity. We give merchandise from the Preventa XY2C category that blend endurance and workability, which is an superb choice for various intents. Notwithstanding of whether you want devices for small assembly or for specialized industrial implementation, Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CJ, straight, 2NC+1 NO, Pg13.5 will be a secure companion in your endeavor.

Baltelec labors to make the obtaining process as comfortable and fast as attainable for our clients. We offer detailed portrayals and high-quality snapshots of Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CJ, straight, 2NC+1 NO, Pg13.5 so that you can make an briefed choice. A team of professionals is always ready to help you with any doubts in the Preventa XY2C section linked to the nomination and use of supplies. We are convinced that Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CJ, straight, 2NC+1 NO, Pg13.5 will meet your anticipations and become an vital element of your equipment for just 54.72 €.

Popular Questions about Schneider Electric Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CJ, straight, 2NC+1 NO, Pg13.5:
