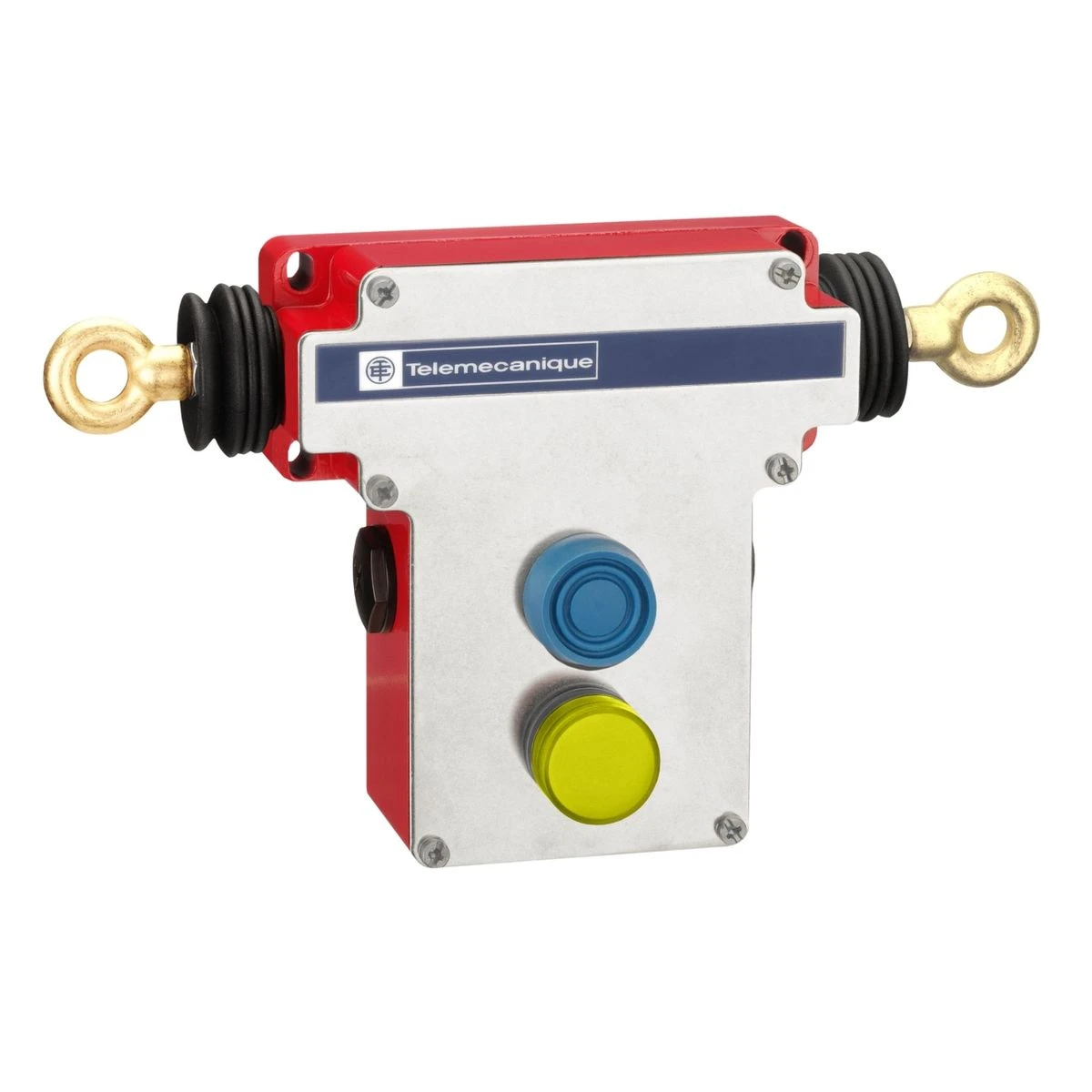

XY2CEDC297 - Dual emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e 2x(1NC+1NO), Pg13.5, boot. pb, pilot light - Schneider Electric

Expected in 2-4 weeks

413,66 € excl. VAT

504,66 € incl. VAT

Text About:

Dual emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e 2x(1NC+1NO), Pg13.5, boot. pb, pilot light - Schneider Electric

In cart

504,66 €

SPECIFICATIONS

Main

Device short name XY2CED

[ithe] thermal current under enclosure 10 A

[ui] rated insulation voltage 500 V (pollution degree 3) conforming to EN/IEC 60947-1
300 V conforming to UL 508
300 V conforming to CSA C22.2 No 14

reset By booted push-button

Complementary

[ie] rated operational current 3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1 appendix A
0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A

Cable entry number 3 plain hole for Pg 13.5 or ISO M20 cable gland

compatibility code XY2CED

number of cables 2

Product certifications UL category NISD emergency stop devices
CSA
CCC
EAC

Product or component type Dual emergency stop rope pull switch

tightening torque 0.8…1.2 N.m

[uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-1

Connections - terminals Screw clamp terminal, 1 x 0.5...2 x 1.5 mm²

marking CE

Bellow material Silicone

Housing colour Red RAL 3000

contact operation Slow-break

Contacts type and composition 2 x (1 NC + 1 NO)

distance between cable supports 3…5 m

safety reliability data B10d = 300000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear

body material Zamak

Local signalling With pilot light, yellow, 230 V

Net weight 1.9 kg

cover material Stainless steel

mechanical durability 60000 cycles

Positive opening With conforming to EN/IEC 60947-5-1

Maximum resistance across terminals 25 MOhm conforming to EN/IEC 60255-7 category 3

trigger cable anchor point RH and LH sides

Shock resistance 50 gn 11 ms conforming to EN/IEC 60068-2-27

Safety level Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1
Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1
Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508

Trigger cable maximum length 2 x 100 m

Short-circuit protection 10 A cartridge fuse type gG conforming to EN/IEC 60269

Terminals description iso n°1 (13-14)NON !@ !(21-22)NC

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP66 conforming to IEC 60529

Range of product Telemecanique Emergency stop rope pull switches XY2C

ambient air temperature for operation -40…70 °C

overvoltage category Class I conforming to EN/IEC 61140

standards EN/ISO 13850
Work equipment directive 2009/104/EC
Machinery directive 2006/42/EC
EN/IEC 60947-5-1
CSA C22.2 No 14
EN/IEC 60204-1
EN/IEC 60947-5-5
UL 508

vibration resistance 10 gn (f= 10…300 Hz) conforming to EN/IEC 60068-2-6

protective treatment TC
