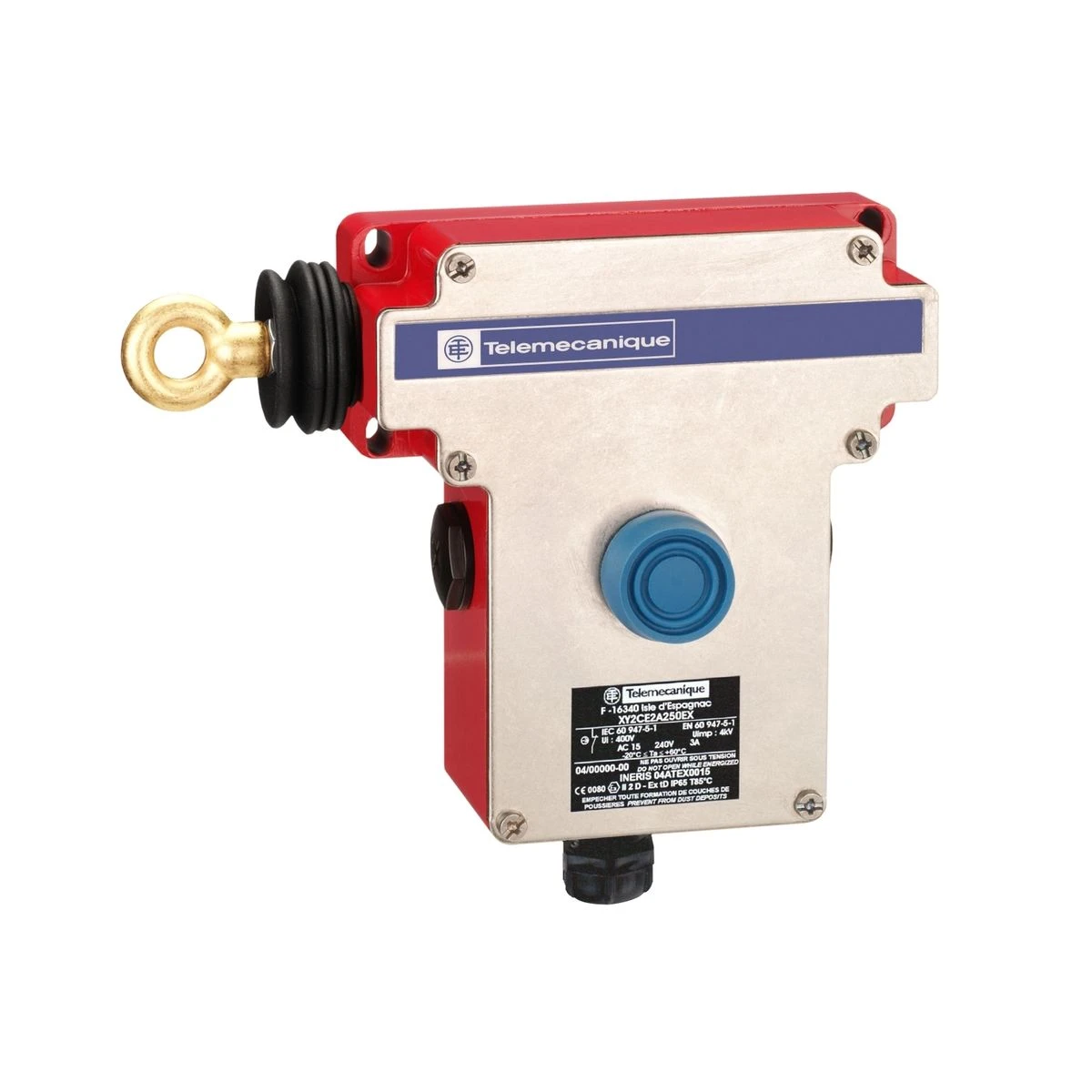

XY2CE2A270EX - Latching emergency stop trip wire switch, Telemecanique Emergency stop rope pull switches XY2C, rope pull e XY2CE, LH side -2NC, booted pushbutton - Schneider Electric

Expected in 2-4 weeks

426,21 € excl. VAT

519,97 € incl. VAT

Text About:

Latching emergency stop trip wire switch, Telemecanique Emergency stop rope pull switches XY2C, rope pull e XY2CE, LH side -2NC, booted pushbutton - Schneider Electric

In cart

519,97 €

SPECIFICATIONS

Main

Device short name XY2CE

[ithe] thermal current under enclosure 10 A

[ui] rated insulation voltage 400 V (pollution degree 3) conforming to EN/IEC 60947-1
300 V conforming to UL 508
300 V conforming to CSA C22.2 No 14

reset By booted push-button

Complementary

[ie] rated operational current 3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1 appendix A
0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A

Cable entry number 1 plain hole for ISO M20 cable gland
2 plain hole with blanking plug for

number of cables 1

Product certifications INERIS 04ATEX0015
IEC-Ex INE 16.0001X

Auxiliary contacts operation Slow-break

Handle front plate colour 142 mm

Product or component type Latching emergency stop trip wire switch

tightening torque 0.8…1.2 N.m

[uimp] rated impulse withstand voltage 4 kV

Connections - terminals Screw clamp terminal, 1 x 0.5...2 x 1.5 mm²

marking II2 D-Ex tb IIIC T85°C Db IP65

Housing colour Red RAL 3000

Contacts type and composition 2 NC

distance between cable supports 10 m

Electrical shock protection class Class I conforming to EN/IEC 61140
Class I conforming to NF C 20-030

safety reliability data B10d = 300000 value given for a life time of 20 years limited by mechanical or contact wear

width (w) 195 mm

Local signalling Without pilot light

depth 105 mm

mechanical durability 60000 cycles

Positive opening With conforming to EN/IEC 60947-5-1 section 3

Maximum resistance across terminals 25 MOhm conforming to EN/IEC 60255-7 category 3
25 MOhm conforming to NF C 93-050 method A

trigger cable anchor point LH side

Shock resistance 50 gn 11 ms conforming to EN/IEC 60068-2-27

Safety level Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1
Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1
Can reach SIL 3 conforming to EN/IEC 61508

Trigger cable maximum length 70 m

Short-circuit protection 10 A cartridge fuse type gG conforming to EN/IEC 60269

Environment

Ambient air temp for storage/transportation -40…70 °C

Directives 2014/34/EU - ATEX directive

ip degree of protection IP65

Range of product Telemecanique Emergency stop rope pull switches XY2C

ambient air temperature for operation -20…60 °C

Dust zone Zone 21 - 22

standards EN/IEC 60079-0
EN/IEC 60079-31

vibration resistance 10 gn (f= 10…300 Hz) conforming to EN/IEC 60068-2-6

protective treatment TC
