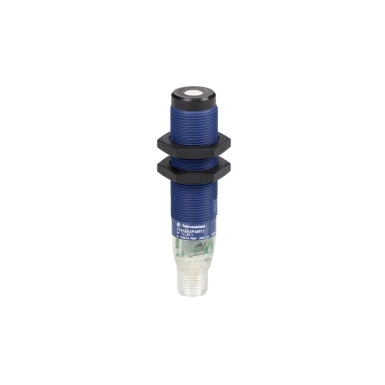

XX918A3F1M12 - Ultrasonic sensors XX, ultrasonic sensor cylindrical M18, Sn 0.5 m, 0...10 V, M12 connector - Schneider Electric

Expected in 2-4 weeks

XX918A3F1M12 - Ultrasonic sensors XX, ultrasonic sensor cylindrical M18, Sn 0.5 m, 0...10 V, M12 connector - Schneider Electric

233,44 € excl. VAT

284,79 € incl. VAT

Text About:

Ultrasonic sensors XX, ultrasonic sensor cylindrical M18, Sn 0.5 m, 0...10 V, M12 connector - Schneider Electric

In cart

284,79 €

SPECIFICATIONS

Main

[sd] sensing range 0.051…0.508 m

Series name General purpose

sensor name XX9

detection system Diffuse

Complementary

[sa] assured operating distance 0.051…0.508 m (teach mode)

[sn] nominal sensing distance 0.5 m adjustable with remote teach push-button

Product certifications UL
cCSAus

Handle front plate colour 18 mm

[us] rated supply voltage 12...24 V DC with reverse polarity protection

Analogue output function 0...10 V

Beam angle 6 °

Blind zone 0…51 mm

Current consumption 40 mA

maximum voltage drop 1 V

marking CE

Enclosure material Valox

transmission frequency 300 kHz

Material Plastic

width (w) 18 mm

Deviation angle from 90° of object to be detected -7…7 °

supply voltage limits 10…28 V DC

Net weight 0.033 kg

Maximum delay first up 100 ms

Maximum delay recovery 25 ms

depth 79 mm

Maximum delay response 25 ms

repeat accuracy 1.27 %

Front material Epoxy

thread type M18 x 1

electrical connection Male connector M12 4 pins

Maximum switching capacity >= 1 kOhm overload and short-circuit protection

Minimum size of detected object Cylinder diameter 1.6 mm

Sensor type Ultrasonic sensor

Resistance to electrostatic discharge 8 kV level 4 conforming to IEC 61000-4-2

Shock resistance 30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27

Setting-up Slope selection using teach button

Sensor design Cylindrical M18

Resistance to electromagnetic fields 10 V/m level 3 conforming to IEC 61000-4-3

Status led Setting-up assistance: 1 LED (dual colour)
Supply on: 1 LED (green)
Output state: 1 LED (yellow)

Threaded length 43 mm

Wiring technique 4-wire

Type of output signal Analogue

Environment

Ambient air temp for storage/transportation -40…80 °C

ip degree of protection IP67 conforming to IEC 60529

Range of product Telemecanique Ultrasonic sensors XX

ambient air temperature for operation -20…65 °C

standards IEC 60947-5-2

vibration resistance +/-1 mm conforming to IEC 60068-2-6 (f = 10…55 Hz)

resistance to fast transients 1 kV level 3 conforming to IEC 61000-4-4
