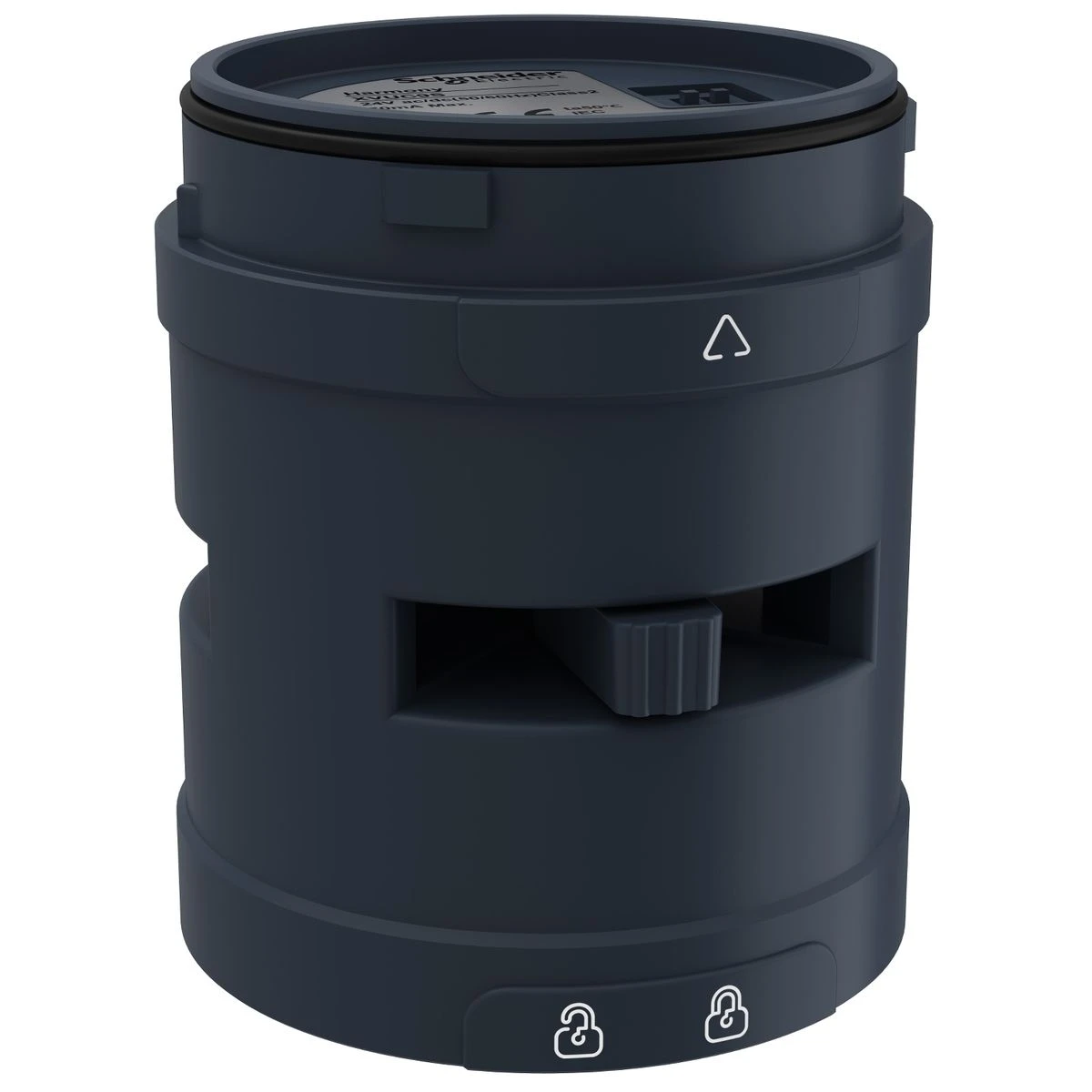

XVUC9S - Harmony XVU, Audible unit, black, ?60, buzzer, 24 V AC/DC - Schneider Electric
Expected in 2-4 weeks
33,42 €
Text About:
Harmony XVU, Audible unit, black, ?60, buzzer, 24 V AC/DC - Schneider Electric
SPECIFICATIONS
Main
Beacon or indicator bank unit type
Buzzer unit
component name
XVU
Complementary
Acoustic level
85 dB at 1 m
length [l]
58 mm
Product certifications
UL
CE
CSA
CE
CSA
mounting diameter
60 mm
Product or component type
Modular tower light
[us] rated supply voltage
24 V AC/DC
Assembly style
Customer assembly
Current consumption
<= 70 mA
Localisation on device
Top
Housing colour
Black
maximum power dissipation in w
1.7 W
Material
PBT (polybutylene terephthalate) V-0 conforming to UL 94
ABS (acrylonitrile butadiene-styrene) V-0 conforming to UL 94
PC (polycarbonate) V-0 conforming to UL 94
ABS (acrylonitrile butadiene-styrene) V-0 conforming to UL 94
PC (polycarbonate) V-0 conforming to UL 94
Signalling type
Continuous or intermittent buzzer
Net weight
0.077 kg
Sound frequency
2635 Hz
Environment
Ambient air temp for storage/transportation
-40…70 °C
ip degree of protection
IP54
Range of product
Harmony XVU
ambient air temperature for operation
-25…50 °C
