Main

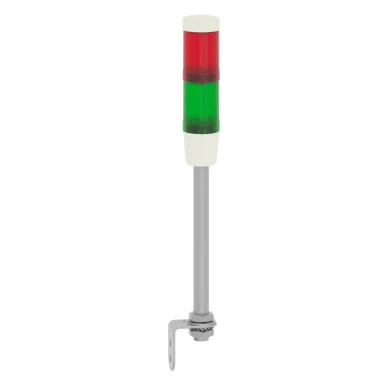

Beacon or indicator bank unit type
2 illuminated units
Indicator bank base type
Base with integrated buzzer
[ui] rated insulation voltage
250 V conforming to IEC 60947-1
component name
XVM
Complementary
Kit composition
Aluminium support tube
Cover
Plastic fixing plate
Base unit
Product certifications
CCC
fundamental frequency
4 kHz
mounting diameter
45 mm
Product or component type
Pre-assembled and pre-cabled indicator bank
[uimp] rated impulse withstand voltage
4 kV conforming to IEC 60947-1
[us] rated supply voltage
24 V AC/DC
Current consumption
15 mA on base unit
43 mA on steady LED unit
Connections - terminals
Flying leads,clamping capacity: 1 x 0.325 mm² (AWG 22)
noise level
0…80 dB at 1 m
marking
CE
Light block colour
Red/green
Mounting mode
Vertical
Net weight
0.404 kg
Mounting support
Aluminium tube
Nominal voltage limit
0.85...1.1 Un conforming to IEC 60947-5-1
light source
Green super bright LED with BA 15d base steady signalling
Red super bright LED with BA 15d base steady signalling
Environment
Ambient air temp for storage/transportation
-25…70 °C
ip degree of protection
IP42 vertical position conforming to IEC 60529
Range of product
Harmony XVM
ambient air temperature for operation
-10…50 °C
overvoltage category
Class I conforming to IEC 60947-1
Class I conforming to IEC 60947-5-1
Class I conforming to IEC 61140
standards
EN/IEC 60947-1
EN/IEC 60947-5-1
protective treatment
TC
