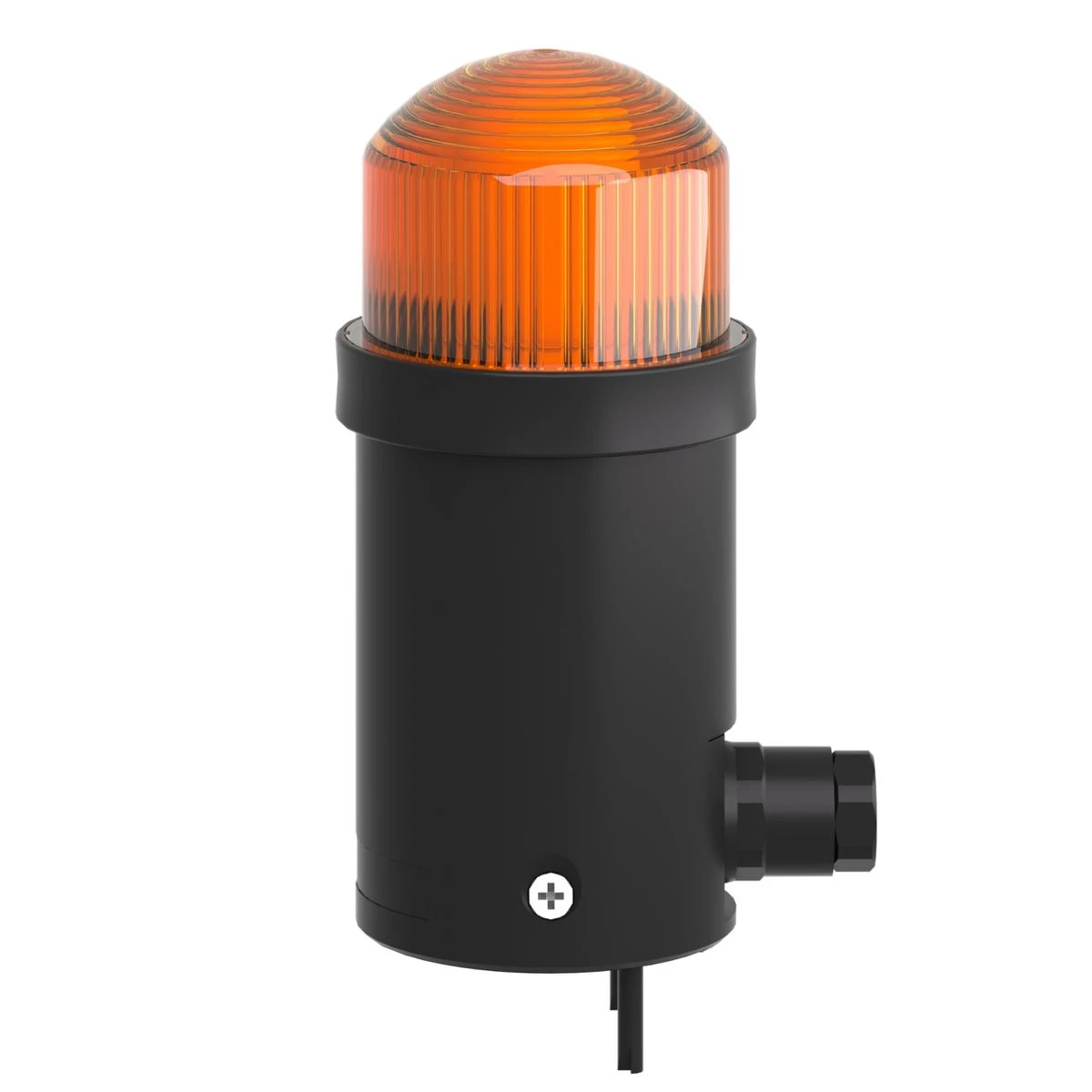

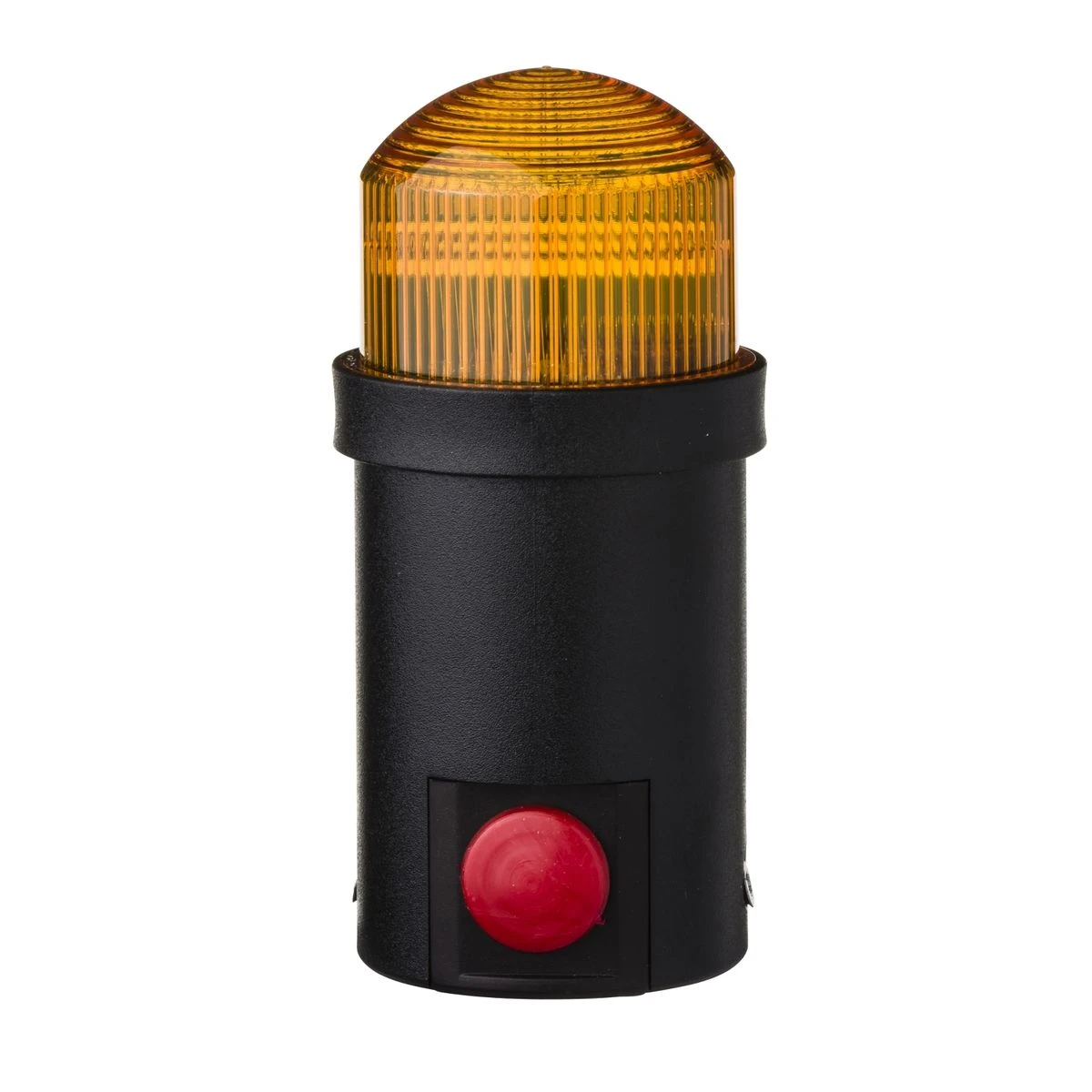

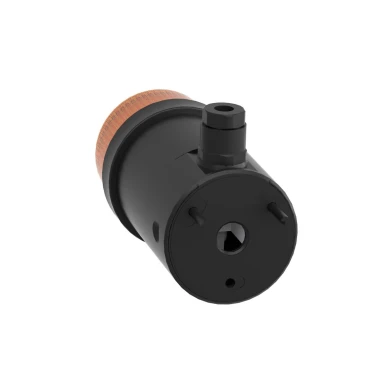

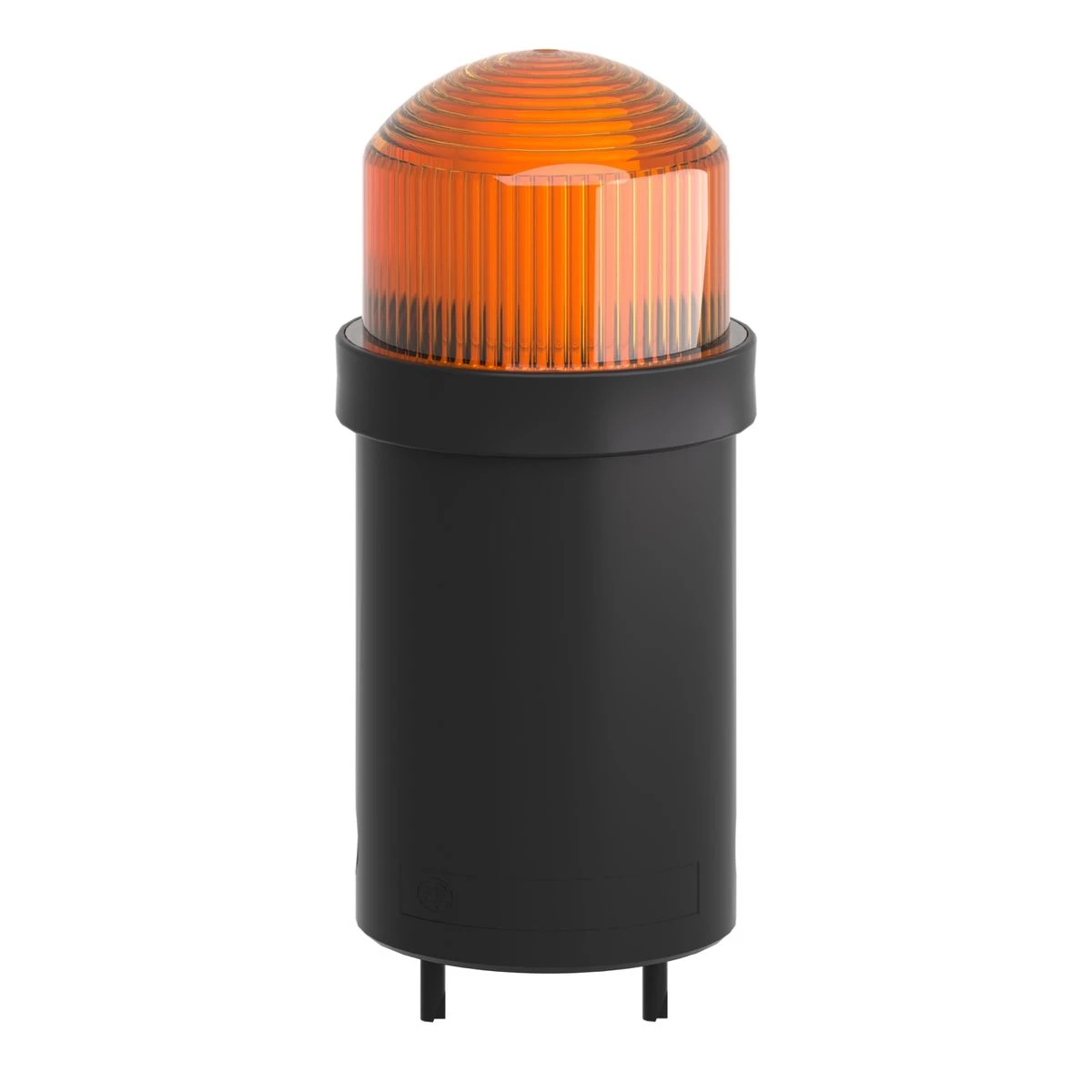

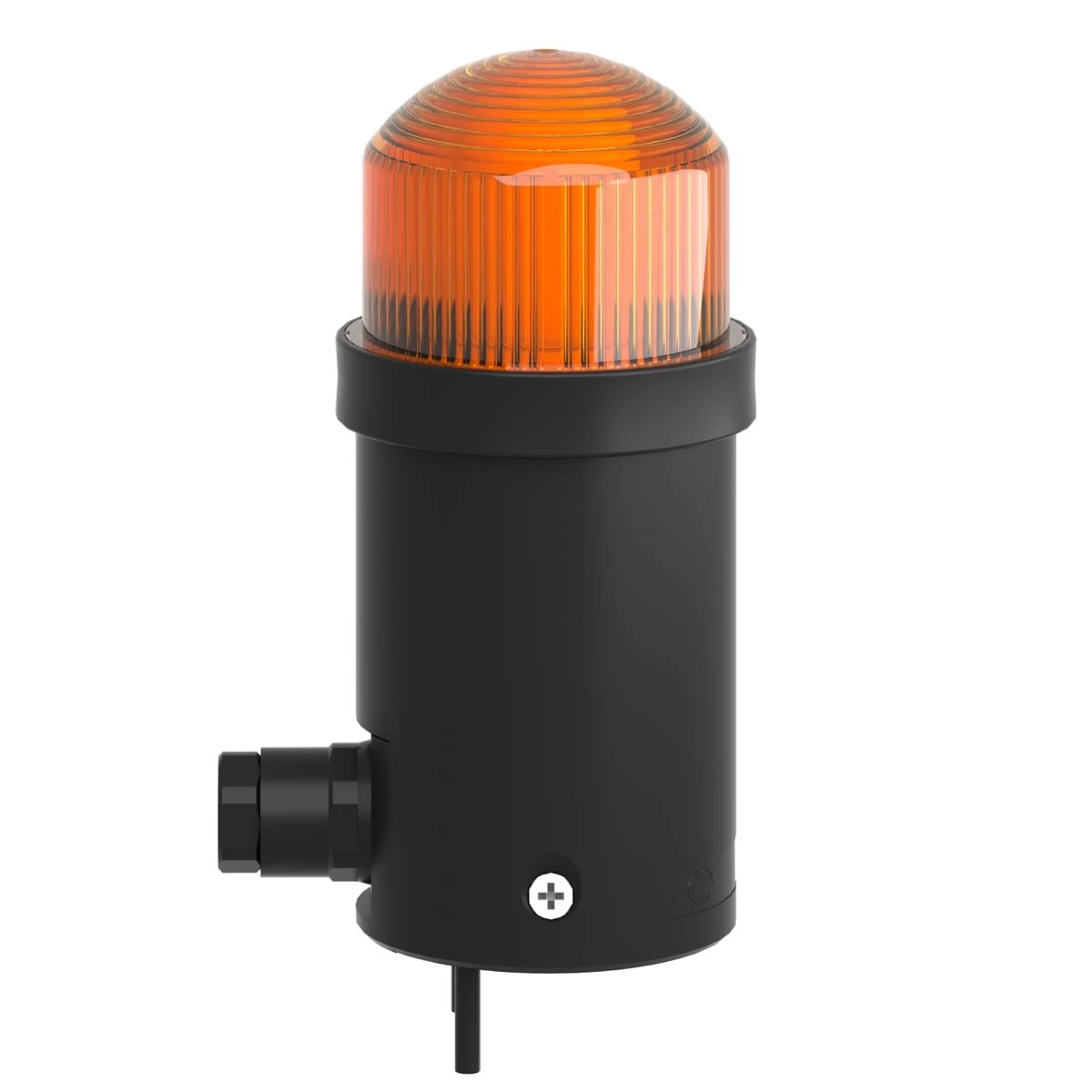

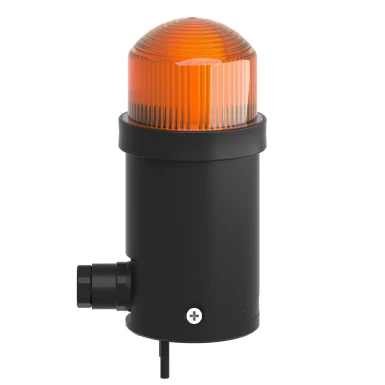

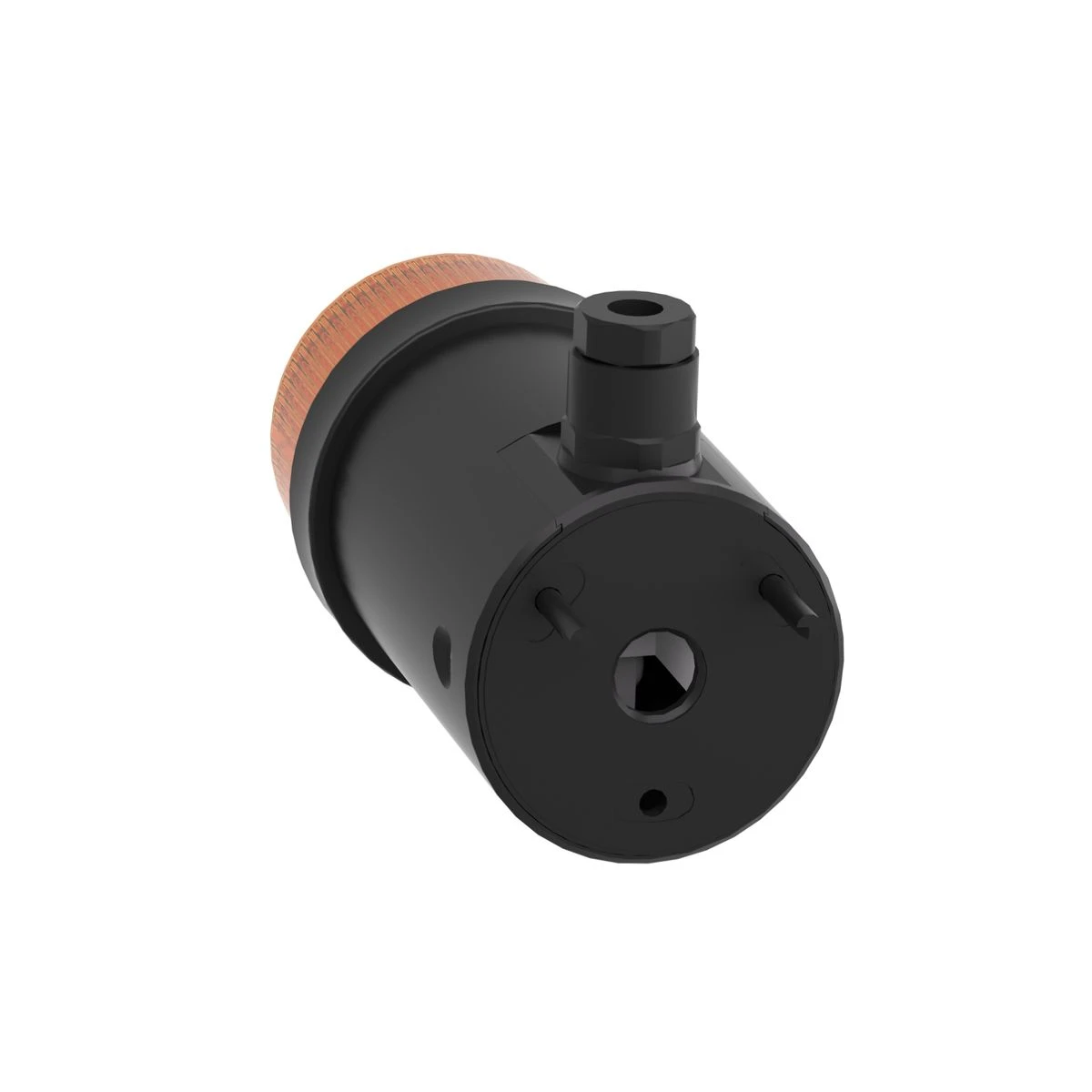

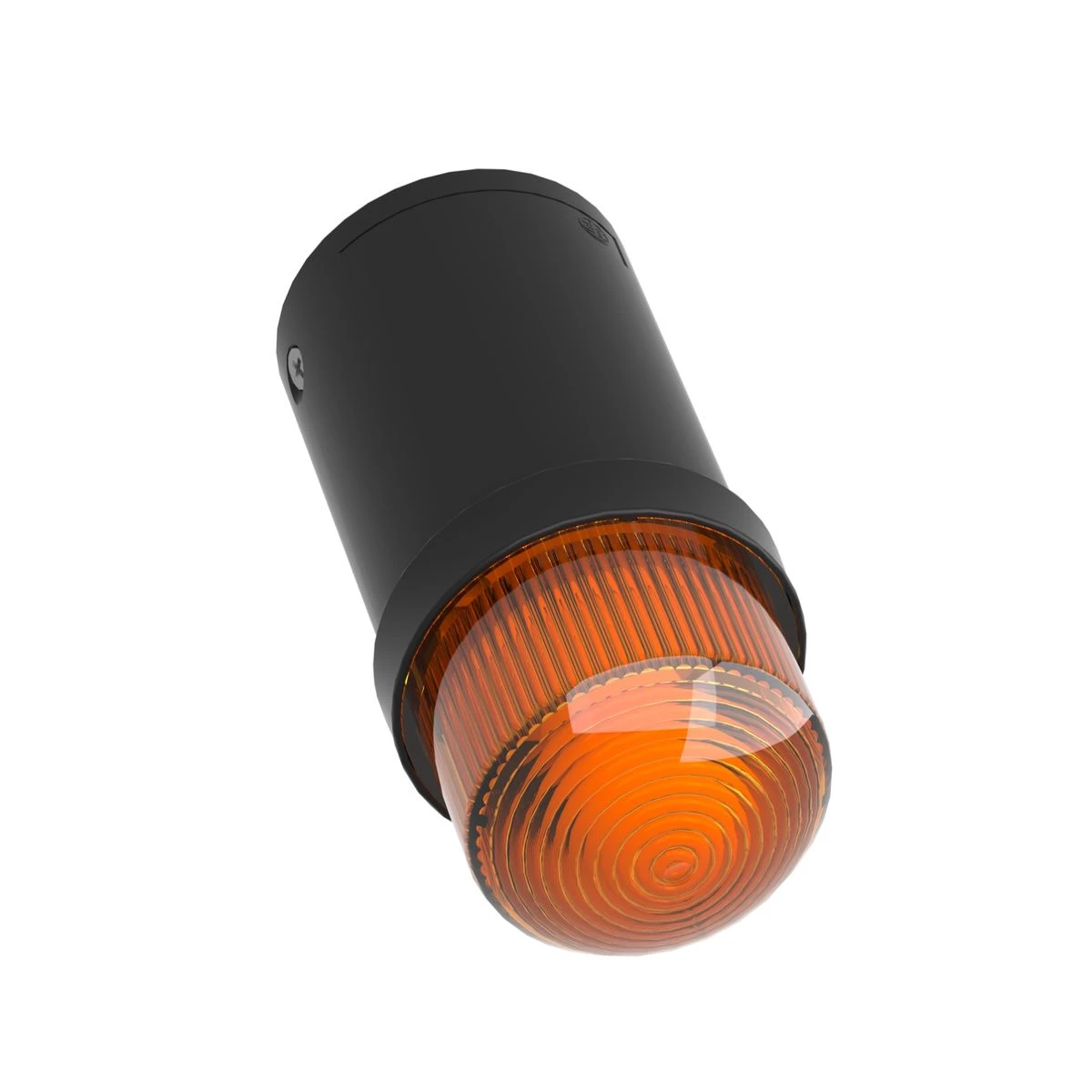

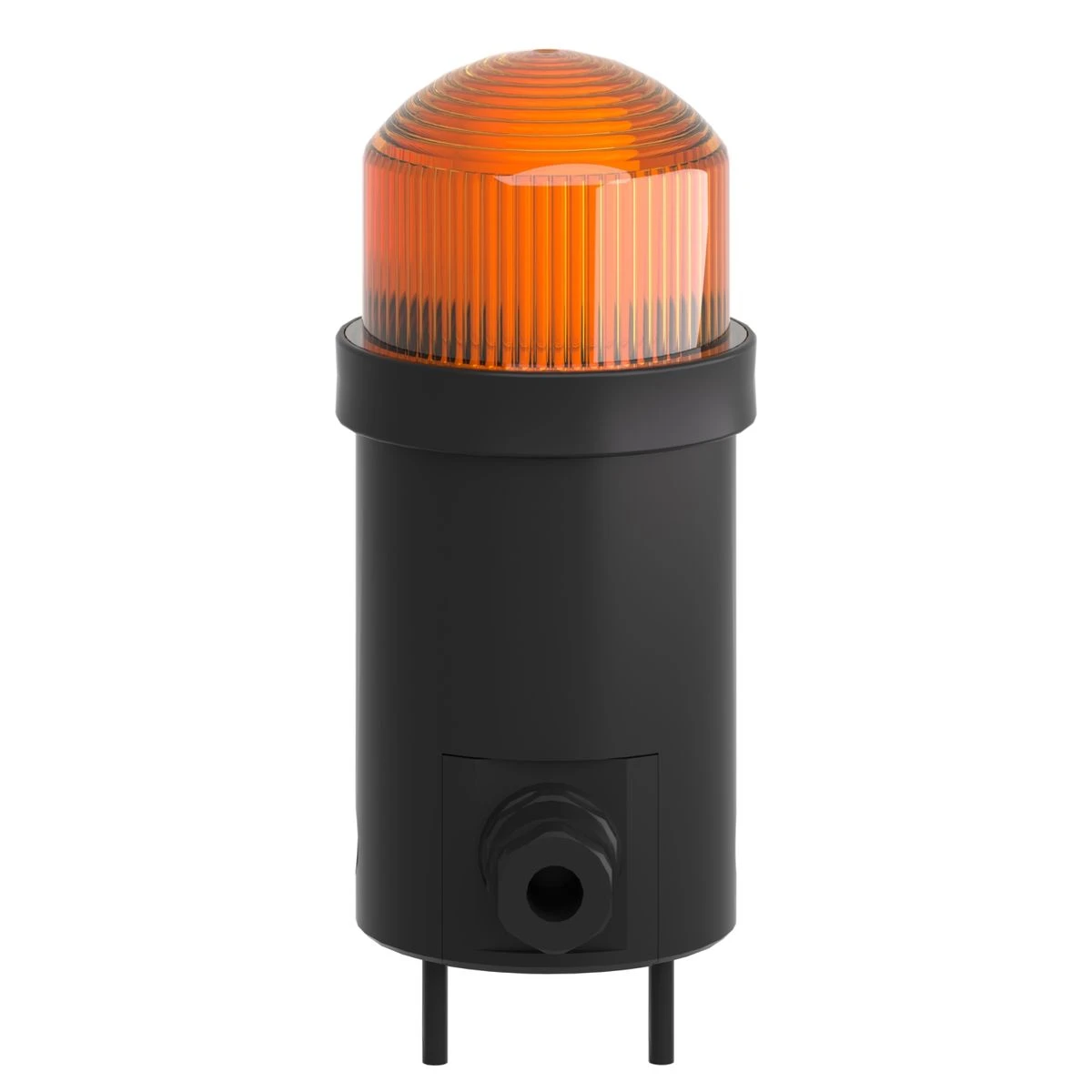

XVDLS6B5 - Harmony XVDLS, Monolithic tower light, plastic, orange, Ш45, flashing, integral flash discharge tube 1 joule, 24 V AC/DC - Schneider Electric

Expected in 2-4 weeks

XVDLS6B5 - Harmony XVDLS, Monolithic tower light, plastic, orange, Ш45, flashing, integral flash discharge tube 1 joule, 24 V AC/DC - Schneider Electric

340,18 €

Text About:

Harmony XVDLS, Monolithic tower light, plastic, orange, Ш45, flashing, integral flash discharge tube 1 joule, 24 V AC/DC - Schneider Electric

In cart

340,18 €

SPECIFICATIONS

Main

Beacon or indicator bank unit type Base unit direct fixing
Illuminated unit

flash energy 1 J

[ui] rated insulation voltage 250 V conforming to IEC 60947-1

component name XVDLS

Complementary

Bulb type Flash discharge tube

Product certifications CSA
UL

mounting diameter 45 mm

Product or component type Complete miniature beacon

[uimp] rated impulse withstand voltage 4 kV conforming to IEC 60947-1

[us] rated supply voltage 24 V AC/DC

Current consumption < 145 mA DC
< 90 mA AC

cable entry 1 entry tapped for Pg 7

Connections - terminals Screw clamp terminals, <= 1 x 1.5 mm² with cable end

Cad overall depth 45 mm

Cad overall height 104 mm

Electrical shock protection class Class II conforming to IEC 60536

Cad overall width 45 mm

Material Glass reinforced polyamide: base unit
Polycarbonate: illuminated unit

Signalling type Flashing

Net weight 0.085 kg

light source Integral flash discharge tube, orange

Terminals description iso n°1 (GND)GROUND
(COM-1)PW

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP40 conforming to IEC 60529

Range of product Harmony XVD Optimum

ambient air temperature for operation -10…50 °C

standards EN/IEC 60947-5-1

protective treatment TC
