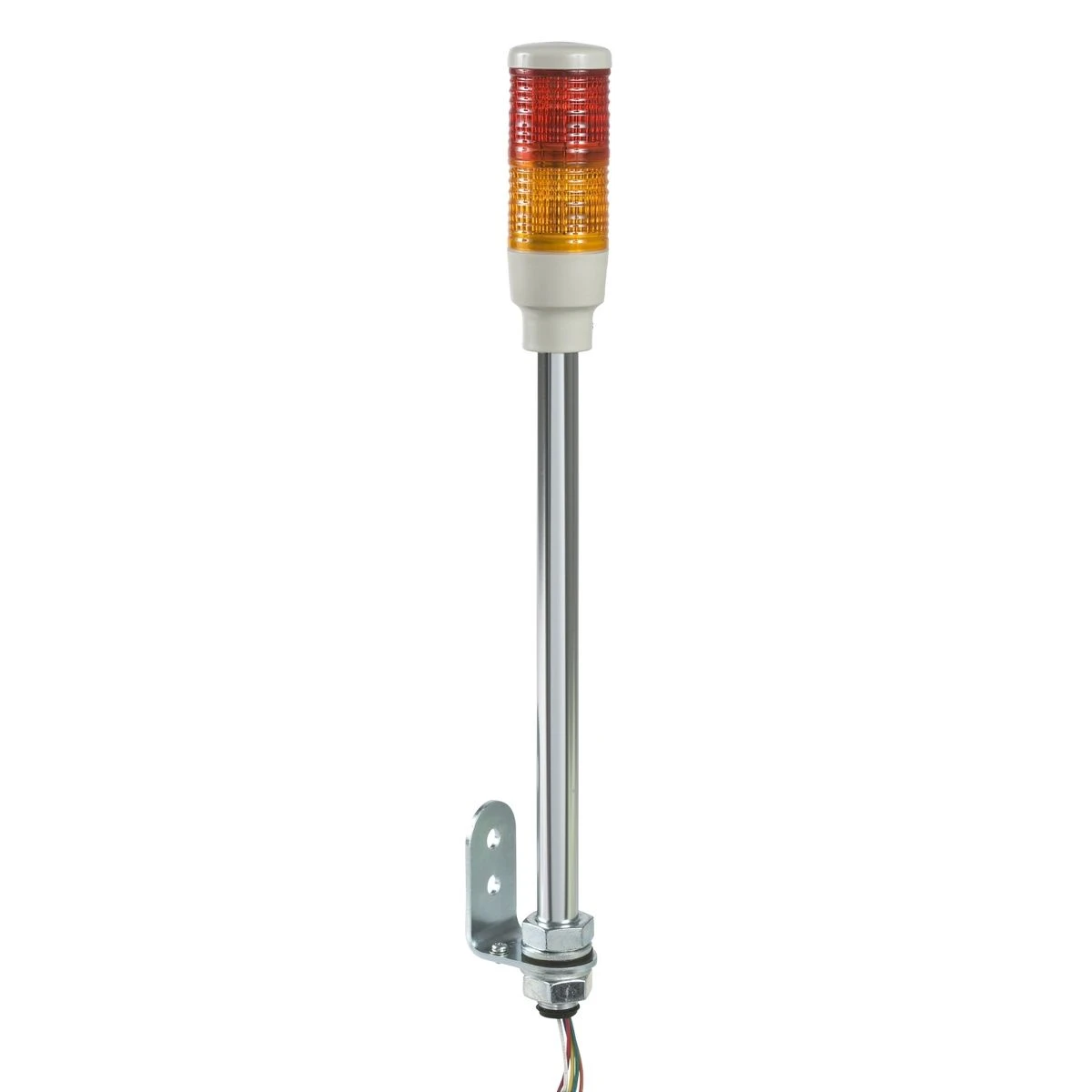

XVC4M2 - Harmony XVC, Monolithic precabled tower light, plastic, red orange, Ш40, tube mounting, steady, IP23, 100...240 V AC - Schneider Electric

Expected in 2-4 weeks

222,59 € excl. VAT

271,56 € incl. VAT

Text About:

Harmony XVC, Monolithic precabled tower light, plastic, red orange, Ш40, tube mounting, steady, IP23, 100...240 V AC - Schneider Electric

In cart

271,56 €

SPECIFICATIONS

Main

Beacon or indicator bank unit type 2 illuminated units

Device short name XVC

Sound signalling Without

cable length 450 mm

component name XVC

Complementary

Cable cross section 0.83 mm²
0.33 mm²

Product certifications UL

Handle front plate colour 602.2 mm

mounting diameter 40 mm

Product or component type Complete pre-wired monolithic tower light

[uimp] rated impulse withstand voltage 4 kV

[us] rated supply voltage 100...240 V

awg gauge AWG 22
AWG 18

Current consumption 45 mA

mounting location On support tube, 17 mm

Product mounting On support tube, 17 mm

marking CE

Electrical shock protection class Class I conforming to EN/IEC 61140

Material Polycarbonate: illuminated unit
ABS (acrylonitrile butadiene-styrene): base unit
PBT + ABS (UL94-V0): top cover
SGP (chromium-plated): support tube

Net weight 0.75 kg

light source LED steady red
LED steady orange

Supply circuit type AC

Environment

Ambient air temp for storage/transportation -35…70 °C

ip degree of protection IP23 vertical surface installation conforming to EN/IEC 60529

Range of product Harmony XVC4

ambient air temperature for operation -10…50 °C

overvoltage category Class I conforming to EN/IEC 61140

standards EN/IEC 60947-5-1
EN/IEC 60947-1

protective treatment TC
